Stainless Steel Load Rated Screw Collar Pin Bow Shackle

by GT
£9.58

SKU :286-1202-1

W.L.L.

Stainless Steel Load Rated Screw Collar Pin Bow Shackle - SSLRSCBS

  • AISI 316 stainless steel.
  • Polished finish.
  • Marked with CE, W.L.L, size and traceability code.
  • Certification available



    Spec

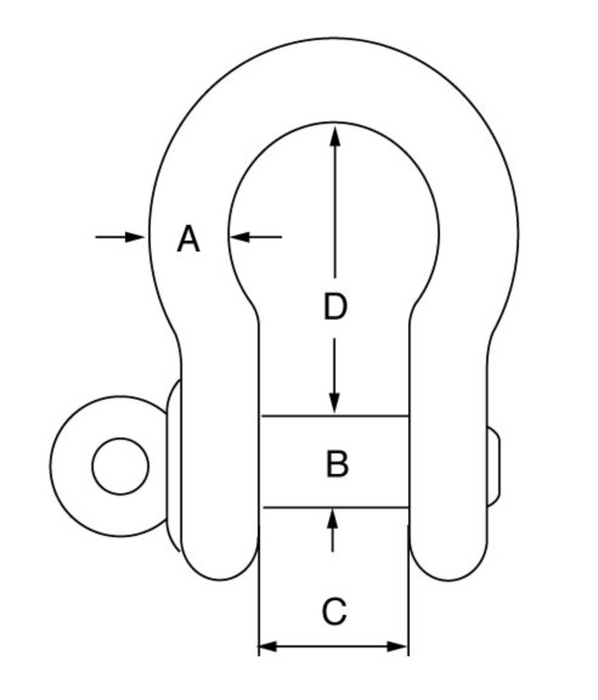

    SKU Product Code W.L.L. A B C D Weight
    t inch inch mm mm kgs
    286-1202-1 SSLRSCBS0.33 0.33 3/16 1/4 9.6 22.4 0.02
    286-1202-2 SSLRSCBS0.5 0.5 1/4 5/16 11.9 28.7 0.04
    286-1202-3 SSLRSCBS0.75 0.75 5/16 3/8 13.5 31 0.07
    286-1202-3 SSLRSCBS1 1 3/8 7/16 16.8 36.6 0.13
    286-1202-4 SSLRSCBS2 2 1/2 5/8 20.6 47.8 0.28
    286-1202-5 SSLRSCBS3 3 5/8 3/4 26.9 60.5 0.55

    Downloads

      Duct rod data sheetProduct data sheet
