Goliath - N Range of Pulling Winches with Ratchet

by Goliath
SKU 151-9-1
Availability:
28 in stock, ready to be shipped
Availability:
7 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
3 in stock, ready to be shipped
Availability:
3 in stock, ready to be shipped
Availability:
3 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Original price £38.40 - Original price £408.00
Original price
£38.40
£38.40 - £408.00
Current price £38.40

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Goliath N Range Pulling Winch 470kg to 2741kg

The Goliath N range is a multi-model ratchet pulling winch series for wire rope, spanning 470kg to 2741kg across seven models from the 3N1 to the 25N3F.

Not CE Marked and No Safety Brake

These winches are for pulling only. They are not designed to EC standard, cannot be labelled CE, do not come with a safety brake, and must not be used for lifting or moving people. Any load must be independently secured while operating.

  • Pulling capacity from 470kg to 2741kg across seven models

  • Reversible ratchet with 3 positions (2 positions on the 3N1)

  • 1 to 3 speeds depending on model; zinc plated finish

  • Fixed handle on smaller models, removable on 16N2, 16N2F and 25N3F

  • Speed reducing brake available on the 16N2F and 25N3F

  • Supplied without wire rope; column, base or wall mounted with an optional wall mounting plate

Browse the full N range or other pulling winches.

These winches are designed for use with wire rope, which is not included as standard but can be purchased as an optional extra.

*Important note for all users / purchasers :

These winches are neither designed according to EC standard nor for the transport of people or for lifting applications and must not be used for such purposes.
When in operation DO NOT reverse or change the ratchet position until the load has been secured safely.
Do not come with safety brake.
Like any other ratchet winch on the market, the N series cannot be labelled CE.
Attention: any pulled or lifted load must be secured by another device while operating (except on a horizontal surface).

Spec

**Warning: These winches are not designed according to EC standard
Do not come with safety brake

Pulling Capacity

Reduction Ratio

Maximum Cable 1 Ø (mm) / length (m)
Model SKU Handle Brake

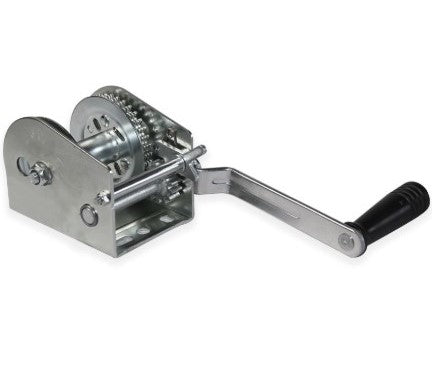

Goliath 3N1 151-9-1 470kg Fixed No
ø3/22m

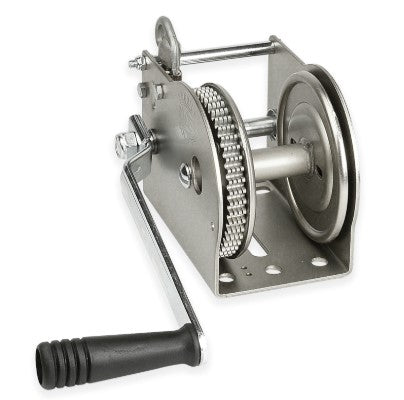

Goliath 5N1 151-9-2 596kg Fixed No
ø5/17m

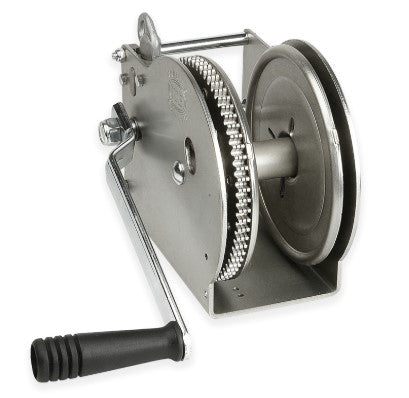

Goliath 7N1 151-9-3 723kg Fixed No
ø5/32m

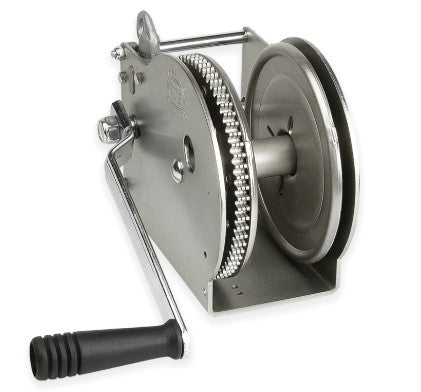

Goliath 9N1 151-9-4 894kg Fixed No
ø6/21m

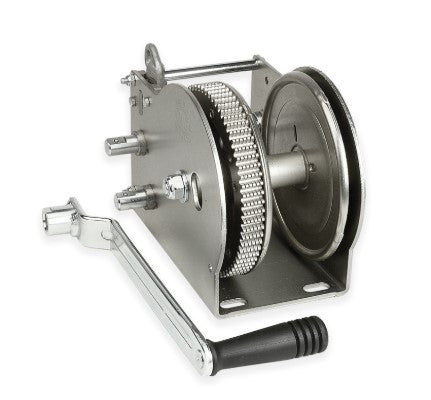

Goliath 16N2F 151-9-5 1556kg Removable No
ø7/14m

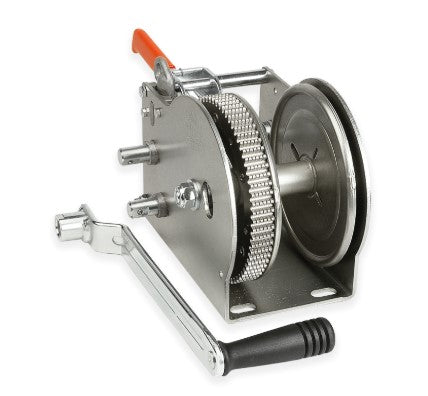

Goliath 16N2F 151-9-6 1556kg Removable Yes
ø7/14m

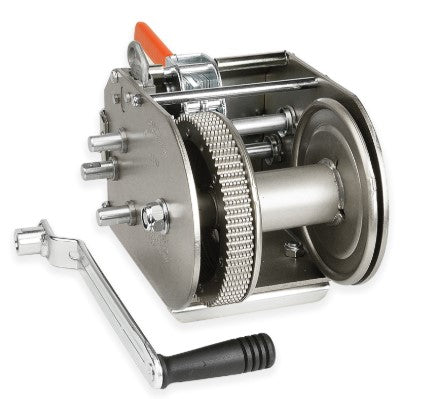

Goliath 25N3F 151-9-7 2741kg Removable Yes Ratio 1 : 1 / 4.85
Ratio 2 : 1 / 9.71
Ratio 3 :
1 / 21.85
ø8/14m
