TIGER BRAKE HAND WINCH (SINGLE OR DUAL HANDLE OPTION)

TIGER BRAKE HAND WINCH BHW FOR PULLING OR HOISTING (SINGLE OR DUAL HANDLE OPTION)

by Tiger
SKU 158-1-1
Availability:
2 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
Only 1 left!
Availability:
2 in stock, ready to be shipped
Availability:
Only 1 left!
Availability:
2 in stock, ready to be shipped
Availability:
Only 1 left!
£55.20 - £206.10
£55.20
£55.20 - £206.10
£55.20

Tiger BHW Extra Options

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

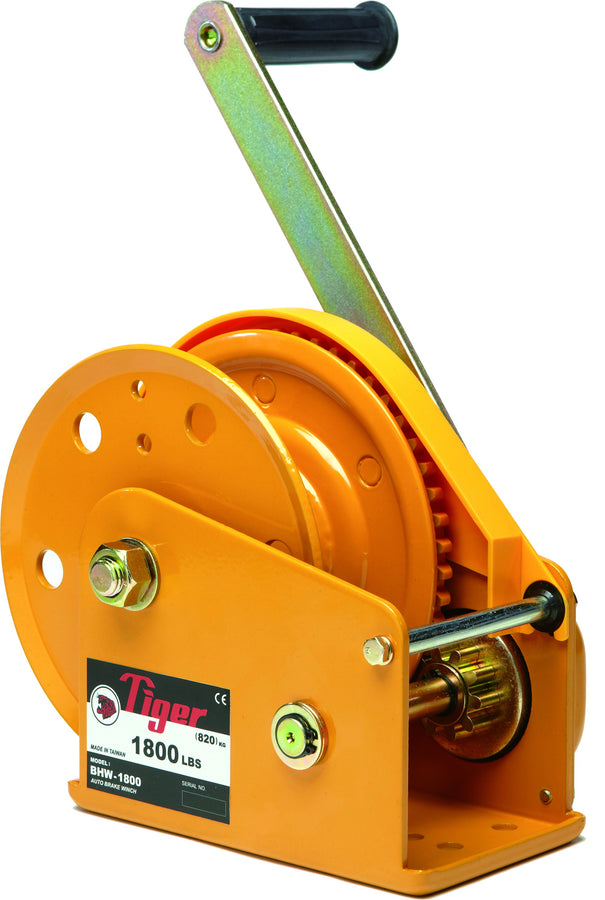

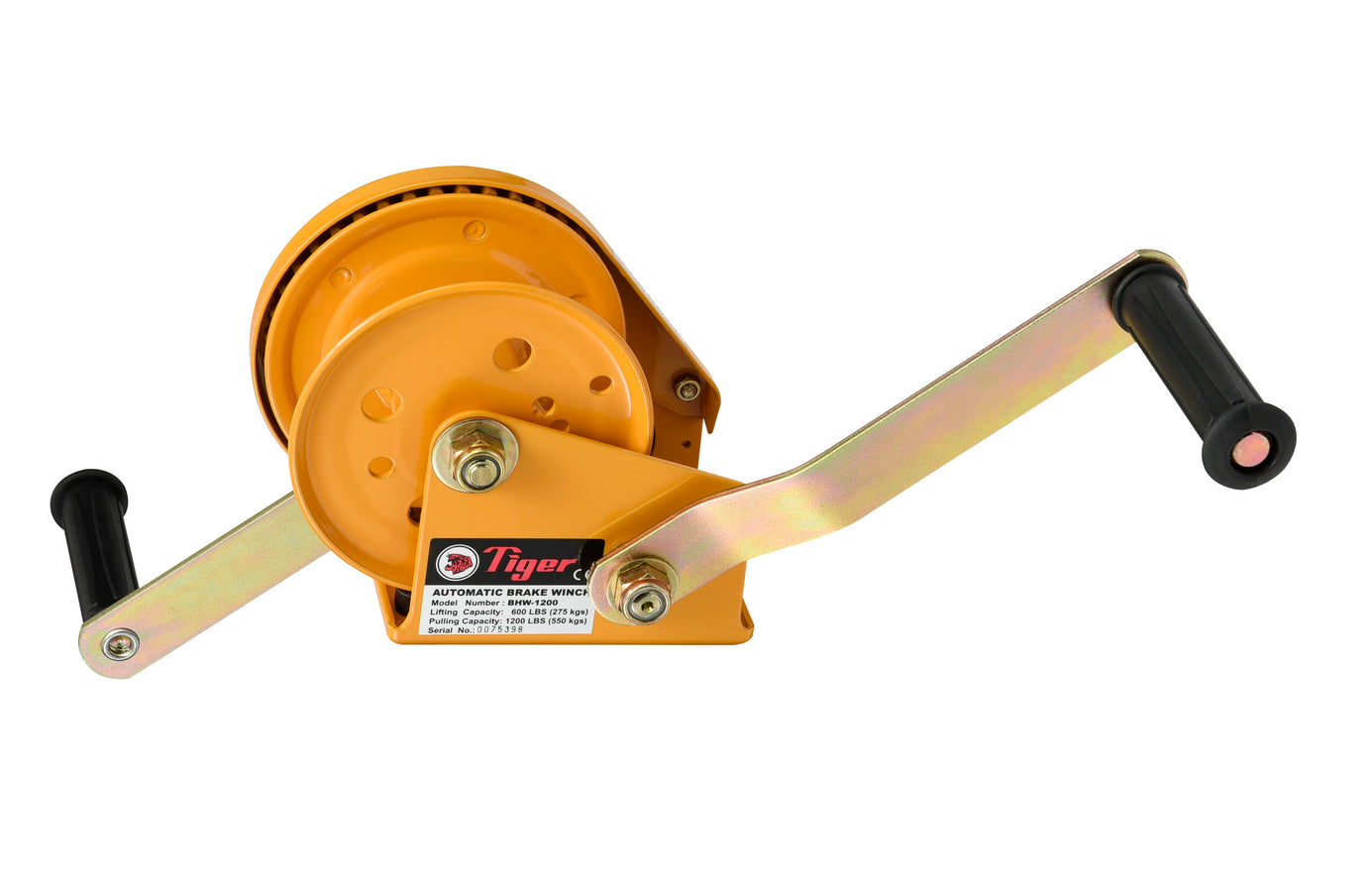

 TIGER BRAKE HAND WINCH (BHW) FOR PULLING OR HOISTING (SINGLE OR DUAL HANDLE OPTION) Ref: 158-1

  • High quality multi-purpose winch
  • Gears and brakes fully covered to prevent dust, dirt and rain contamination
  • Universal mounting plate
  • Finished in high quality powder coat paint offering excellent corrosion protection
  • Automatic load-actuated brake can hold the load in any position
  • Heat treated gears
  • Available as 360kg, 550kg, 800kg, and 1180kg models.
  • Available with OCP corrosion protection LINK
  • Compact, light-weight and rugged construction
  • Very low operator effort required for easy operation
  • For cable and strap
  • Noiseless 550kg model available LINK

Spec



 Type BHW800 BHW1200 BHW1800 BHW2600
Order Code (Single Handle) 158-1-1 158-1-3 158-1-5 158-1-7
Order Code  (Dual Handle) 158-1-2 158-1-4 158-1-6 158-1-8
Lifting Capacity 1st Layer: Kg 360 550 800 1180
Lifting Capacity Last Layer: Kg 180 275 400 590
Haulage Pulling Capacity: Kg 360 550 800 1180
Rope Capacity 1st Layer: Kg 1 m 2 m 2 m 2 m
Rope Capacity Total: M 36 23
 24
 18
Rope Diameter: Ø4/Ø5/32 Ø5/Ø3/16 Ø6/Ø1/4 Ø8/Ø5/16
Strap Storage Capacity: m 9.1 8.5 14.1 10.6
Ratio: 4.1:1 4.1:1 5:1 10:1
Hub Diameter : mm Ø40 Ø50 Ø70 Ø82
Weight: kg 3 3.5 8 10.5

Related Products

  • Pulley options: LINK
  • Wire rope: LINK
  • Wire rope accessories: LINK

Technical Info

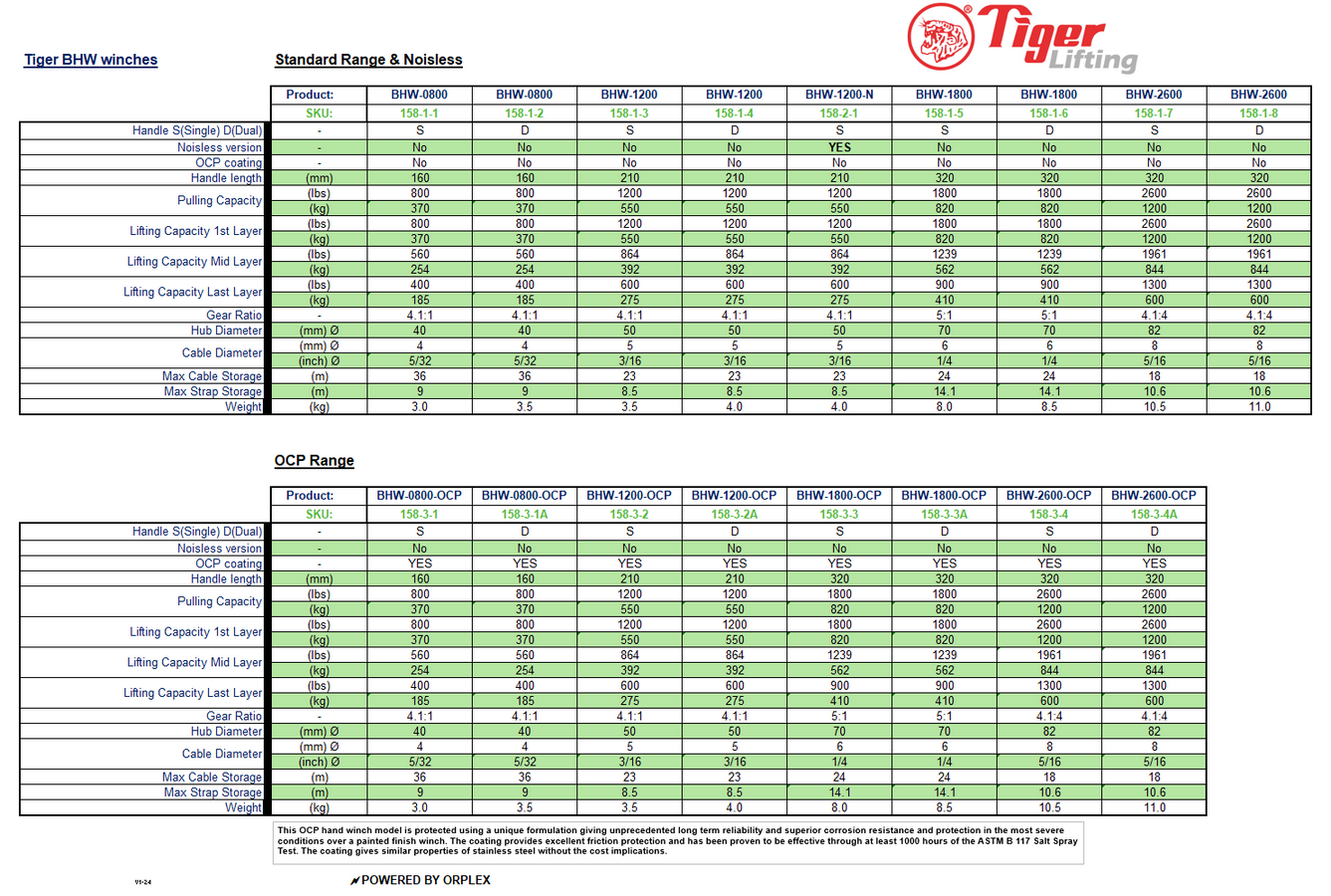

Winch data sheetData sheet

Description

 TIGER BRAKE HAND WINCH (BHW) FOR PULLING OR HOISTING (SINGLE OR DUAL HANDLE OPTION) Ref: 158-1

  • High quality multi-purpose winch
  • Gears and brakes fully covered to prevent dust, dirt and rain contamination
  • Universal mounting plate
  • Finished in high quality powder coat paint offering excellent corrosion protection
  • Automatic load-actuated brake can hold the load in any position
  • Heat treated gears
  • Available as 360kg, 550kg, 800kg, and 1180kg models.
  • Available with OCP corrosion protection LINK
  • Compact, light-weight and rugged construction
  • Very low operator effort required for easy operation
  • For cable and strap
  • Noiseless 550kg model available LINK

Spec



 Type BHW800 BHW1200 BHW1800 BHW2600
Order Code (Single Handle) 158-1-1 158-1-3 158-1-5 158-1-7
Order Code  (Dual Handle) 158-1-2 158-1-4 158-1-6 158-1-8
Lifting Capacity 1st Layer: Kg 360 550 800 1180
Lifting Capacity Last Layer: Kg 180 275 400 590
Haulage Pulling Capacity: Kg 360 550 800 1180
Rope Capacity 1st Layer: Kg 1 m 2 m 2 m 2 m
Rope Capacity Total: M 36 23
 24
 18
Rope Diameter: Ø4/Ø5/32 Ø5/Ø3/16 Ø6/Ø1/4 Ø8/Ø5/16
Strap Storage Capacity: m 9.1 8.5 14.1 10.6
Ratio: 4.1:1 4.1:1 5:1 10:1
Hub Diameter : mm Ø40 Ø50 Ø70 Ø82
Weight: kg 3 3.5 8 10.5

Related Products

  • Pulley options: LINK
  • Wire rope: LINK
  • Wire rope accessories: LINK

Technical Info

Winch data sheetData sheet

Questions & Answers

Have a Question?

Ask a Question

  • Can the handle be moved to the opposite side on the single handle winch?

    Hi

    Only the handles can be altered on the Dual Handle option.

  • Hi, i am looking for a winch capable of winching a 2T trailer up a sloping drive, what would you recommend? thanks.

    Hi We would recommend the 2T Speed Winch which has self braking system coming with 12m wire rope fitted. This will need some form of fabrication to raise of the floor. Mount: Horizontal mounted
    Rating: 2000 kg rolling weight up a 30 degree slope Link to product: 2T Winch

  • What are the dimensions of the mounting plate. Is the gearing different on the 550kg than 800kg

    Hi Nathan,

    The mounting plate dimensions can be found following the data sheet link below
    Data sheet

    The gearing ratio is different, 550kg is 4.1:1 and the 880kg is 5:1

    I hope the information helps.

    James

    Web Team

  • Can this winch be used for braked lowering as well as braked hoisting? I am looking for a hand winch to use for raising and lowering a boat's 10 metre mast. The mast weighs about 50kg. It's obviously important to be able to safeguard the lowering process against runaway.

    Yes this would work, the winch is fitted with a load pressure brake.

  • I am look to use this winch to pull up a washing line as my wife is finding it difficult to pull up a fully load washing lines it suitable for this application and will it be ok in the British whether.

    Hi we would recommend the HA-AG winch for this application:

    Winch on own:
    https://www.winchshop.co.uk/collections/haccon/products/ha-ag-hand-winch

    Washing line kit:
    https://www.winchshop.co.uk/collections/haccon/products/ha-ag45-hand-winch-wasking-line-kit-a

  • How many meters of cable will this winch hold Thanks Barry

    All information you require can be found on the data sheet:

    https://cdn.shopify.com/s/files/1/1563/3349/files/Technical_sheet_-_BHW_201702.pdf?7673215487722436309

  • Can these winches be used for rescuing personal?

    No these winches are not desinged to lift people. Please follow this LINK to safety rescue winches.
