CS100 Worm Gear Hand Winch 190kg

by Goliath
SKU 151-6-1
Availability:
77 in stock, ready to be shipped
Availability:
In stock
Original price £66.00 - Original price £84.00
Original price
£66.00
£66.00 - £84.00
Current price £66.00

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

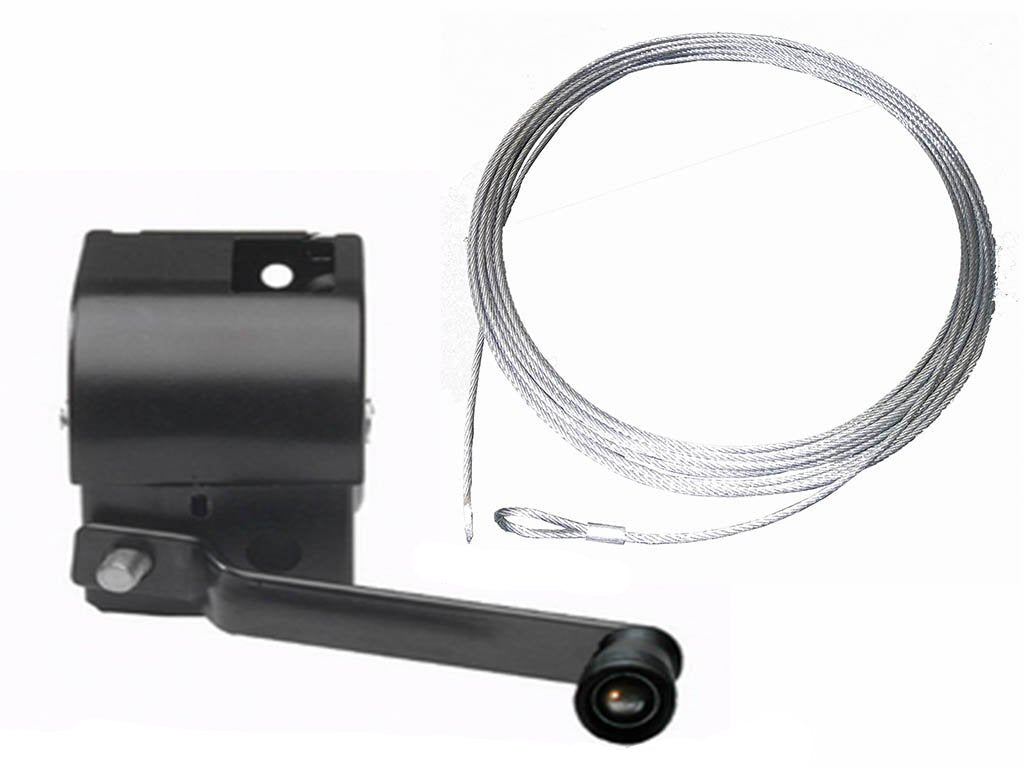

CS100 Worm Gear Hand Winch 190kg

Lifting capacity 190 kg

Compact and sturdy self sustaining lifting winches for loads up to 190 kg
Small and inexpensive
For base or wall mounting
Self locking worm gear and protective cover for greater safety
Quiet in operation; no brake ratchets
Ideal for regular short moving strokes
Meets the requirements of BS EN 13157

 Spec

PF63201

**As Standard supplied without Wire Rope - Prices available on request**

Technical Area

CS winchesProduct data sheet

Questions & Answers

Have a Question?

Ask a Question
  • Hello, I'm interested in your GO-CS100 Hand Winch Lift systems, does the system with the 3mm 10m cable is supplied fully assembled and if it's the case is the assembly certified ? Many thanks,

    HI

    THE OPTION SUPPLIED WITH WIRE ROPE IS NOT SUPPLIED ATTACHED, CERTIFICATION WOULD BE DONE BY THE INSTALLER ONCE THE WINCH AND ROPE HAS BEEN INSTALLED.

  • can this be used for controlled raining and lowering? Does it have a freewheeling option (my use case is a child's drawbridge and I would prefer no freewheel)

    Yes it can be used for raising and lowering, you will need a minimum load of 10kg for the brake to engage.

  • Can I use this winch for 6mm cotton sash cord on an indoor clothes pulley?

    Hi

    No it would not fit on the winch, they are designed for wire rope.

  • Hi, Can I use this in the garden washing line? Would you recommend this one or the HA-AG45 for lowering/raising washing and why? Thanks

    Hi

    We would recommend the AG45 as this is made from aluminimum and plastic so better suited for external use, the CS100 is designed for intenal use.
    we offer the AG 45 in kit for for washing lines.

    Please follow LINK

  • Hi. Can you confirm if the CS100 Worm Gear hand winch 190kg has a lock mechanism or self locking. We are proposing to use it for a washing line. Thanks

    Yes you are correct the CS100 has self-locking worm gearing, when you stop cranking the winch handle the winch holds the load. The winch has to be working at a minimum of approx. 7 to 10% of the maximum working load for the braking to operate as mentioned.
