Forestry Kit 1- 700kg Portable Winch Petrol Capstan Winch

SKU 167-2-1-FK
Availability:
In stock
Original price $2,721.00 - Original price $2,721.00
Original price
$2,721.00
$2,721.00 - $2,721.00
Current price $2,721.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

FOR A MORE COMPACT CHOICE, WOODLOT OWNERS AND OCCASIONAL LOGGERS CHOOSE THE KIT Forestry Kit 1, WHICH INCLUDES THE ALL-POSITION WINCH PCW3000 AS WELL AS A PROTECTIVE CASE AND ACCESSORIES ADAPTED TO EXTRACT LOGS.

The skidding cone (167-18-1) prevents logs from getting stuck in roots, stumps and other obstacles. Its shape allows it to slide along the residual trees, thus avoiding injuries during regeneration. The 10mm x 50m rope allows you to reach trees where they are. The single pulley (167-14-3) will be useful to deviate the load or to double the pulling force when the time comes. Combined with the 700kg power offered by the winch PCW3000, you will get 1400kg of force!

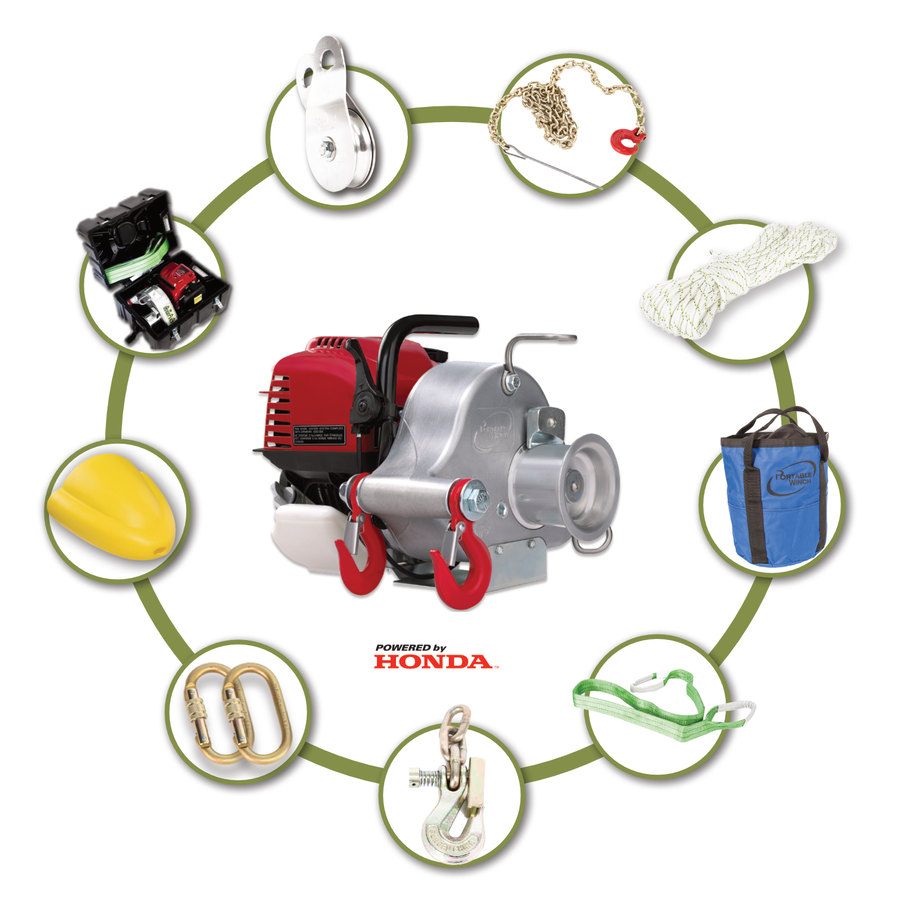

What you get in the kit

SKU Description Quantity
 167-8-1 50m 10mm Pulling Rope ABL=2900kg  1.00
167-2-1 PCW3000 Petrol Pulling Winch 700kg 1.00
167-14-3 Pulley - Snatch Block 76mm (10mm Rope) SS Single 1.00
167-13-1 Transport Case For PCW3000 (Portable Winch) 1.00
167-18-1 Skidding Cone (Portable Winch) - Logs up to 50cm Diameter 1.00
198-5-FP33-26 Aluminium Twist Lock Carabiner 2.00
167-15-5 Grab Hook - 7mm (5/16") 1.00
283-2-2 2M 2T. 60mm. Duplex Green Flat WebSling. EN STD 1492-1:2000 1.00
167-12-1 VAULT 25 - 25 Litre Storage Bag - Draw String Top - Blue 1.00
167-18-2 Choker Chain 7mm x 2.1mm (Portable Winch) 1.00

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

This winch is powered by Honda’s 4-stroke GX-35cc engine. In addition to being extremely popular with hunters looking for a lightweight, compact tool, this model is also appreciated by occasional loggers.

Weighing only 9,5 kg, it offers 700 kg of pulling power single line. EFFICIENT and very easy to carry, you’ll be equipped to retrieve your game, no matter the conditions.

Use the PCW3000 Portable Capstan Winch with any length of 10 mm double braided polyester low stretch rope!

It is so easy to use! The rope is tied to the object to be moved and wound three (or four) times around the capstan drum. When the engine is running, the capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001970


Spec

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 700kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 76mm
Speed with Installed Capstan 10 m/min
Rope Size Min 10mm | Max 16mm | Ideal 10mm
Engine/Motor Honda 4-stroke GX-35 cc
Gear Ratio 200:1
Dry Weight 9.5kg
GTIN / EAN13 690581001970
