AFD Hand Winch 190kg to 1180kg - Zinc Finish

by Goliath
SKU 151-1-1
Availability:
In stock
Availability:
Out of stock
Availability:
7 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
Only 1 left!
Original price £76.20 - Original price £306.60
Original price
£76.20
£76.20 - £306.60
Current price £76.20

Goliath AFD Extra Options

Not the winch for you, then try looking at all our Lifting Winches

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Description

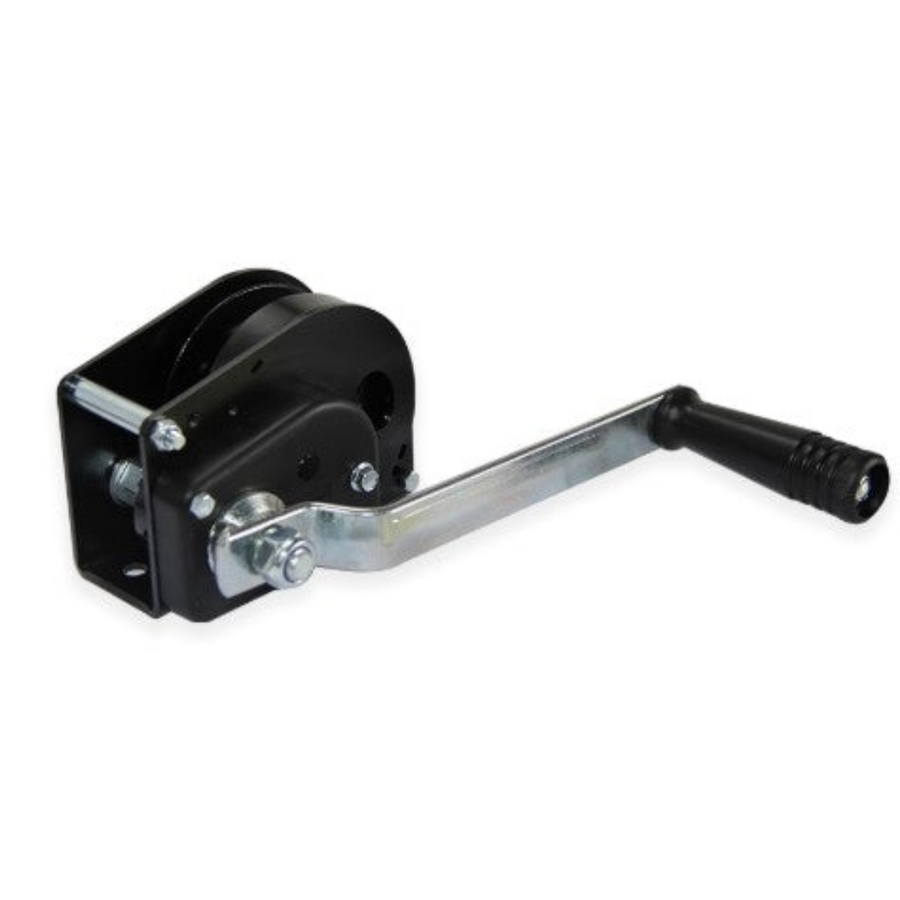

The Goliath hand winch 1180kg (AFD) is a zinc-plated, self-braking manual winch for wire rope, lifting up to 1180kg and hauling up to 2500kg from a column or base mount.

Goliath hand winch 1180kg features

An automatic load-pressure brake holds the load in position with no action from the handle, while high-efficiency spur gearing gives smooth, low-effort operation. The enveloping frame and enclosed, protected stamped gears suit repeated site use.

Specifications and range

  • Lifting capacity up to 1180kg, hauling up to 2500kg

  • Six models from 190kg to 1180kg (4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD)

  • Zinc-plated components for corrosion resistance (4AFMD supplied in black)

  • Quick cable fixing with cable clamp included, no drum removal needed

  • Column or base mounted hand winch with an automatic brake

  • Complies with BS EN 13157, CE and TUV accredited

Mounting and use

Use it as a lifting or hauling winch for wire rope. It is supplied without wire rope, so pair it with the right cable and fittings.

See the full Goliath range and matching wire rope accessories.



** 4AFMD is supplied in Black finish

Complies with BS EN 13157
CE and TUV Security Accreditation
Models available 4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD

**As Standard supplied without Wire Rope - Prices available on request**

Back to top

Specification

Specification
Back to top

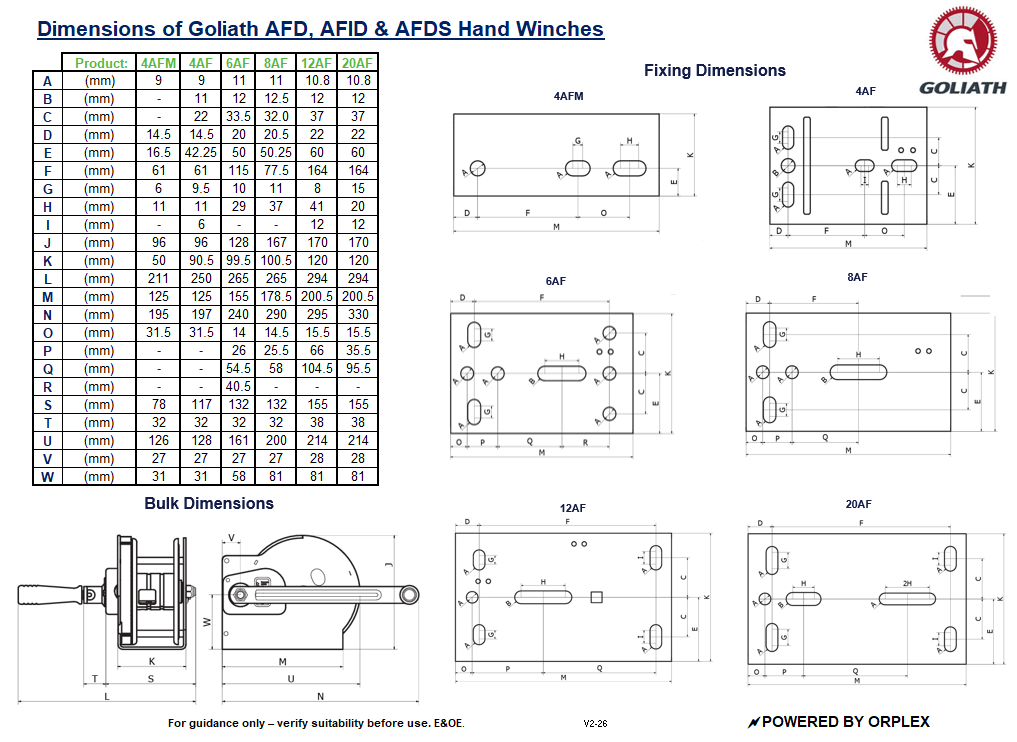

Dimensions

AFD Hand Winch 190kg to 1180kg - Zinc Finish - Dimensions image
Back to top

Product Questions & Answers

  • I want to use the winch to raise and lower a bed. Is it braked and does it go forwards a d backward. Plus how is the gearing to lift 100kg ish quite easy?

    Hi Dave

    Is it braked and does it go forwards a d backward. YES DOES BOTH
    Plus how is the gearing to lift 100kg ish quite easy? YES VERY EASY AND SMOOTH, THE 4AFMD-190 REF:151.1.1 WILL TAKE 190KG, ON THE LAST LAYER IT WILL DO 80KG.

    Regards
    Web Team

  • Can you send me a copy of the Declaration of Conformity for the AFD Winch Model

    Please see DoC in link below.
    https://www.winchshop.co.uk/products/go-afd-zinc-plated-winch?_pos=2&_sid=49dfd3646&_ss=r#legislation

  • What is the operating temperature for the AFD range of hand winches

    The surrounding operating temperature should be between –10°C and +50°C

  • Will the winch also work in reverse

    Hi,

    Yes the winch will work in reverse.

  • Hi. Could you export to Norway without VAT?

    Hi

    Many thanks for the question, we do ship to Norway and if you proceed through checkout, once you enter your address the VAT will be removed.

    Kind Regards

    Web Team
