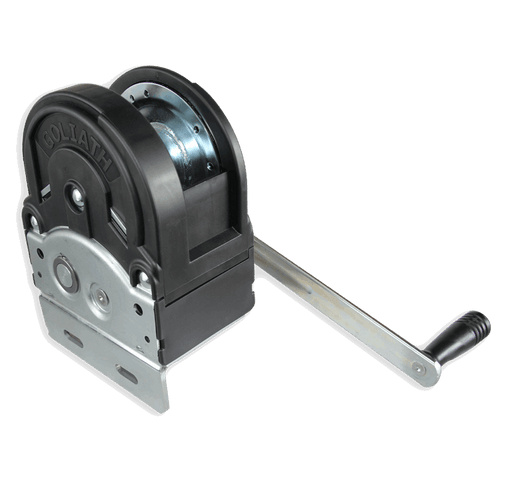

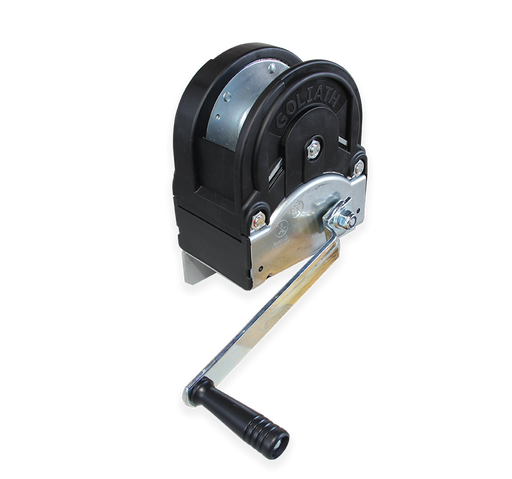

TA-TPV Winches

Designed to competitively meet the needs of integrators up to 1,500 kg, TA-TPV winches come equipped with a permanent self-braking system, 1 or 2 speeds and a full protective cover, offer fixed, removable, left, right handle or two-handle options for standard or wall mounting as required.

Safety brake and removable handle: Goliath TA-TPV, the safest winch.

TA-TPV winches have a permanent internal self-braking system automatically activated by the load. It does not depend on the action on the handle and therefore makes it possible to safely disconnect the latter. Removing the handle helps to prevent any unauthorised use of the winch.

 The self-braking system is a compulsory device on all winches in order to comply with the European standard (EN13157-A1) and regulation.

The TA-TPV manual winch is compliant with the standard EN13157 A1 and received CE marking.

Powerful: For loads up to 1,500 kg

Goliath TA-TPV winches offer a wide range in terms of load capacity, ranging from 100 to 1,500 kg while offering the best conditions of use.

Comfort: 2 speeds to reduce force by 50% on the handle.

TA-TPV manual winches were the subject of a specific study in order to limit forces on the handle and ensure ease of use.

The latest generation of the self-braking system integrates a reduction device sensitive(up to 50%) to forces when lowering.

Some models are equipped with a dual speed allowing to reduce lifting forces by 50% (for variable loads or significant lifting heights).

To change speed, simply disconnect the handle from its initial drive shaft and put it back on the second shaft.

This operation can be safely carried out at any time!

TR9

Ideal for loads < 250 kg, the TR9 is a bottom-of-the-range solution which is particularly competitive for OEM applications.
