Stainless Steel Load Rated Safety Nut and Bolt Pin Bow Shackle - SSLRSABS
- AISI 316 stainless steel.
- Polished finish.
- Marked with CE, W.L.L, size and traceability code.
- Certification available
Spec

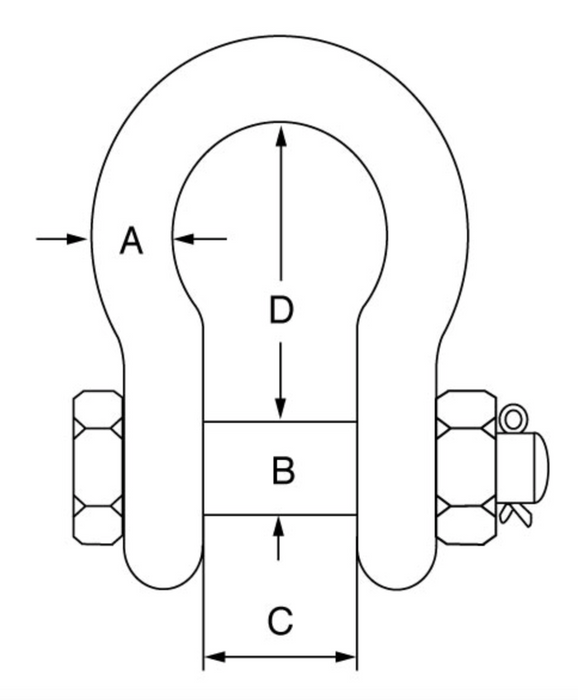

| SKU | Product Code | W.L.L. | A | B | C | D | Weight |
|---|---|---|---|---|---|---|---|
| t | inch | inch | mm | mm | kgs | ||
| 286-1203-1 | SSLRSABS.75 | 0.75 | 5/16 | 3/8 | 13.5 | 31 | 0.07 |
| 286-1203-2 | SSLRSABS1 | 1 | 3/8 | 7/16 | 16.8 | 36.6 | 0.13 |
| 286-1203-3 | SSLRSABS2 | 2 | 1/2 | 5/8 | 20.6 | 47.8 | 0.28 |
| 286-1203-4 | SSLRSABS3 | 3 | 5/8 | 3/4 | 26.9 | 60.5 | 0.55 |
| 286-1203-5 | SSLRSABS4 | 4 | 3/4 | 7/8 | 31.8 | 71.4 | 0.93 |
| 286-1203-6 | SSLRSABS5 | 5 | 7/8 | 1 | 36.6 | 84.1 | 1.38 |
| 286-1203-7 | SSLRSABS6 | 6 | 1 | 1 1/8 | 42.9 | 95.3 | 1.99 |
