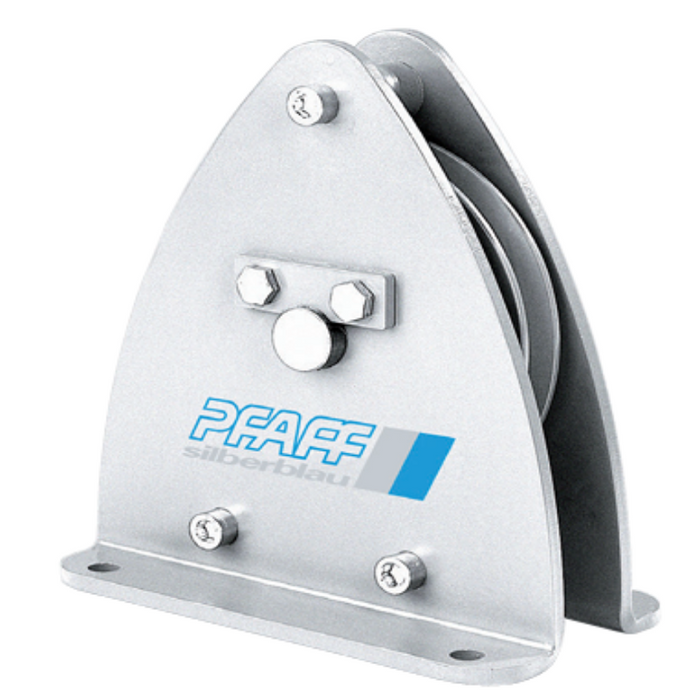

Pfaff DSRB S Sheave Block for Rope Guidance, Equipped with Ball Bearings

Pfaff DSRB S Sheave Block – Ø8mm Rope, 2300kg, Ø185mm Pulley

by Pfaff-silberblau
SKU 601-12-4
Availability:
In stock
£383.48 - £383.48
£383.48
£383.48 - £383.48
£383.48

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 18 Dec, 2025.

Description

Pfaff DSRB S Sheave Block for Rope Guidance, Equipped with Ball Bearings

The Pfaff DSRB S Sheave Block is a robust and reliable solution for guiding wire rope in lifting and pulling operations. Engineered for smooth and consistent performance, it features high-quality ball bearings that ensure low-friction operation and long-lasting durability, even under demanding industrial conditions.

This sheave block is ideal for use in systems where rope redirection is required, providing accurate guidance and helping to maintain correct rope alignment.

The rollers are painted in RAL 5015, while the side panels, anchors, mounting screws and brackets  are electro-galvanised.

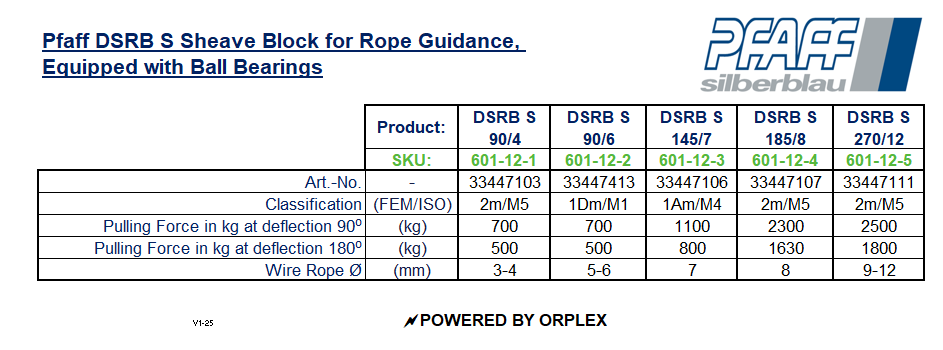

Note: The capacity listed for the Pfaff DSRB S represents the pulling force in kilograms (kg) at a 90° deflection. Always ensure the sheave block is correctly matched to your system's load and configuration for safe and optimal use.
