Cast Iron Pulley with Bronze Bush for Wire or Fibre Rope 500-3000kg Pulley Type 1A (PT1A)

by Orptech
SKU 157-1-1
Availability:
83 in stock, ready to be shipped
Availability:
44 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
26 in stock, ready to be shipped
Original price £28.80 - Original price £108.00
Original price
£28.80
£28.80 - £108.00
Current price £28.80

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

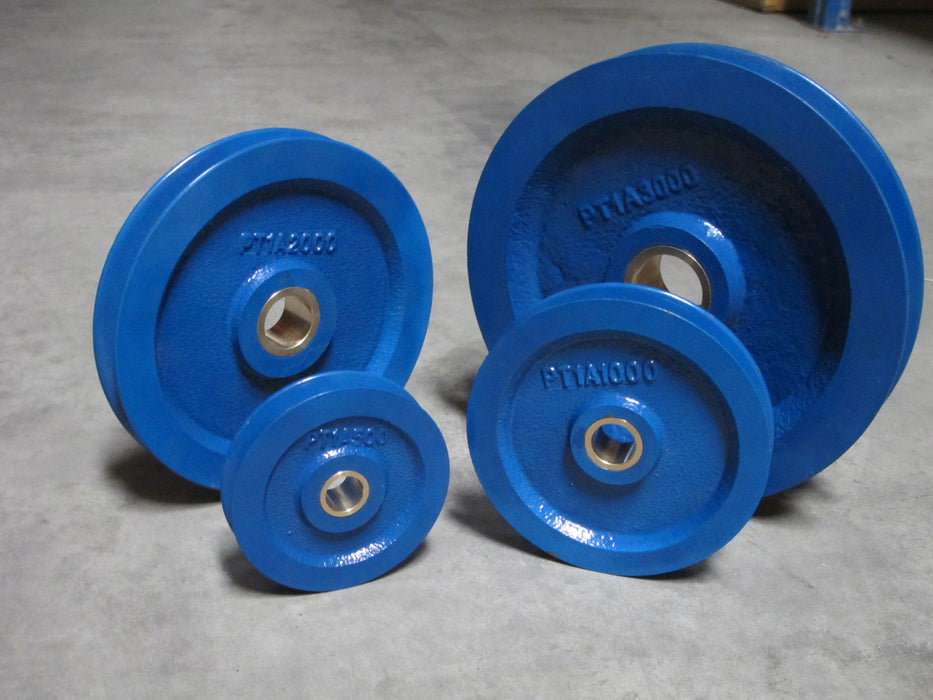

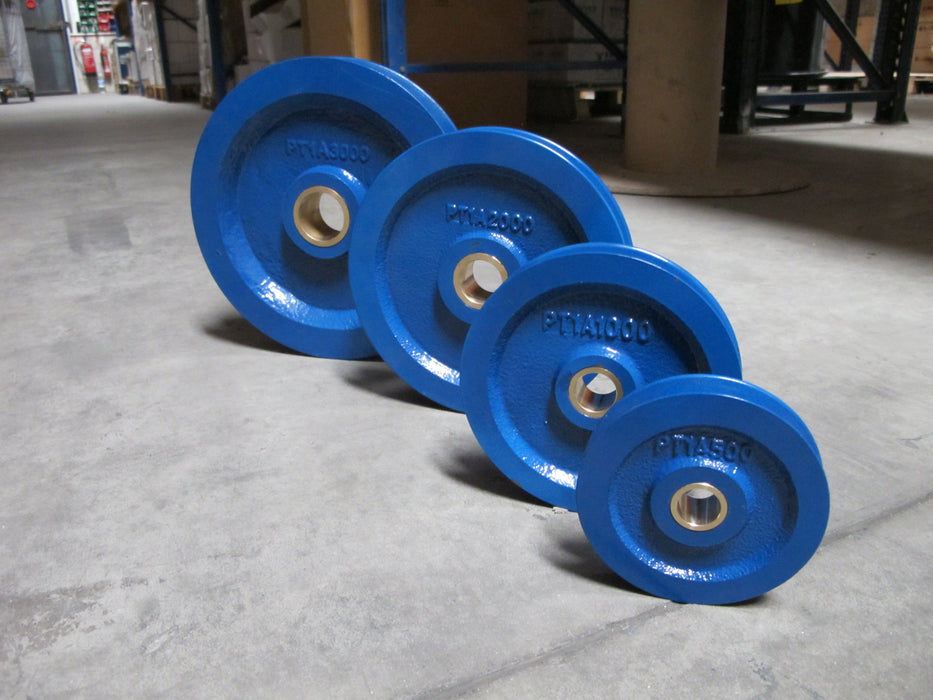

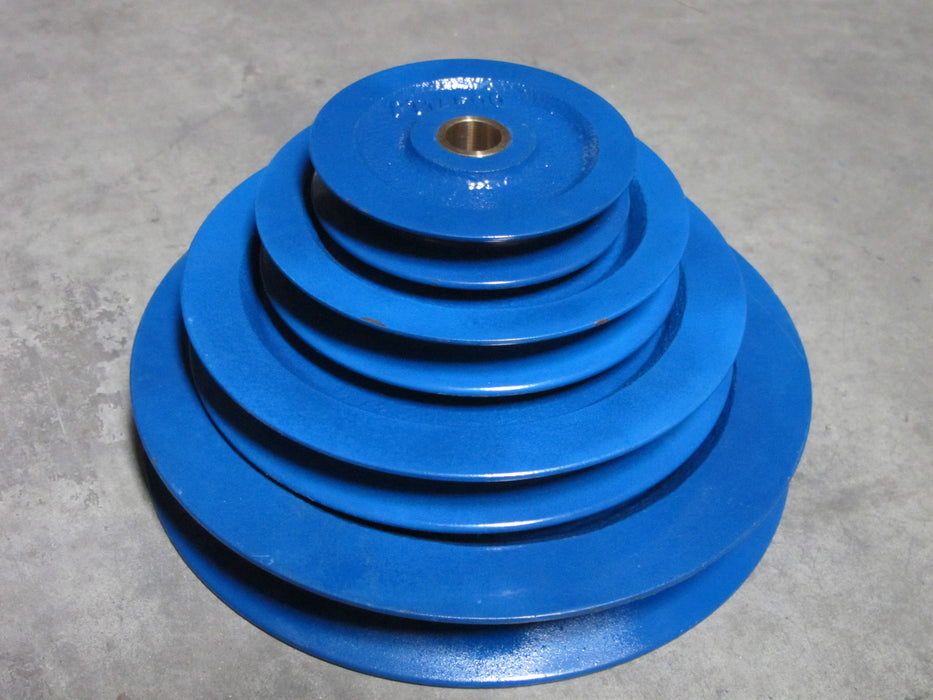

Pulley Type 1A (PT1A) - Cast Iron Pulley with Bronze Bush for Wire or Fibre Rope Ref: 157-1

  • Cast Iron Pulleys with bronze bush for use on their own or to assemble into brackets.
  • Ideal for most applications where wire rope needs to be diverted.
  • For use with wire or fibre rope.
  • For use with powered or manual driven winches.
  • Four model types available from stock, 500kg, 1,000kg, 2,000kg and 3,000kg

(PT1A) are manufactured by our own brand

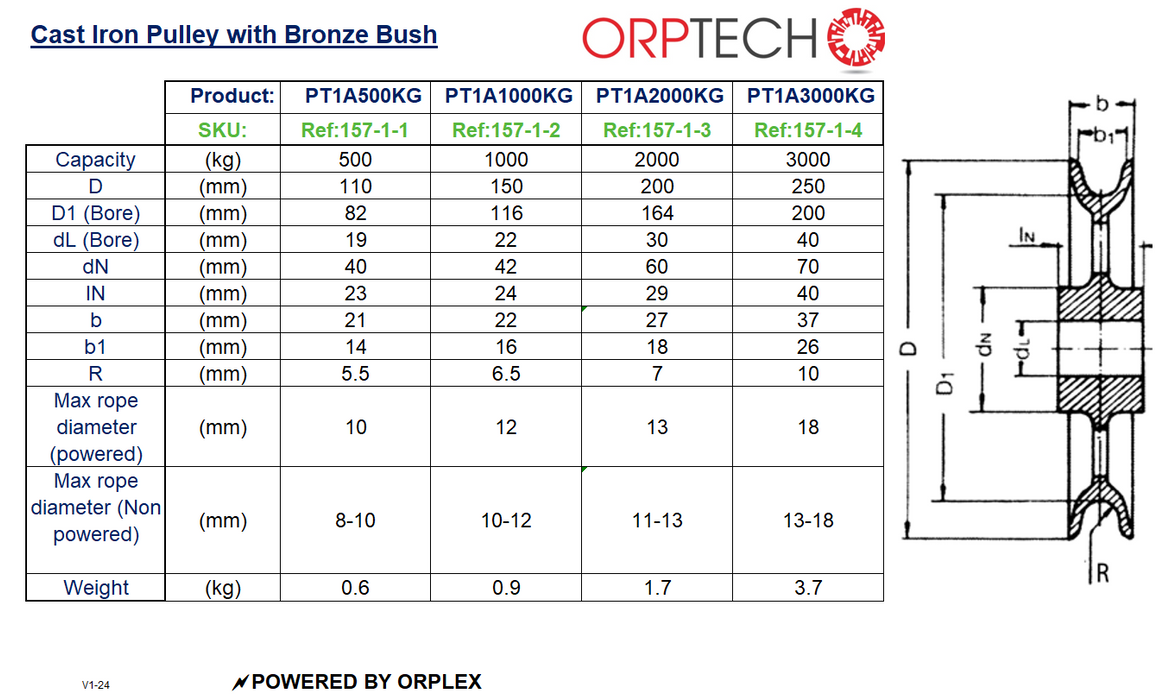

Spec

Model Capacity Pulley ø Rope ø Powered

Rope ø Non Powered

157-1-1 500kg 110mm 10mm 8-10mm
157-1-2 1,000kg 150mm 12mm 10-12mm
157-1-3 2,000kg 200mm 13mm 11-13mm
157-1-4 3,000kg 250mm 18mm 13-18mm



Downloads

PulleysPT1A Data Sheet

Questions & Answers

Have a Question?

Ask a Question
  • Hi I’m looking for cast iron or steel A section pulleys measuring 87 mm across the pulley they need to have as boss on one side as we have to bore them to fit bearings in to them regards Chris

    Hi, Thanks for enquiry.

    We dont have naything the the sped required, the closest I can offer is this one with bearings fitted at 80mm LINK
