16mm Diameter 6x19 WSC Wire Rope to suit GT Viper Winch 3,200kg Capacity

SKU 286-528-20
Availability:
In stock
Availability:
Only 1 left!
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price £135.96 - Original price £316.42
Original price
£135.96
£135.96 - £316.42
Current price £135.96

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

6x19 wire rope for GT Viper 3,200kg winch

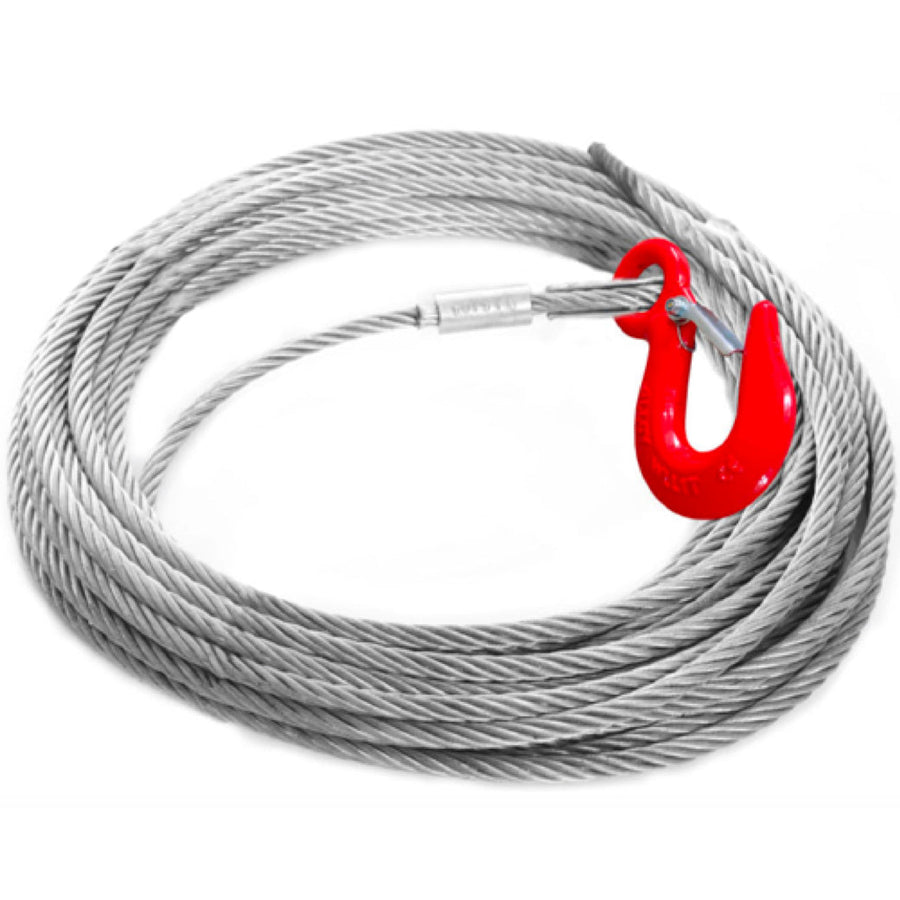

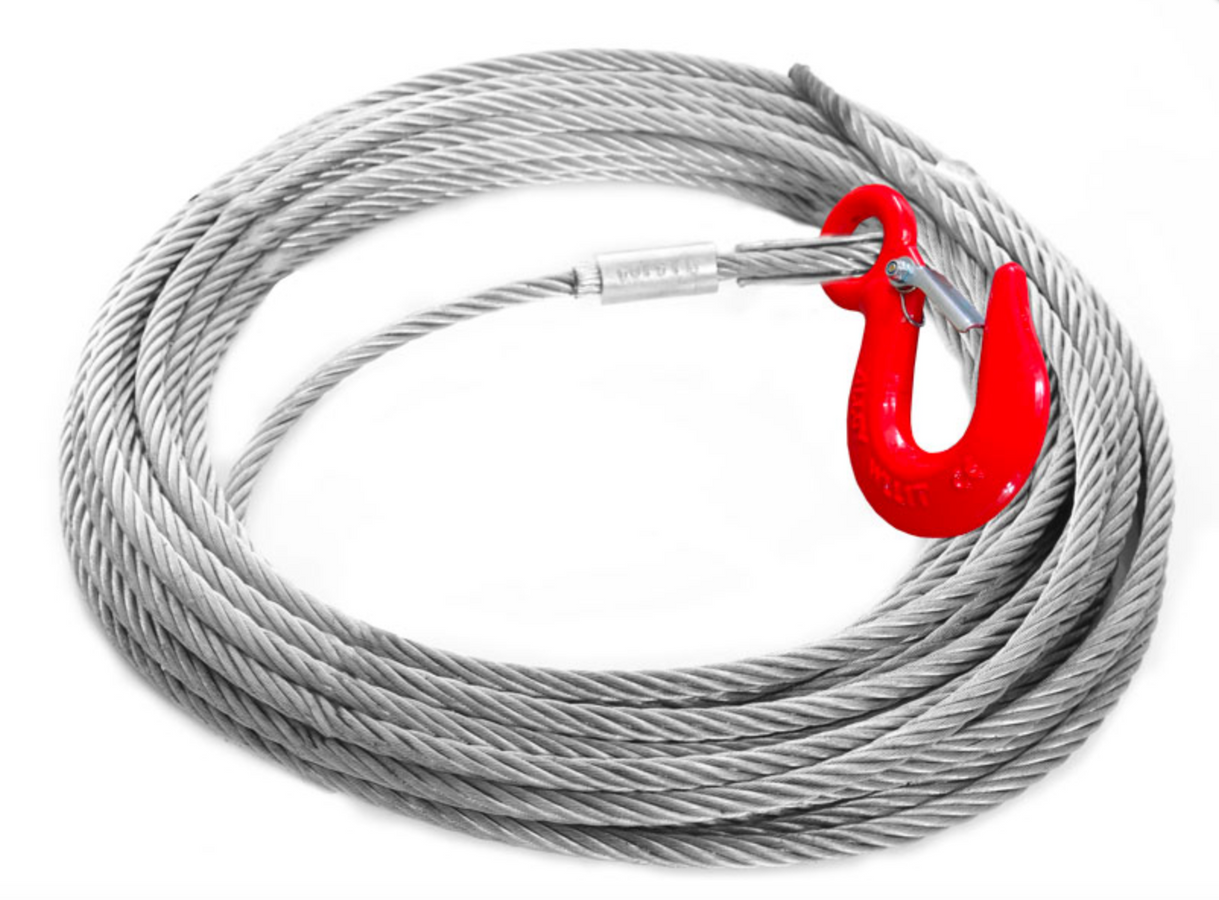

This 16mm diameter 6x19 WSC wire rope is made to suit the GT Viper 3,200kg capacity wire rope puller. It carries a minimum breaking load of 16,000kg and is tapered at one end for easy feeding, with a hook and safety catch fitted at the other end ready to rig.

Specification

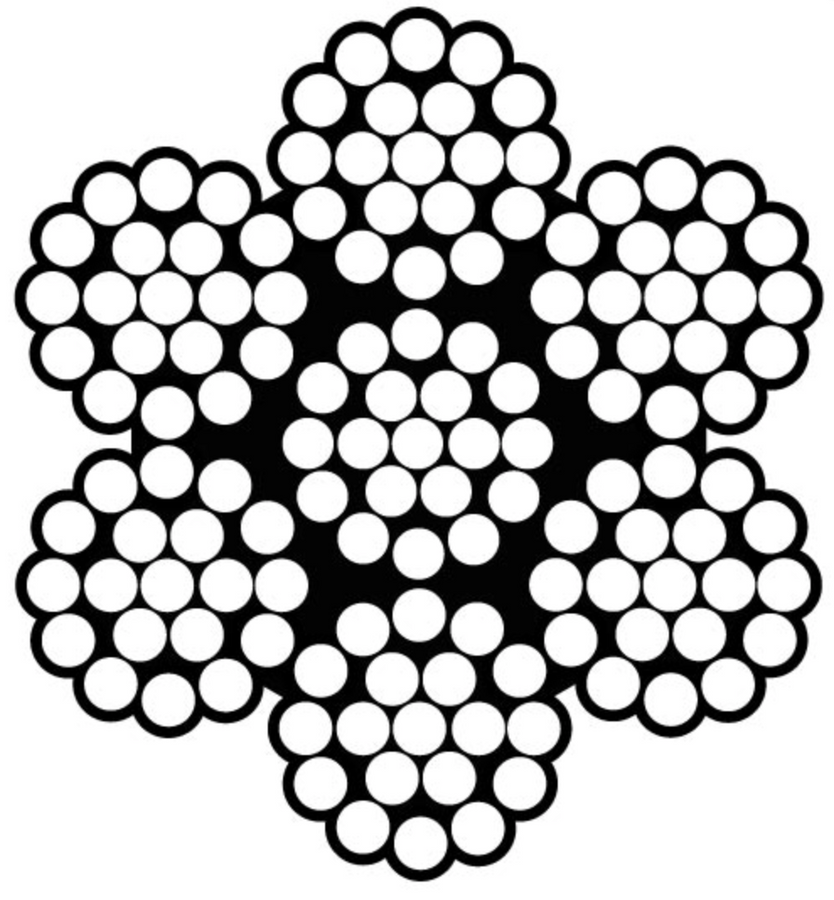

  • 16mm diameter 6x19 WSC right hand ordinary lay wire rope

  • Galvanised steel finish for corrosion resistance

  • Tensile strength 1770 to 1960 MPa

  • Minimum breaking load 16,000kg for the 3,200kg GT Viper winch

  • Tapered one end, hook and safety catch at the other end

  • Available in 10m, 20m, 30m, 40m and 50m lengths, certification available

For a lighter puller choose the 8.3mm rope, or step up to the 20mm rope, in our GT Viper wire rope range. See the matching GT Viper winches to complete your setup.


Specification

SKU
Wire Rope Dia Capacity M.B.L. Length Weight
mm kgs kgs m kgs
286-528-20
16 3,200 16,000 10 18
286-528-21 16 3,200 16,000 20 25
286-528-22
16 3,200 16,000 30 36
286-528-23
16 3,200 16,000 40 46
286-528-24
16 3,200 16,000 50 62
