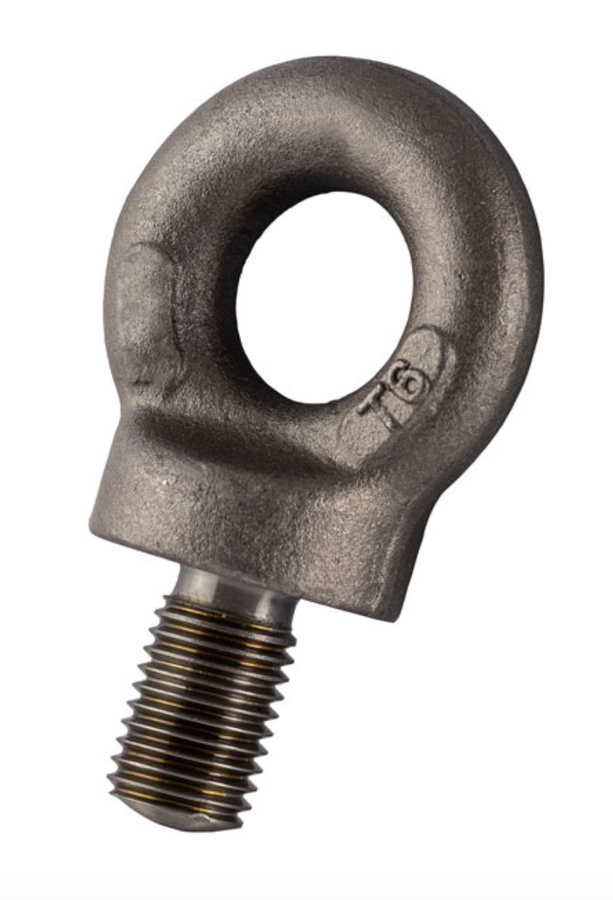

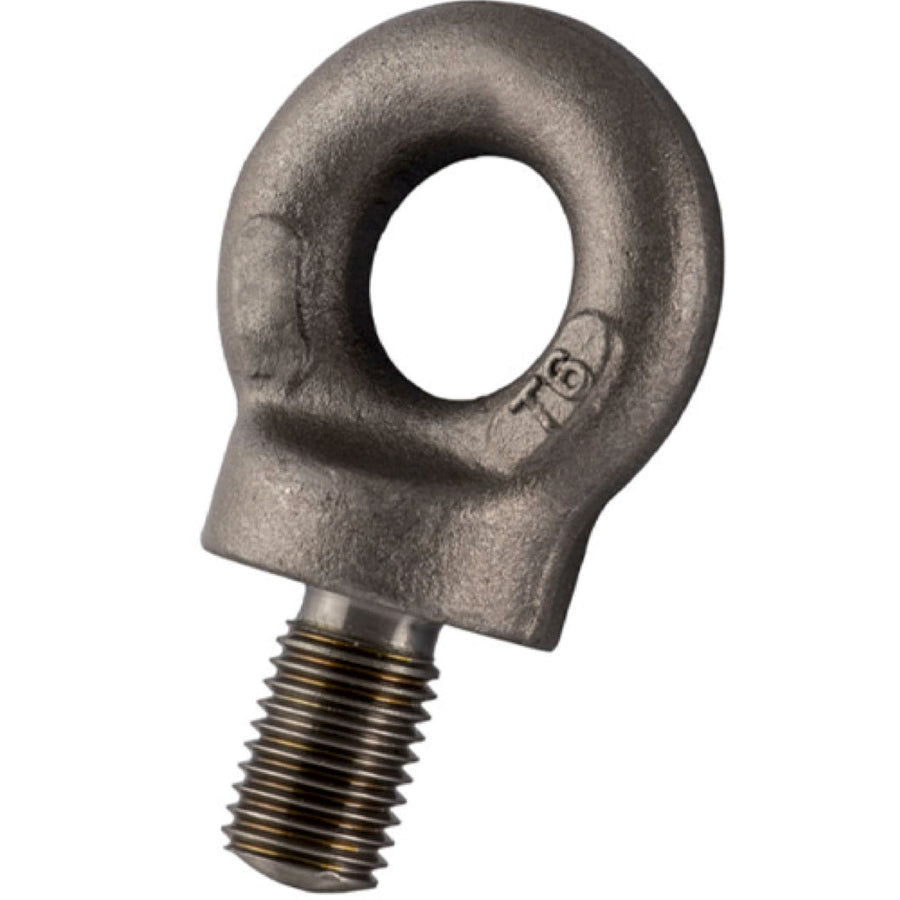

High Tensile Collared Eyebolt with Whitworth Thread

High Tensile Collared Eyebolt with Whitworth Thread

by GT
SKU 286-620-1
Availability:
12 in stock, ready to be shipped
Availability:
9 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
£2.88 - £12.60
£2.88
£2.88 - £12.60
£2.88

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

High Tensile Collared Eyebolt Whitworth Thread
  • Drop forged, high tensile steel, heat treated.
  • Self colour and electro galvanised finish.
  • Meets the W.L.L. performance requirements of BS 4278.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK.
  • Certification available DoC



      Spec

      SKU W.L.L. A B C E F G H Weight
      t inch mm mm mm mm mm mm kgs
      286-620-1 0.25 3/8 22 7 15 9 20 17 0.06
      286-620-2 0.5 1/2 29 10 20 12 26 22 0.07
      286-620-3 0.9 5/8 36 12 24 14 32 28 0.14
      286-620-4 1.4 3/4 45 15 30 18 40 33 0.28
      286-620-5 2 7/8 52 17 35 21 46 39 0.6
      286-620-6 2.75 1 58 20 39 23 52 44 1.1
      286-620-7 3.5 11/8 64 21 42 25 57 50 1.6
