GT Viper Adjustable Beam Clamp - YS WJC Type
- Heavy duty construction allows safe and secure grip in the beam.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13155.
- Minimum breaking load is 4 times the W.L.L.
- Easy and simple mounting.
- Adjustable to fit a wide range of flange widths and beams.
- Special jaw design applies the load away from the flange edge, thus reducing flange stress.
- Marked in accordance with BS EN 13155.
- Certification available DoC
Spec

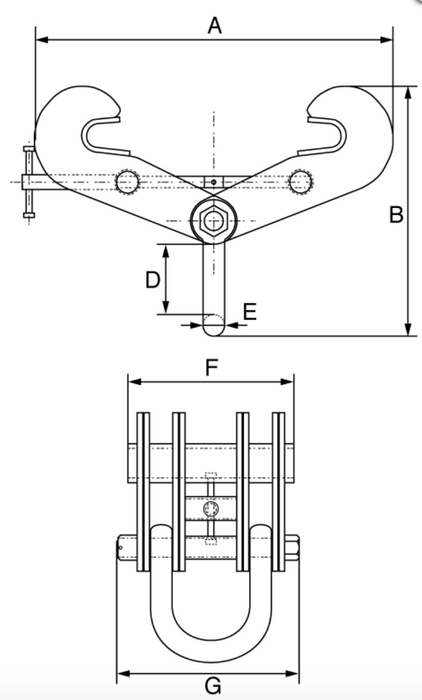

| SKU | Product Code | W.L.L. | Beam Range | A | B | C | D | E | F | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| kgs | mm | mm | mm | mm | mm | mm | mm | kgs | ||
| 286-522-1 | VCB16 | 16,000 | 203 - 457 | 700 | 588 | 50 | 203 | 45 | 200 | 50 |
| 286-522-2 | VBC20 | 20,000 | 203 - 457 | 720 | 610 | 50 | 210 | 45 | 350 | 81 |
