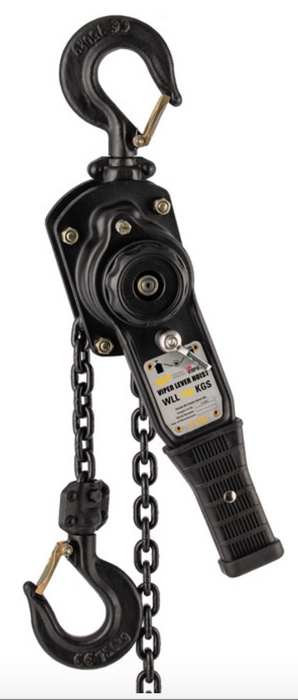

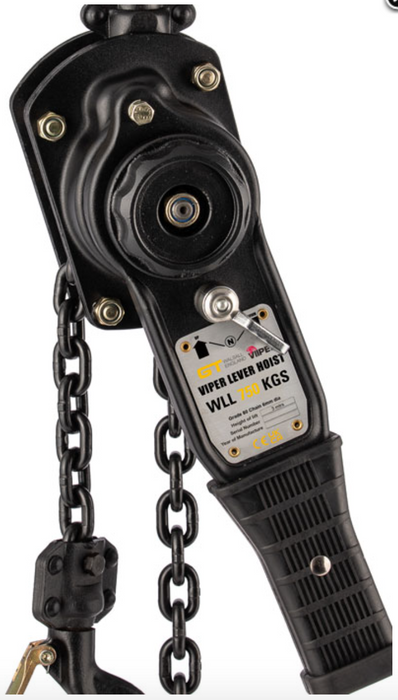

GT Viper Lever Hoist 750kg Capacity - HSH-X - VLH
- Lightweight and robust ensuring reliability in every position.
- High grade steel body protects gears and brake system.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13157.
- Minimum break load 4 times the W.L.L.
- Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
- Easy to use free wheel mechanism that enables chain to be pulled freely when not under load.
- Short arm lever and special gear ratio allows an easy lift with minimum stress and maximum security.
- Marked in accordance with BS EN 13157.
- Certification available
Spec

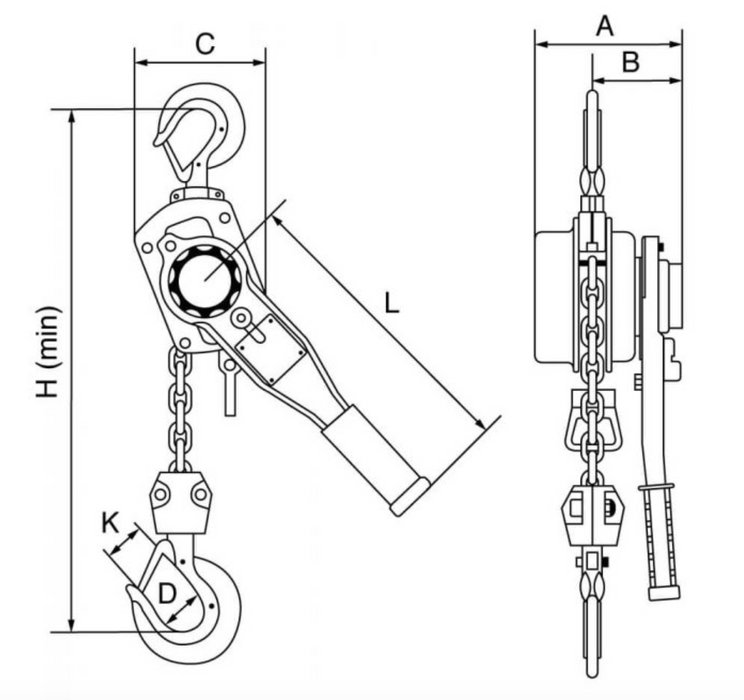

| Product Code | Capacity | A | B | C | D | H | L | K | Load Chain | Falls of Chain | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5m | 3m | Carcase | kgs | mm | mm | mm | mm | mm | mm | mm | mm | |
| 286-512-1 | 286-512-2 | 286-512-3 | 750 | 148 | 90 | 136 | 40 | 320 | 250 | 28 | 6 x 18 | 1 |
Technical Data
| Capacity | Running Test Load | Effort Req'd to Lift Rated Load | Weight | Extra Weight per mtr |
|---|---|---|---|---|
| kgs | kN | kN | kgs | kgs |
| 750 | 11 | 180 | 7.4 | 0.8 |
