6,000kg Capacity GT Viper Lever Hoist

SKU 286-517-1
In stock
In stock
Original price £396.00 - Original price £450.00
Original price
£396.00 - £450.00
Current price £396.00

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at

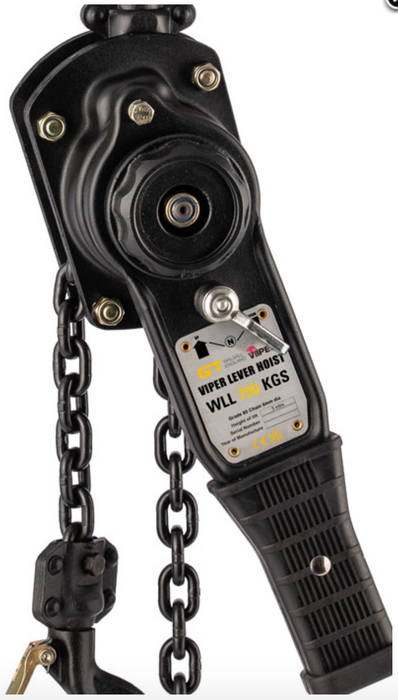

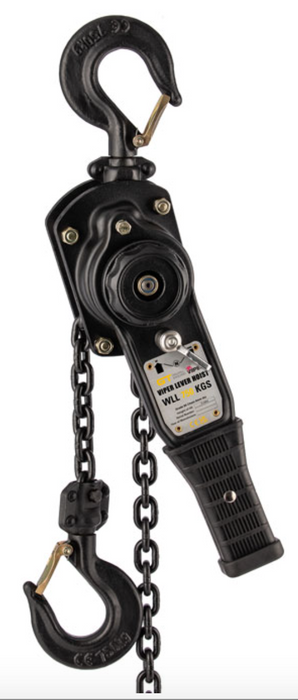

6,000kg Capacity  GT Viper Lever Hoist

  • Lightweight and robust ensuring reliability in every position.
  • High grade steel body protects gears and brake system.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
  • Easy to use free wheel mechanism that enables chain to be pulled freely when not under load.
  • Short arm lever and special gear ratio allows an easy lift with minimum stress and maximum security.
  • Marked in accordance with BS EN 13157.
  • Certification available

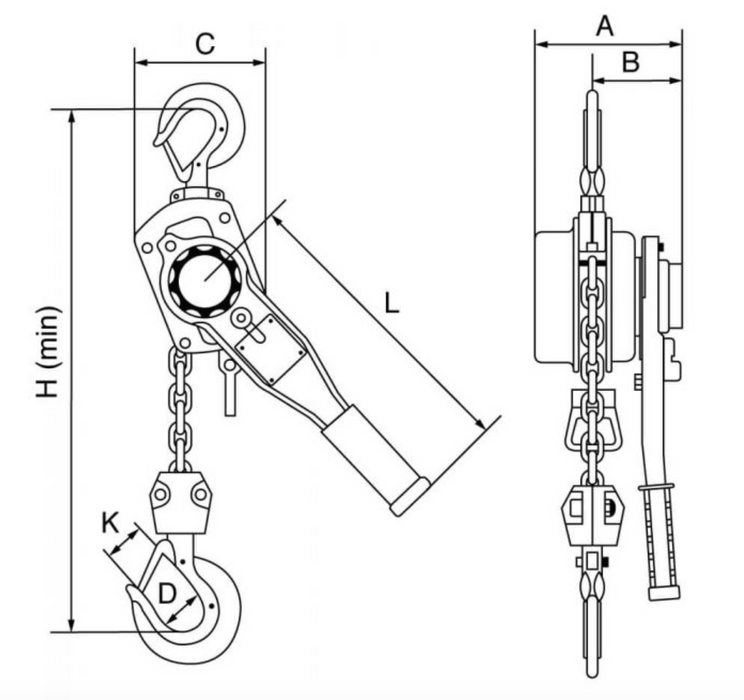

     Product Code Capacity A B C D H L K Load Chain Falls of Chain
     1.5m 3m Carcase kgs mm mm mm mm mm mm mm mm
    286-517-1 286-517-2 286-517-3 6,000 200 115 235 64 600 375 50 10 x 30 2


    Technical Data

    Capacity Running Test Load Effort Req'd to Lift Rated Load Weight Extra Weight per mtr
    kgs kN kN kgs kgs
    6,000 75 500 29.4 4.4

    User Manual
