GT Viper Lever Hoist 3,000kg Capacity

£232.84

SKU :286-516-1

Height of Lift

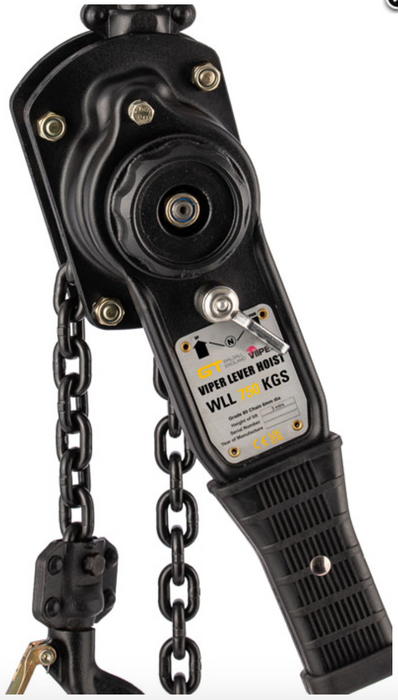

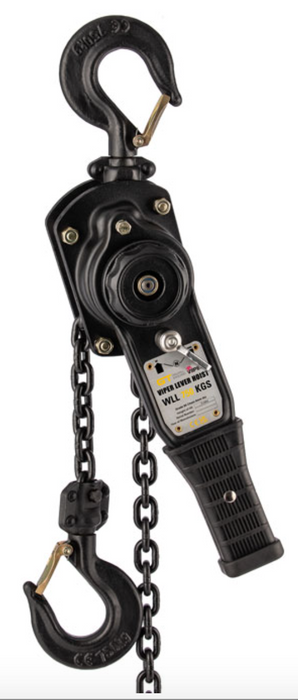

 GT Viper Lever Hoist 3,000kg Capacity - HSH-X - VLH

  • Lightweight and robust ensuring reliability in every position.
  • High grade steel body protects gears and brake system.
  • Matt black finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum break load 4 times the W.L.L.
  • Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
  • Easy to use free wheel mechanism that enables chain to be pulled freely when not under load.
  • Short arm lever and special gear ratio allows an easy lift with minimum stress and maximum security.
  • Marked in accordance with BS EN 13157.
  • Certification available



    Spec

     Product Code Capacity A B C D H L K Load Chain Falls of Chain
     1.5m 3m Carcase kgs mm mm mm mm mm mm mm mm
    286-516-1 286-516-2 286-516-3 3,000 200 115 180 50 480 375 42 10 x 30 1



    Technical Data

    Capacity Running Test Load Effort Req'd to Lift Rated Load Weight Extra Weight per mtr
    kgs kN kN kgs kgs
    3,000 37.5 450 20 2.2


    User Manual
