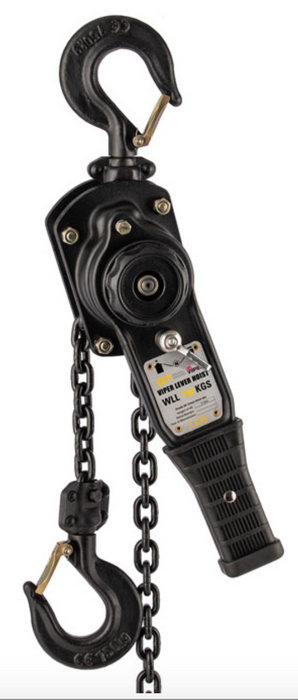

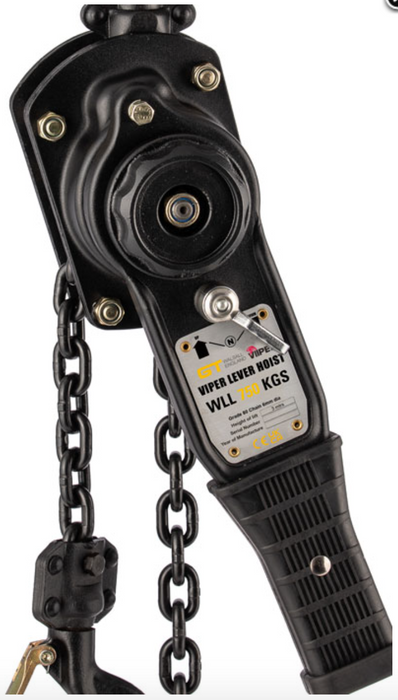

250kg Capacity GT Viper Lever Hoist
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
250kg Capacity GT Viper Lever Hoist
- Lightweight and robust ensuring reliability in every position.
- High grade steel body protects gears and brake system.
- Matt black finish.
- Meets the W.L.L. performance requirements of BS EN 13157.
- Minimum break load 4 times the W.L.L.
- Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
- Easy to use free wheel mechanism that enables chain to be pulled freely when not under load.
- Short arm lever and special gear ratio allows an easy lift with minimum stress and maximum security.
- Marked in accordance with BS EN 13157.
- Certification available
Spec

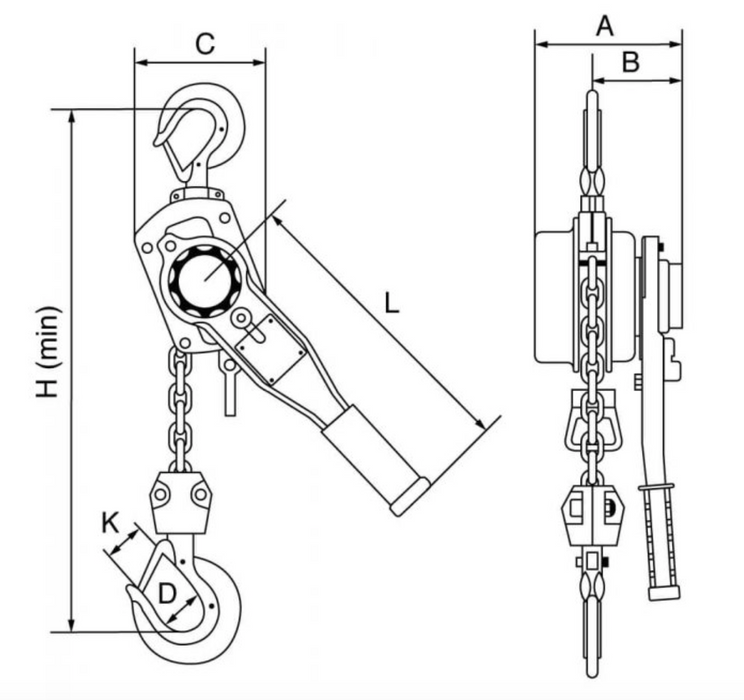

Product Code | Capacity | A | B | C | D | H | L | K | Load Chain | Falls of Chain | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1.5m | 3m | Carcase | kgs | mm | mm | mm | mm | mm | mm | mm | mm | |
VLH0.25T1.5 | VLH0.25T3 | VLH0.25TC | 250 | 119 | 79 | 90.5 | 31 | 237 | 168 | 24 | 4 x 12 | 1 |
VLH0.5T1.5 | VLH0.5T3 | VLH0.5TC | 500 | 130 | 83 | 112 | 36 | 283 | 178 | 25.5 | 5 x 15 | 1 |
VLH0.75T1.5 | VLH0.75T3 | VLH0.75TC | 750 | 148 | 90 | 136 | 40 | 320 | 250 | 28 | 6 x 18 | 1 |
VLH1T1.5 | VLH1T3 | VLH1TC | 1,000 | 148 | 90 | 136 | 40 | 320 | 250 | 28 | 6 x 18 | 1 |
VLH1.5T1.5 | VLH1.5T3 | VLH1.5TC | 1,500 | 172 | 98 | 160 | 44 | 380 | 300 | 38 | 8 x 24 | 1 |
VLH2T1.5 | VLH2T3 | VLH2TC | 2,000 | 180 | 105 | 160 | 46 | 380 | 300 | 38 | 8 x 24 | 1 |
VLH3T1.5 | VLH3T3 | VLH3TC | 3,000 | 200 | 115 | 180 | 50 | 480 | 375 | 42 | 10 x 30 | 1 |
VLH6T1.5 | VLH6T3 | VLH6TC | 6,000 | 200 | 115 | 235 | 64 | 600 | 375 | 50 | 10 x 30 | 2 |
VLH9T1.5 | VLH9T3 | VLH9TC | 9,000 | 200 | 115 | 335 | 85 | 740 | 410 | 57 | 10 x 30 | 3 |
Technical Data
Capacity | Running Test Load | Effort Req'd to Lift Rated Load | Weight | Extra Weight per mtr |
---|---|---|---|---|
kgs | kN | kN | kgs | kgs |
250 | 3.75 | 160 | 3.2 | 0.41 |
