GT Cobra Grade 80 Swivel Self Locking Hook

SKU 286-120-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $65.00 - Original price $473.00
Original price
$65.00
$65.00 - $473.00
Current price $65.00
Inc Vat
Chain Diameter: 7/8mm

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

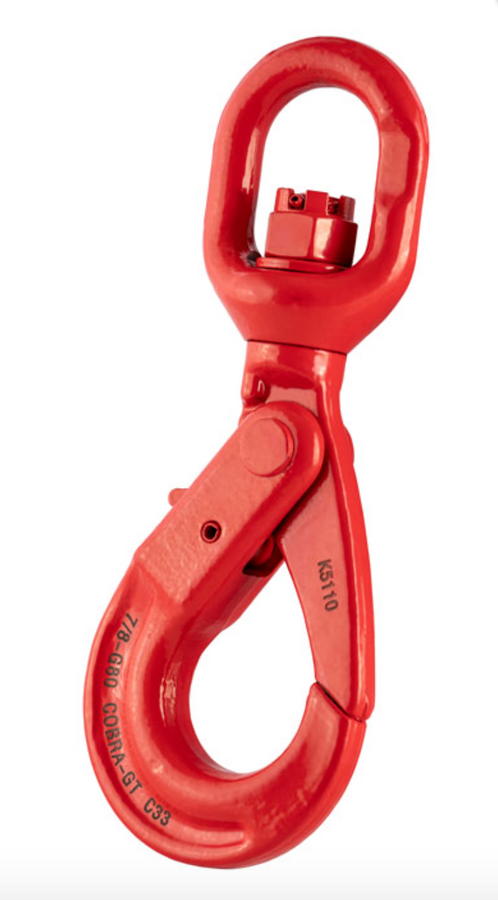

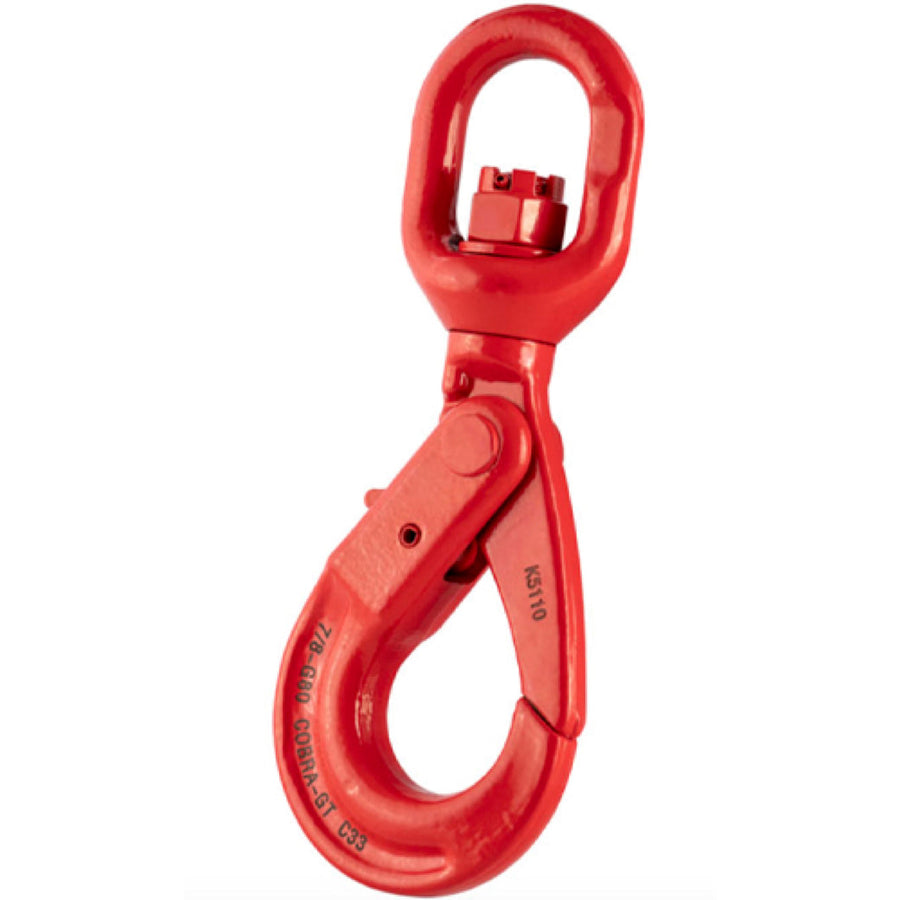

GT Cobra Grade 80 Swivel Self Locking Hook

  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Meets the W.L.L. performance requirements of BS EN 1677-3.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification available EC DoC



SKU

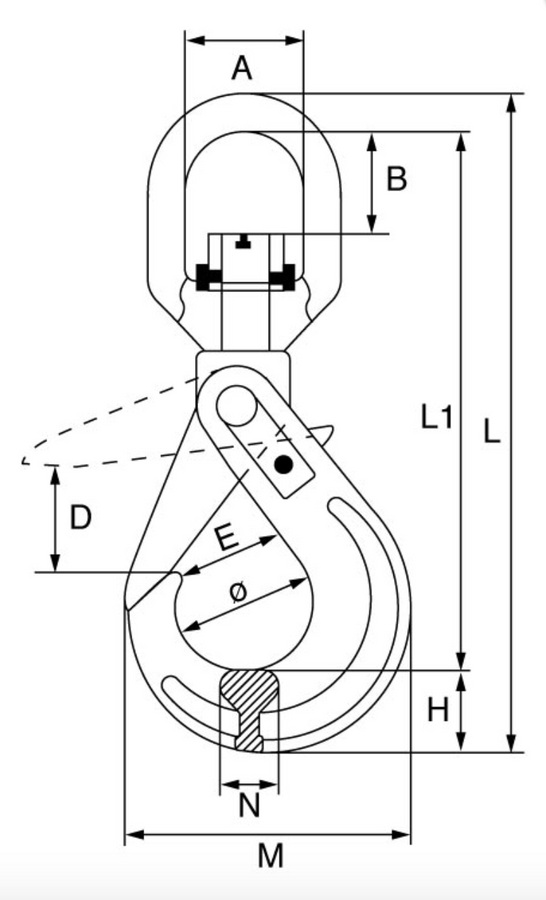

Part No. Chain Dia A B C E H L L1 M N Ø
mm mm mm mm mm mm mm mm mm mm mm
286-120-1
K5110 7/8 36 29.5 39 35.8 29.5 228 189 87 20 44
286-120-2
K5111 10 42 35 48 48 30 270 224 108 26 58
286-120-3
K5112 13 50 41 65 52.5 40 324 267 122 33 70
286-120-4
K5113 16 61 56.8 65 63.3 50.5 406 355.6 168.6 36 86
286-120-5
K5114 20 72 63 85 86 55 460 378 185 50 97



Technical Data

SKU Part No. Chain Dia W.L.L. M.P.L. M.B.L. Packing Qty Weight
mm t t t kgs
286-120-1 K5110 7/8 2 4 8 15 1.15
286-120-2 K5111 10 3.15 6.3 12.6 8 1.86
286-120-3 K5112 13 5.3 10.6 21.2 6 3.51
286-120-4 K5113 16 8 16 32 4 7.33
286-120-5 K5114 20 12.5 25 50 1 10.3
