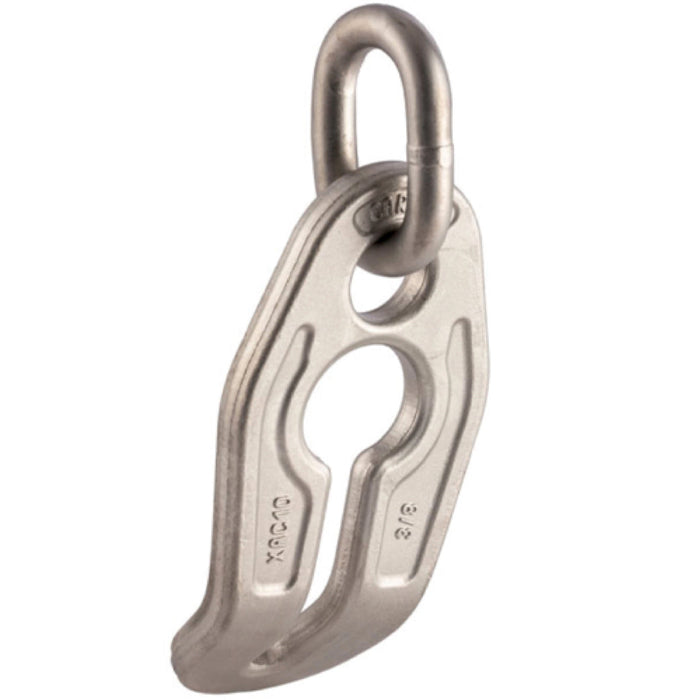

Cartec Grade 6 Shortening Clutch
by Cartec
SKU 286-316-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price
£143.75
-
Original price
£724.76
Original price
£143.75
£143.75
-
£724.76
Current price
£143.75
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
Grade 6 Shortening Clutch
- Grade 6, stainless steel, AISI 316L.
- Surface blasted, uniform smooth finish.
- Marked with CE, material grade, manufacturers ID, size, product ID mark and traceability code.
- Full CAD support available upon request.
- Certification available 2.1 DoC
Spec

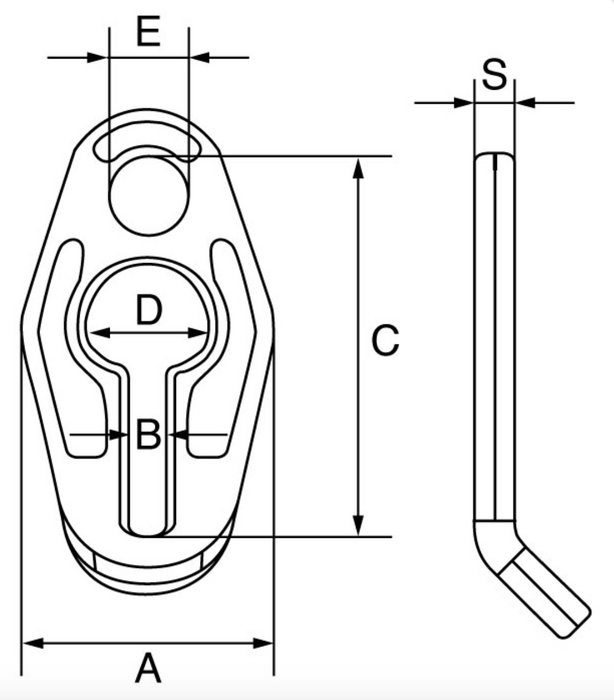

| SKU | Product Code | Part No. | Chain Dia | A | B | C | D | E | S |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |||
| 286-316-1 | G6SSSC6 | C6XAC06 | 5/6 | 55 | 8 | 81 | 26 | 16 | 8.5 |
| 286-316-2 | G6SSSC8 | C6XAC08 | 7/8 | 71 | 11 | 110 | 34 | 22 | 10.5 |
| 286-316-3 | G6SSSC10 | C6XAC10 | 10 | 90 | 12 | 135 | 40 | 26 | 13 |
| 286-316-4 | G6SSSC13 | C6XAC13 | 13 | 112 | 17 | 170 | 52 | 32 | 16.5 |
| 286-316-5 | G6SSSC16 | C6XAC16 | 16 | 135 | 20.5 | 202 | 64 | 38 | 20 |
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 5/6 | 0.9 | 18 | 36 | 0.25 |
| 7/8 | 1.6 | 32 | 63 | 0.59 |
| 10 | 2.5 | 50 | 99 | 1.13 |
| 13 | 4.25 | 84 | 167 | 2.37 |
| 16 | 6.3 | 124 | 248 | 4.12 |
