Cartec Grade 6 Dee Shackle with Screw Collar Pin

by Cartec
SKU 286-317-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $20.00 - Original price $708.00
Original price
$20.00
$20.00 - $708.00
Current price $20.00
Inc Vat
W.L.L.: 0.5t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

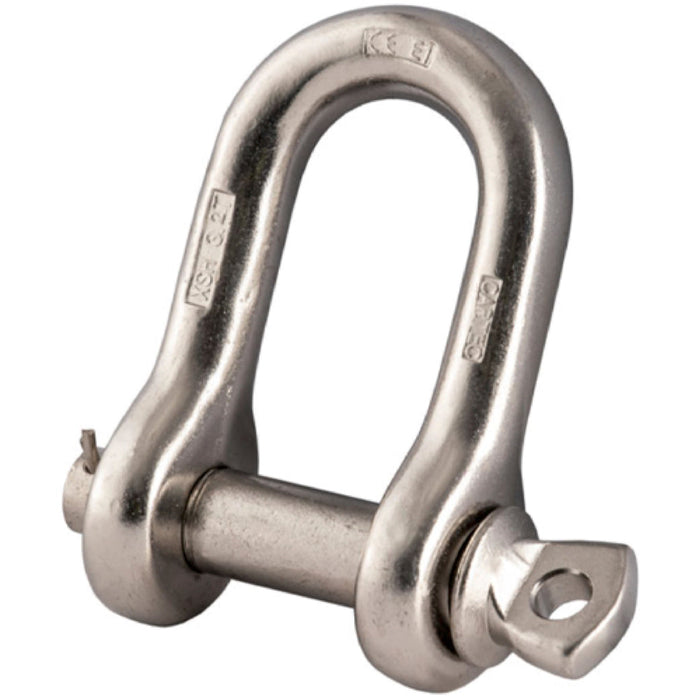

Grade 6 Dee Shackle with Screw Collar Pin
  • Grade 6, stainless steel, AISI 316L.
  • Surface blasted, uniform smooth finish.
  • Marked with CE, W.L.L, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC

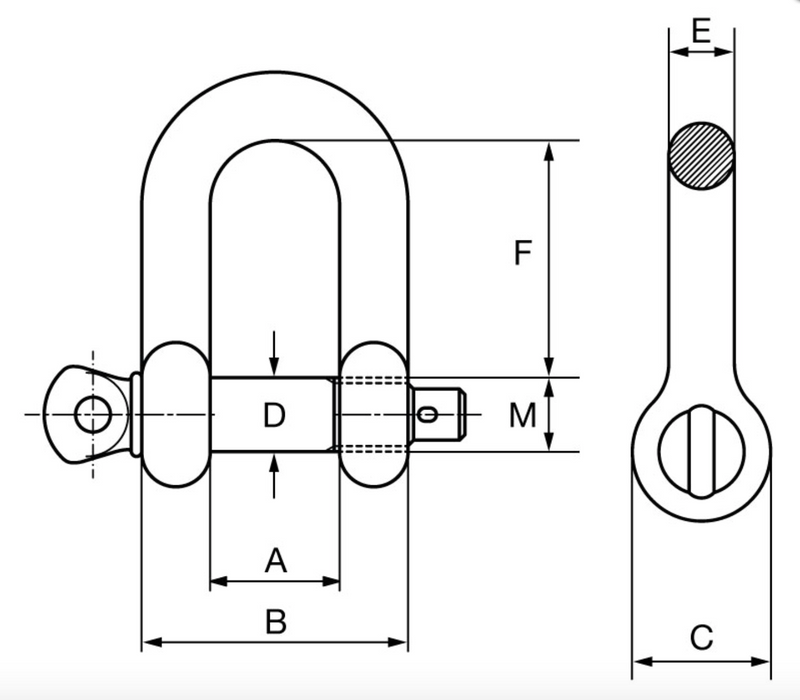

      Spec

      SKU Part No. A B C D E F M
      mm mm mm mm mm mm mm
      286-317-1 C6XSH005 18 34 18 9 8 33 M10
      286-317-2 C6XSH012 25 49 25 13 12 40 M14
      286-317-3 C6XSH020 32 64 32 17 16 60 M18
      286-317-4 C6XSH032 41 79 47 21 19 78 M22
      286-317-5 C6XSH050 56 106 60 29 25 109 M30
      286-317-6 C6XSH120 76 144 75 38 34 152

      M39



      SKU W.L.L. M.P.F. M.B.F. Weight
      t kN kN kgs
      286-317-1 0.5 10 20 0.07
      286-317-2 1.25 25 50 0.22
      286-317-3 2 40 79 0.52
      286-317-4 3.2 63 126 0.8
      286-317-5 5 99 197 2.2
      286-317-6 13 256 511 7
