Cartec Grade 6 Clevis Sling Hook c/w Safety Catch
by Cartec
SKU 286-314-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price
£166.51
-
Original price
£323.06
Original price
£166.51
£166.51
-
£323.06
Current price
£166.51
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
Grade 6 Clevis Sling Hook c/w Safety Catch
- Grade 6, stainless steel, AISI 316L.
- Surface blasted, uniform smooth finish.
- Marked with CE, material grade, manufacturers ID, size, product ID mark and traceability code.
- Full CAD support available upon request.
- Certification available 2.1 DoC

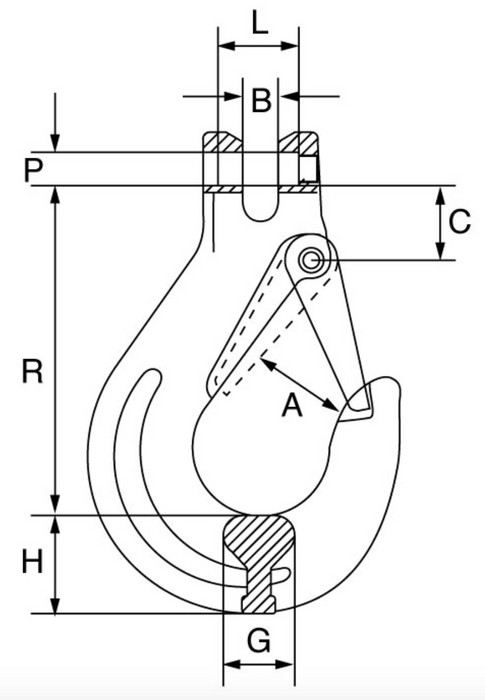

Spec
| SKU |
Part No. | Chain Dia | A | B | C | G | H | R | P x L |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-314-1 | C6XCB06SF | 6 | 23 | 7.2 | 8.5 | 13.5 | 21 | 81 | 8 x 19.5 |
| 286-314-2 | C6XCB07SF | 7 | 32 | 9.5 | 12 | 19.5 | 29 | 112 | 8 x 22.5 |
| 286-314-3 | C6XCB08SF | 8 | 32 | 9.5 | 11 | 19.5 | 29 | 111 | 10 x 22.5 |
| 286-314-4 | C6XCB10SF | 10 | 39 | 12 | 15 | 27 | 33 | 122 | 13 x 13.5 |
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-314-1 | 6 | 0.9 | 18 | 36 | 0.33 |
| 286-314-2 | 7 | 1.25 | 25 | 50 | 0.79 |
| 286-314-3 | 8 | 1.6 | 32 | 63 | 0.84 |
| 286-314-4 | 10 | 2.5 | 50 | 99 | 1.43 |
