Air motor AM5000 Ref: 156-24

by Gebuwin
SKU 156-24-3
Availability:
In stock
Original price $4,941.00 - Original price $4,941.00
Original price
$4,941.00
$4,941.00 - $4,941.00
Current price $4,941.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

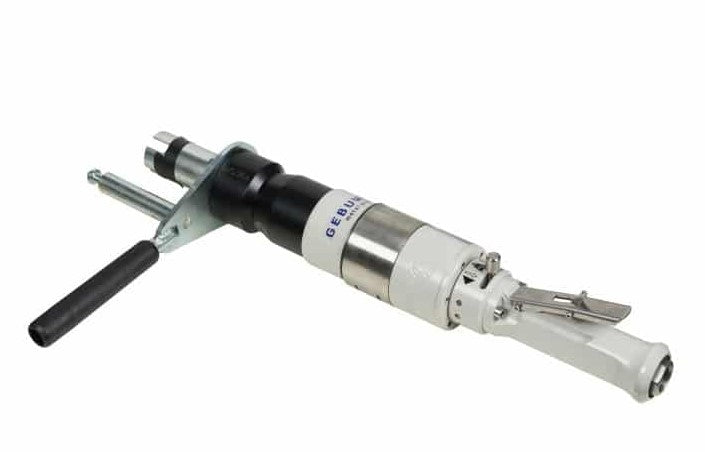

Air motor AM5000 Ref: 156-24

The auxiliary motors are used to provide an alternative for the hand operating of wormgear winches. Gebuwin supplies an air- and electric motor and both can easily be attached to the drive shaft. The air- or electric auxiliary motor can be used on the Gebuwin worm gear winches starting from 1000 kg. Hoisting speed will go twice as fast as by hand.

Spec

  • Note: the combination of a manual driven winch and a pneumatic auxiliary motor is not an alternative to an pneumatic driven winch
  • Robust slow speed drive units manufactured for non-frequent usage
  • Easy to operate for worm gear winches starting from 1,000 kg
  • Used on a location where several hand winches need to be operated
  • Filter and hose fitting are included
  • Zinc plated winch adapter system
  • Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M


Technical specifications AM5000
Power (W) 1200
Air pressure (bar) Max. 6-8
Free speed (rpm) 140
Speed at max. power (torque) (rpm) 60  (60-90 Nm)
Dimension L x H x B (mm) 545 x 76 x 277
Own weight (kg) 5
Air consumption at max power (l/min) 2100
Min. fitting/hose diameter (inside) (mm) 10,4/15
