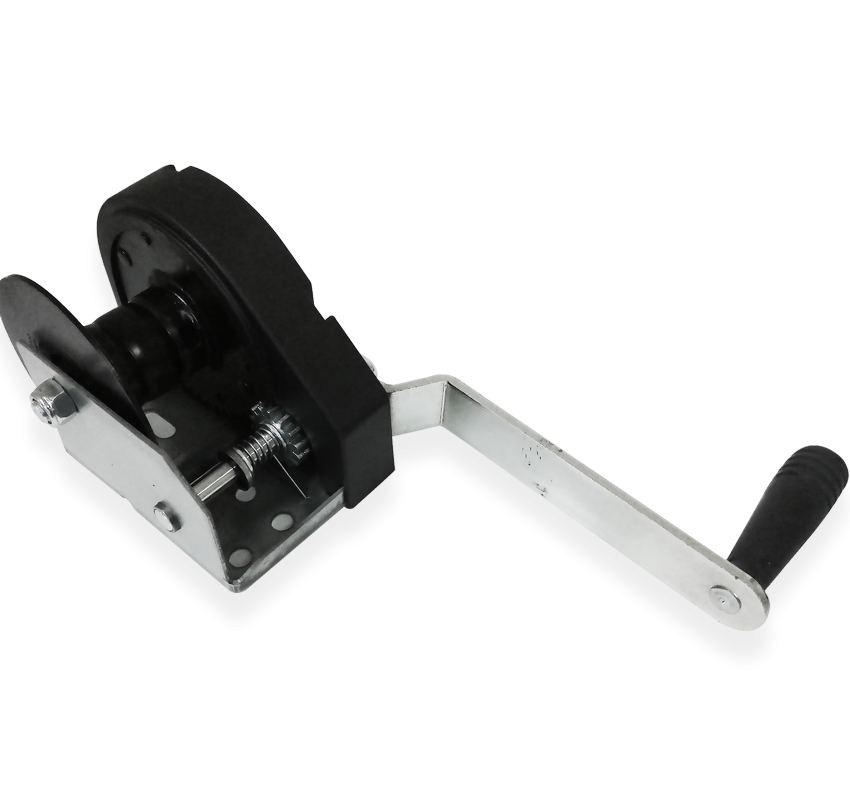

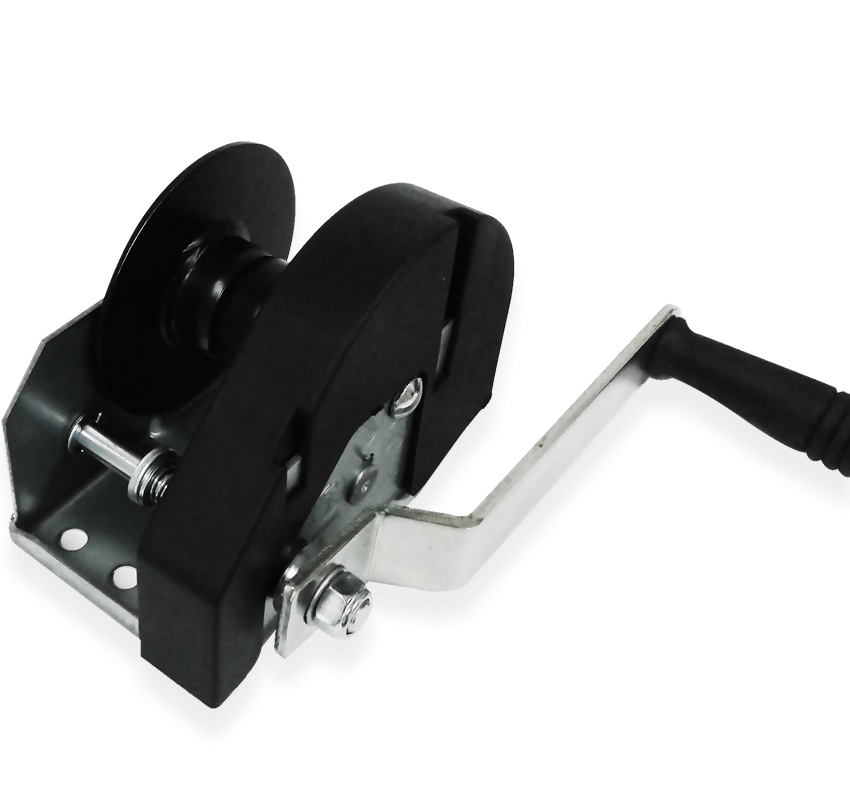

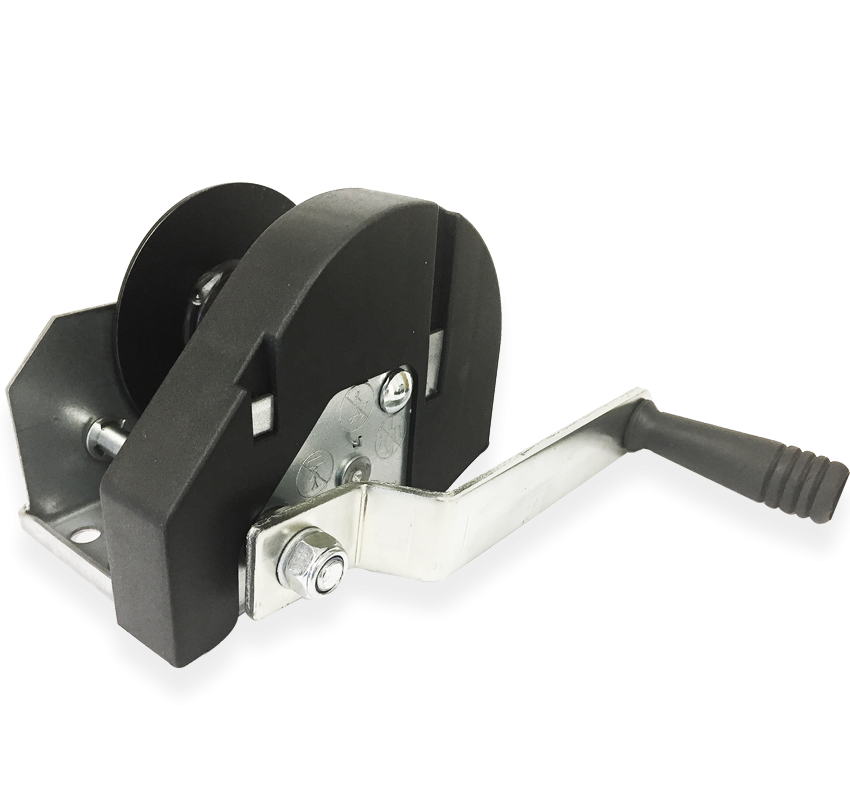

The Goliath TR9 cable winch is a compact self-braking wire winch with a 485kg first layer capacity, set up to run 5mm steel cable for pulling and lifting.
Goliath TR9 cable winch with 485kg first layer capacity
-
First layer capacity 485kg, last layer capacity 240kg
-
Suits 5mm diameter cable to 12m, or 4mm cable to 20m
-
Patented permanent self-braking system for controlled loads
-
Single speed with a 1 to 3.5 reduction ratio
-
45mm drum hub sized for wire cable
-
Light 2.6kg body with a fixed handle and double cover
-
Rolling load capacity 750kg on a 20 percent slope
Cable winch fitting and standards
-
Horizontal setup with a fixed hand drive
-
Meets the EN13157 A1 standard for CE marked winches
-
Set up for wire cable rather than webbing strap
For a webbing version choose the TR9 strap winch, or compare more brake winches and mid capacity units in the 201kg to 500kg manual winch range.
Specification
| Type |
TR9 |
| SKU |
151-15-11 |
| Lifting Capacity 1st Layer: |
485kg
|
| Lifting Capacity Last Layer: |
240kg |
| Cable 1 Ø (mm) / length (m) |
5 / 12 |
| Cable 2 Ø (mm) / length (m) |
4 / 20 |
| Number of Speeds |
1 |
| Reduction Ratio 1 |
1/3.5 |
| Reduction Ratio 2 |
- |
| Reduction Ratio 3 |
- |
| Drum Hub Ø |
45mm |
| Rolling Load Capacity Slope 20% (kg) |
750 |
| Type of Winch |
Horiz. Setup/Fix Hand
|
| Handle |
Fixed
|
| Handle Length: |
-
|
| Weight: |
2.6kg
|
Downloads:


Legislation
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
