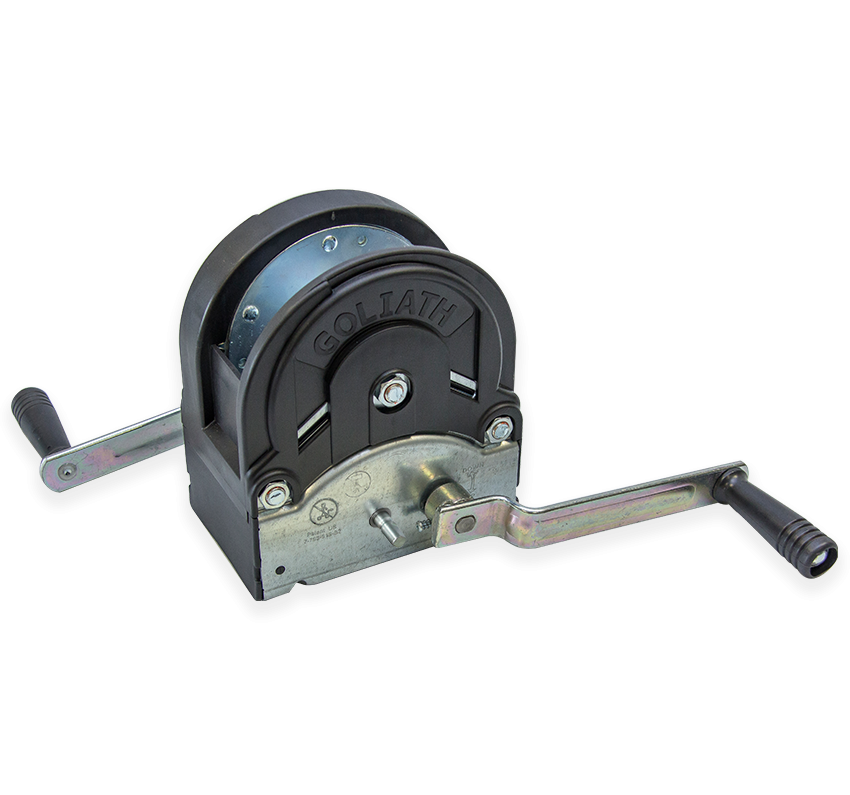

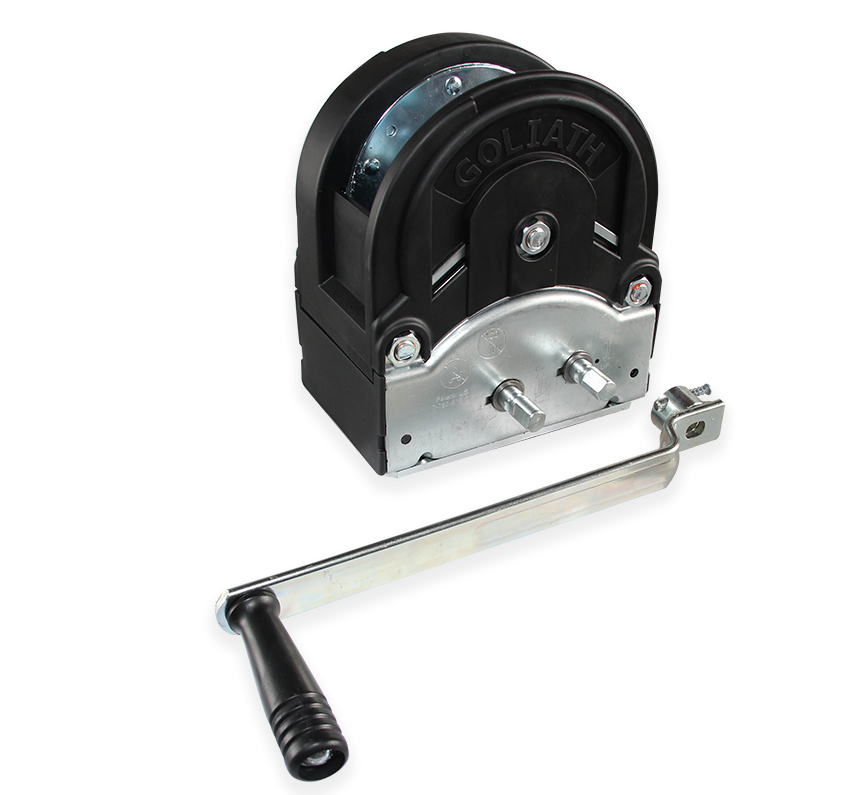

Goliath TPV Wire Rope Hand Winch

by Goliath
SKU 151-15-1
Availability:
4 in stock, ready to be shipped
Availability:
3 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Original price £132.00 - Original price £480.00
Original price
£132.00
£132.00 - £480.00
Current price £132.00

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Goliath TPV Wire Rope Hand Winch

TPV Winches with new generation high safety self-braking system.

- Lifting capacity up to 2,400kg
- Towing capacity up to 3,000kg
- Double speed, protection cover
- Handle: fixed, removable, two, left and right
- Quick cable mounting

 - Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate

GOLIATH has been designing and making, for more than 30 years, winches that are used in a great number of industries.

The manual winch is a safety device governed by strict technical rules and whose design is framed by the European standard EN13157 A1.

Spec

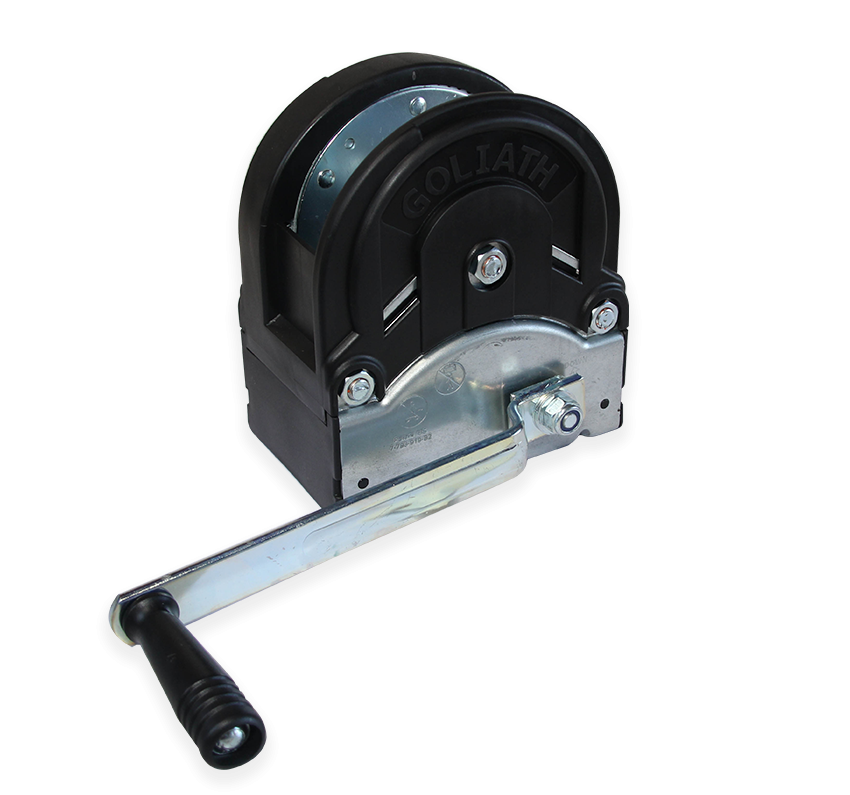

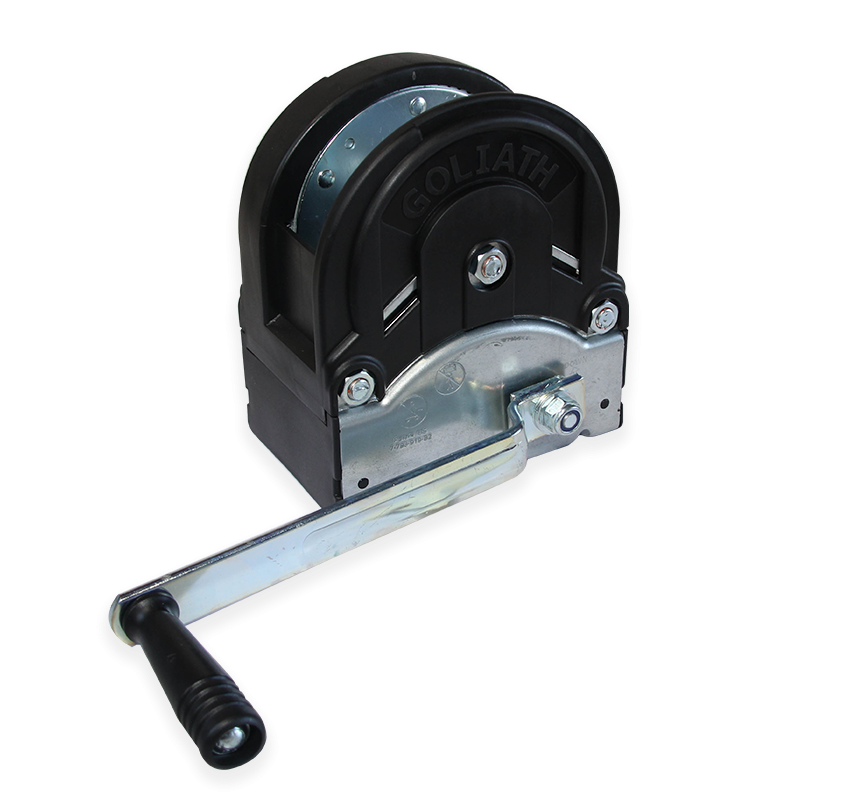

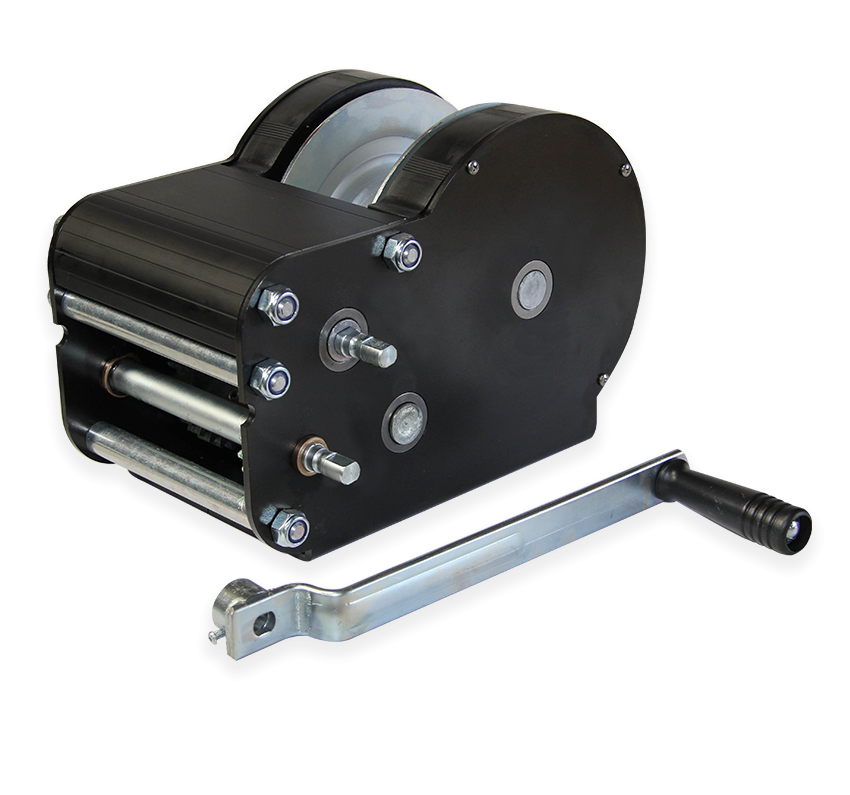

 Type TPV900 TPV1200 TPV1600 TPV2200 TPV3000 TPV1600/2 TPV2200/2
SKU
151-15-1 151-15-2 151-15-3 151-15-4 151-15-5 151-15-6 151-15-7
Lifting Capacity 1st Layer: 700kg 900kg 900kg 1040kg 2400kg 900kg 1040kg
Lifting Capacity Last Layer: 325kg 500kg 560kg 650kg 1500kg 560kg 650kg
Cable 1 Ø (mm) / length (m) 6 / 16 7 / 10 7 / 10 8 / 10 9 / 10 7 / 10 8 / 10
Cable 2 Ø (mm) / length (m) 5 / 21 6 / 13 6 / 13 7 / 10 8 / 10 6 / 13 7 / 10
Number of Speeds 1 1 2 2 2 2 2
Reduction Ratio 1 1/4.85 1/9.71 1/4.85 1/4.85 1/10 1/4.85 1/4.85
Reduction Ratio 2 - - 1/9.71 1/9.71 1/21.77 1/9.71 1/9.71
Reduction Ratio 3 - - - - - - -
Drum Hub Ø 54mm 63mm 63mm 72mm 80mm 63mm 72mm
Type of Winch Horiz. Setup/Fix Hand Horiz. Setup/Fix Hand Horiz. Setup/Rem. Hand Horiz. Setup/Rem. Hand Horiz. Setup/Rem. Hand Right/Left Hand Right/Left Hand
Handle Fixed Fixed Removable Removable Removable Double. Right/Left Double, Right/Left
Handle Length: - - 290mm 290mm 290mm 200mm 290mm
Weight: 5.1kg 6.7kg 6.6kg 6.7kg 20kg 6.2kg 6.7kg



 Downloads:


Legislation

The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
