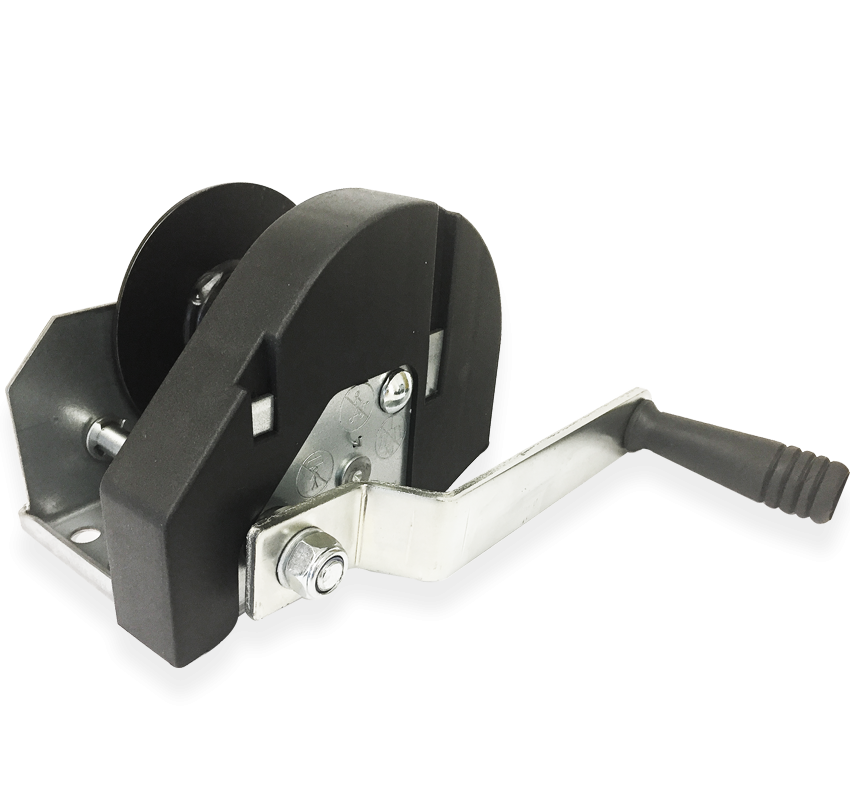

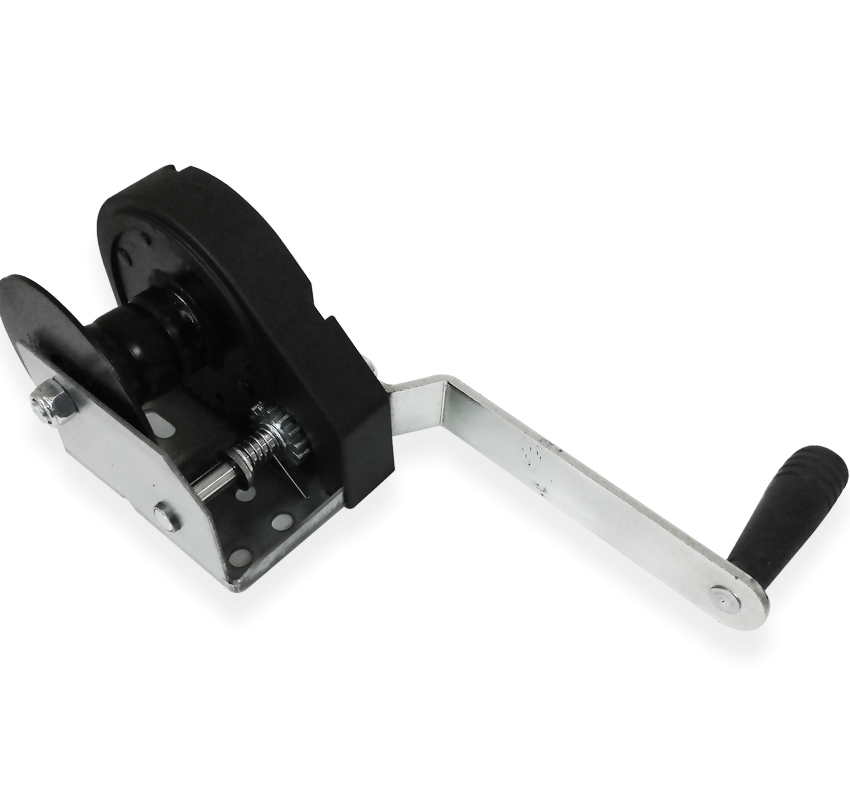

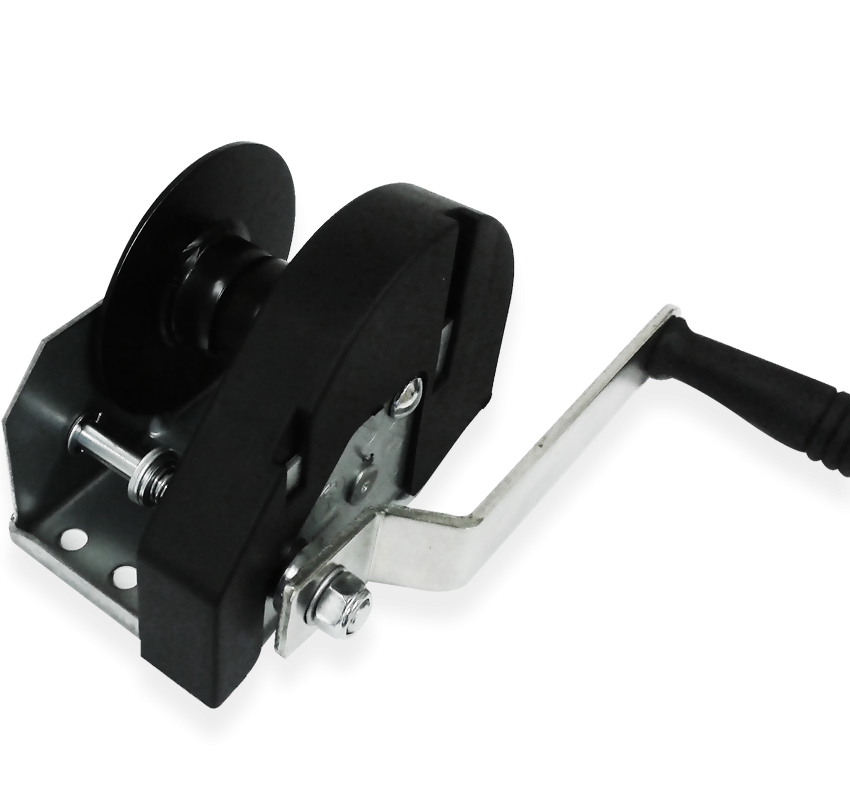

The Goliath TR9 strap winch is a compact self-braking webbing winch with a 485kg first layer capacity, built to run a 48mm wide strap for pulling and load control.
Goliath TR9 strap winch with 485kg first layer capacity
-
First layer capacity 485kg, last layer capacity 240kg
-
Runs a 6.5m long by 48mm wide webbing strap
-
Patented permanent self-braking system for controlled loads
-
Single speed with a 1 to 3.5 reduction ratio
-
45mm drum hub sized for webbing
-
Light 2.6kg body with a fixed handle and double cover
-
Rolling load capacity 750kg on a 20 percent slope
Strap winch fitting and standards
-
Horizontal setup with a fixed hand drive
-
Meets the EN13157 A1 standard for CE marked winches
-
Set up for webbing strap rather than wire cable
For a wire version choose the TR9 cable winch, or see more webbing options in the manual webbing winch range and other brake winches.
Specification
| Type |
TR9 |
| SKU |
151-15-10 |
| Lifting Capacity 1st Layer: |
485kg
|
| Lifting Capacity Last Layer: |
240kg |
| Strap Length (m) |
6.5 |
| Strap Width (mm) |
48 |
| Number of Speeds |
1 |
| Reduction Ratio 1 |
1/3.5 |
| Reduction Ratio 2 |
- |
| Reduction Ratio 3 |
- |
| Drum Hub Ø |
45mm |
| Rolling Load Capacity Slope 20% (kg) |
750 |
| Type of Winch |
Horiz. Setup/Fix Hand
|
| Handle |
Fixed
|
| Handle Length: |
-
|
| Weight: |
2.6kg |
Downloads:


Legislation
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
