IMER G500 Scaffold Hoist 500kg - 110v

SKU 294-2-13
In stock
Original price £2,214.00 - Original price £2,214.00
Original price
£2,214.00 - £2,214.00
Current price £2,214.00

Palletised Delivery Service

These goods will be delivered by our dedicated Palletised carrier service.

Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at

IMER G500 Scaffold Hoist 500kg - 110v - 42m High Capacity

Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed: 17 m/min. Max. capacity 500kg

Thanks to their sturdy structure and powerful motor, G500 and G1000 are particularly suitable for heavy duty use on site.

  • Single-phase 110V/50Hz electric motor
  • IP67 plug
  • Frame with 4 steel wheels
  • Upper limit safety device
  • Direct control with 3-push button IP65 1.5-m pendant control
  • Positioning brake
  • Self-braking motor with magnetic device


Available to buy as part of a Complete Gantry Hoist Kit (294-2-21)

110v (294-2-13) and 230v (294-2-14) versions available.

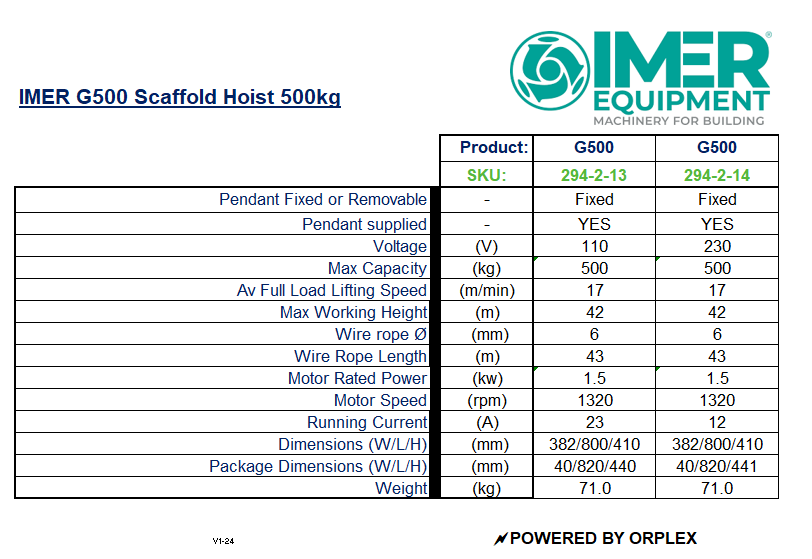

SKU 294-2-13
Max Capacity kg 500
Av. Full Load Lifting Speed m/min 17
Max. Working Height m 42
Steel Rope Dia. mm 6
Rope Length m 43
Electric Power Supply V /Hz 230 / 50 Sph 230 / 60 SPh  110 / 50 Sph
Motor Power Rate kW 1.5
Motor Speed rpm 1320
Running Current 230v (110v) A 12 (23)
Weight kg 71
Dimensions w/l/h mm 382/800/410
Packing Dimensions w/l/h mm 400/820/440
