Battery Capstan Winch 1000kg PCW3000-Li (Winch Only)


SKU :167-1-1A

PCW3000-LI Battery Portable Capstan Winch 1000kg Ref: 167-1-1A


Featuring a 1.0 KW brushless electric motor that accepts 82 Volts Lithium-Ion batteries, from 2 to 6 amperes, this powerful and reliable winch is compatible with other battery-powered tools.

It is always ready to be used since it is zero maintenance. It is then perfect for quick or unplanned jobs. Ideal for seasonal and/or less frequent usage. Moreover, it can be used indoors! Ideal for pulling in cables for example.

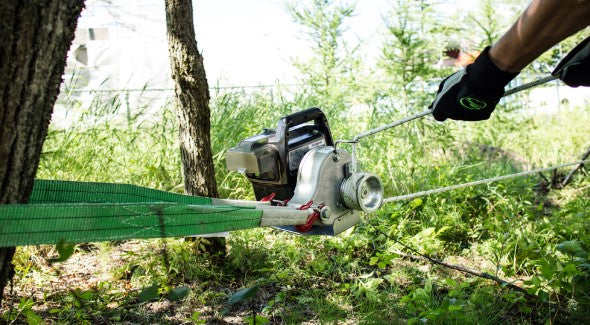

Reaching up to 1000 kg of pulling force, it will allow you to achieve laborious tasks with ease. It can be anchored anywhere in a few seconds. Once the winch is anchored, all that is left to do is to wrap the rope around the drum and start pulling.

Weighing only 9.5 kg, it can be carried wherever it is needed and can be used with any lengths of 10 mm diameter double-braided polyester rope.

The winch has 3 speeds :

  • Speed 1: 8.1 m/min
  • Speed 2: 10 m/min
  • Speed 3: 11.6 m/min

The PCW3000-Li will meet your needs in many situations, in all land conditions.

Regarding its autonomy, it varies depending on the battery, the speed and the load weight. Thus, between 20 and 40 minutes.

Portable Winch Co. also offers the transport bag (PCA-0106) in order to store and carry your winch and accessories.

Does not include batteries or charger which can be purchased separately or as part of a kit by following this link

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

Private use : 2 years
Commercial use : 1 year
Battery and Charger Warranty covered by Briggs & Stratton Dealer Network

Additional information : Register your winch at and get 1 EXTRA YEAR of warranty for FREE !


PCW3000-LI Battery Winch (ONLY) 1000kg

Max Pull Capacity 1000kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 76mm. Up to 4 turns of line 10 mm.
Speed with Installed Capstan 11.6 m/min
Rope Size Min 10mm | Max 16mm | Ideal 10mm
Engine/Motor 1.0 KW Electric Motor - all 82V maximum
Gear Ratio 200:1
Dry Weight 9.5kg (excluding Battery)
Dimensions (Overall) 30.2 cm x 31.8 cm x 31.0 cm
Protection Class IPX3 (protection against rainwater)

Tech Area

  User Guide




Customer Reviews

Based on 1 review
Dan Ogden
Little but has loads of power

When this arrived I looked at it thought no way will thay do what we need it To. But I was mistaken. What a brilliant bit of kit. So powerful for its size. We are an electrical contractors and have used this to pull cables in. Would highly recommend
