Wire Rope Grip BS EN Style - Type A

by GT
SKU 286-800-1
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $1.00 - Original price $21.00
Original price
$1.00
$1.00 - $21.00
Current price $1.00
Inc Vat
Rope Diameter: 5mm

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

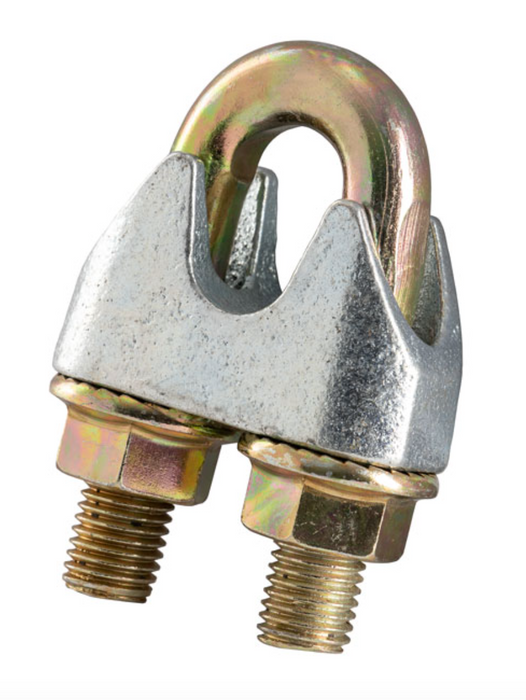

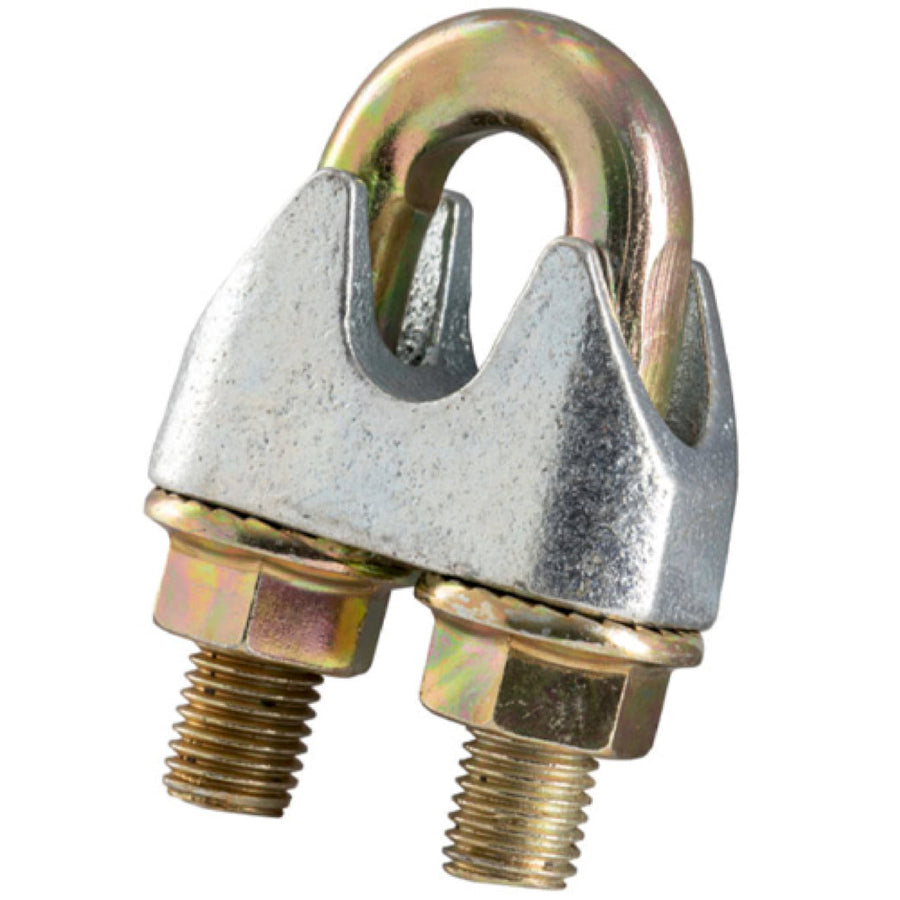

Wire Rope Grip BS EN Style - Type A

  • Malleable steel ungrooved bridge. Mild steel u-bolt and nuts.
  • Electro galvanised finish.
  • Meets the performance requirements of BS EN 13411 Part 5 Type A (Formerly DIN 1142). 13mm is additional and proportional to the standard.*
  • Marked with size on bridge and manufacturers ID on bridge and U bolt.
  • Certification available DoC

Spec

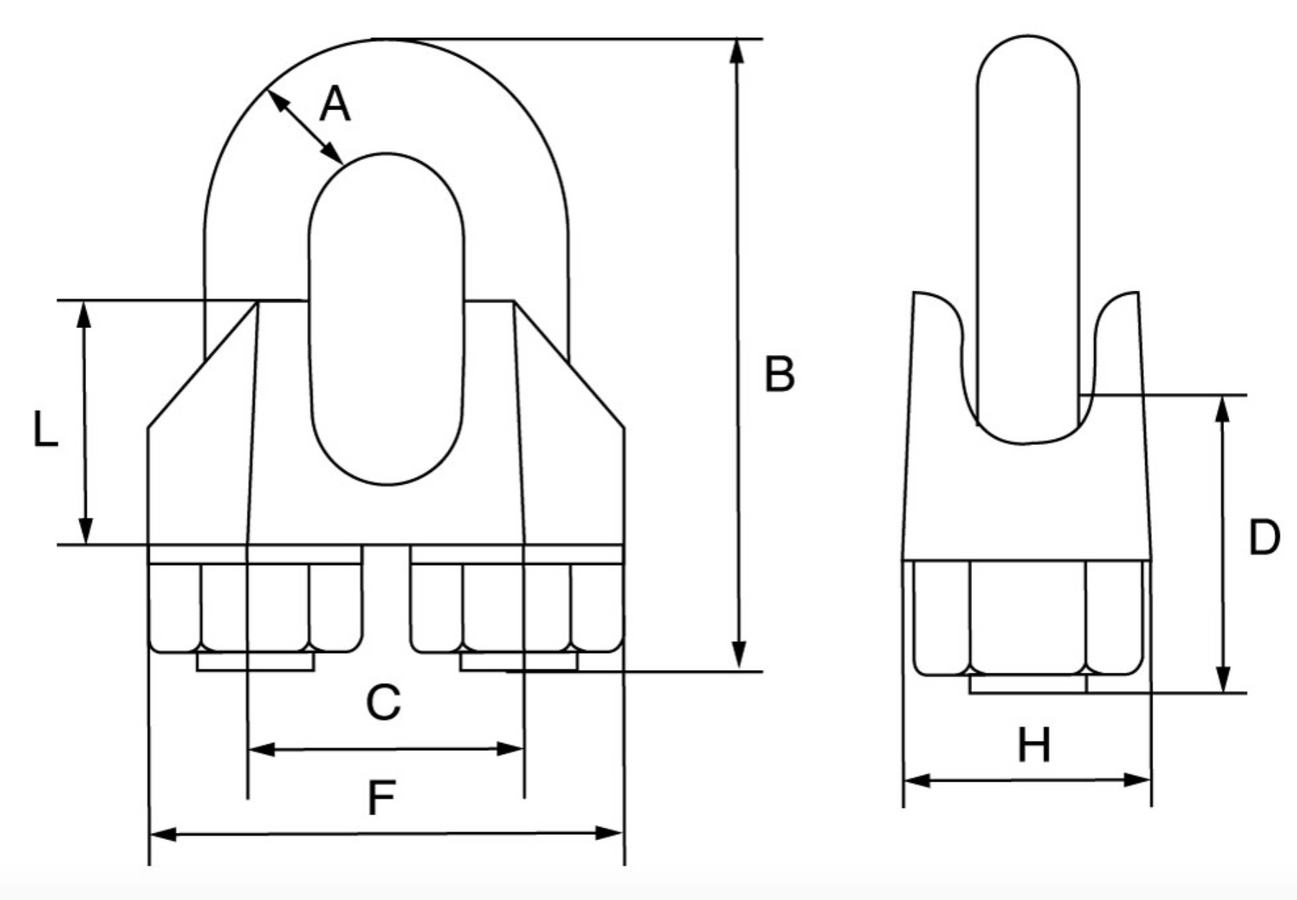

SKU Rope Dia A B C D F H L Weight
mm mm mm mm mm mm mm mm kgs/100
286-800-1 5 5 25 12 13 25 13 13 2.1
286-800-2 6.5 6 32 14 17 30 16 14 4
286-800-3 8 8 41 18 20 39 20 18 8.2
286-800-4 10 8 46 20 24 40 20 21 9.2
286-800-5 12 10 56 24 28 50 24 25 25
286-800-6 13 12 64 27 30 55 28 29 27.5
286-800-7 14 12 66 28 31 59 28 30 35
286-800-8 16 14 76 32 35 64 32 35 43
286-800-9 19 14 83 36 36 68 32 40 49
286-800-10 22 16 96 40 40 74 34 44 68
286-800-11 26 20 111 46 50 84 38 51 117
286-800-12 30 20 127 54 55 95 41 59 140
286-800-13 34 22 141 60 60 105 45 67 213
286-800-14 40 24 159 68 65 117 49 77 268
