Galvanised Cast Iron Double Groove Pulley ETT-74D | 300–800kg Capacity

SKU 155-5-2
Availability:
5 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
Only 1 left!
Availability:
2 in stock, ready to be shipped
Availability:
Out of stock
Original price £74.16 - Original price £185.40
Original price
£92.70
£74.16 - £185.40
Current price £92.70

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Description

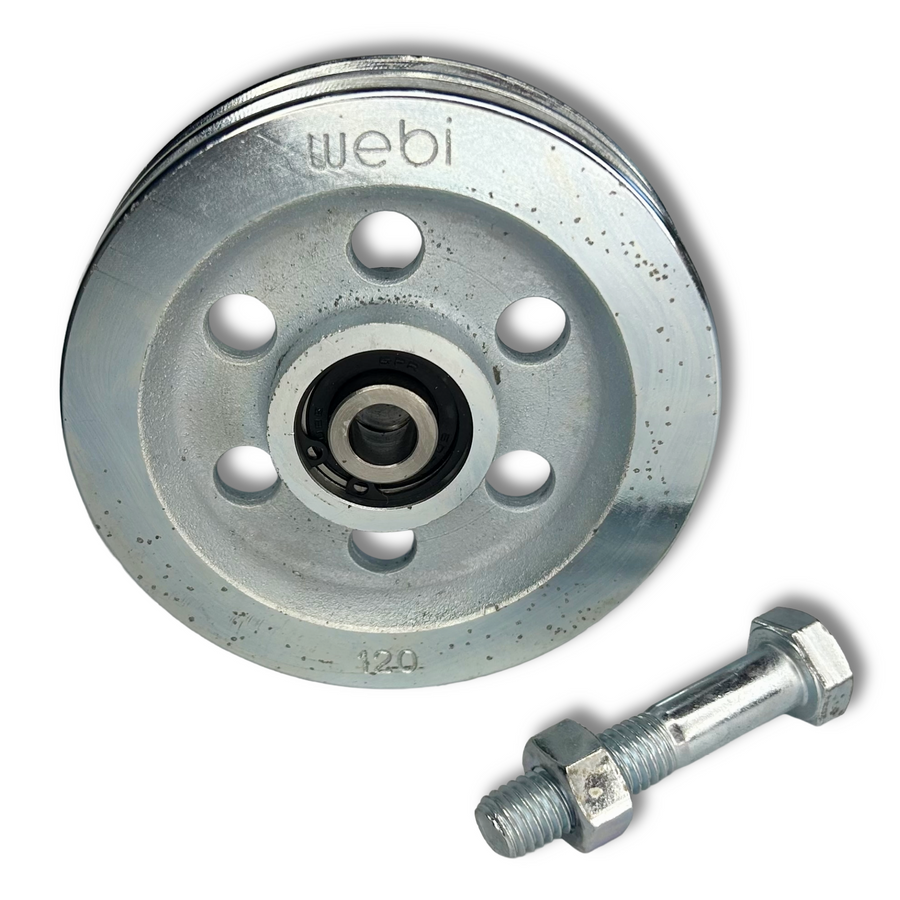

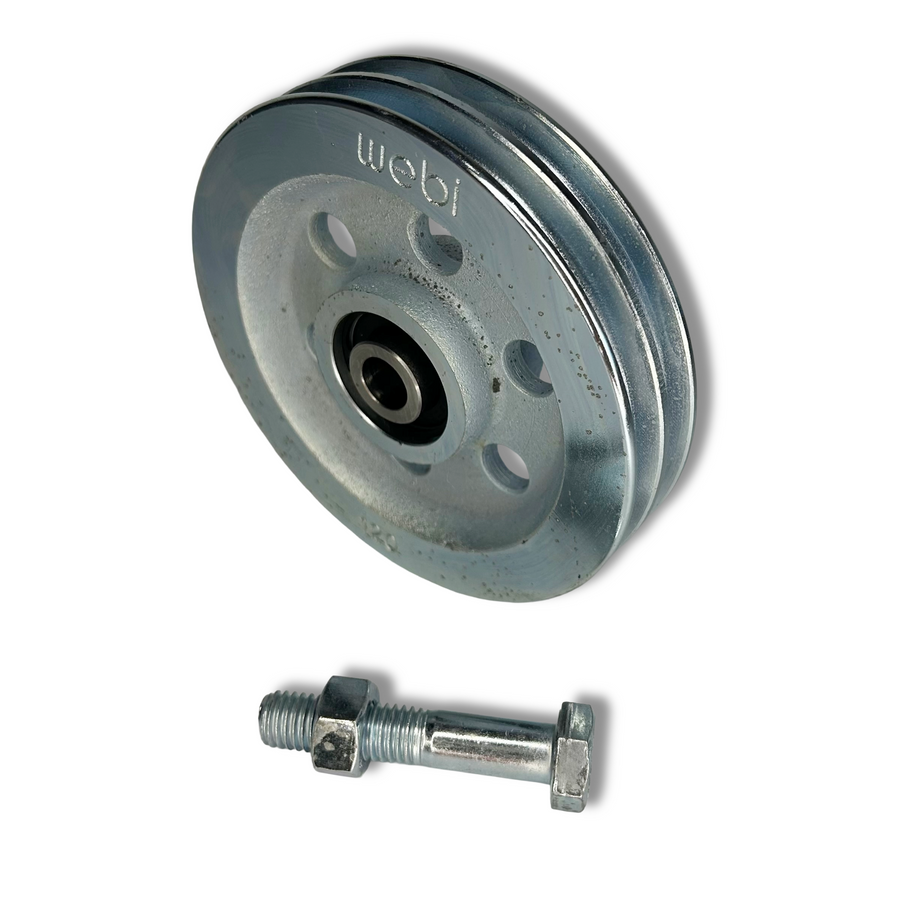

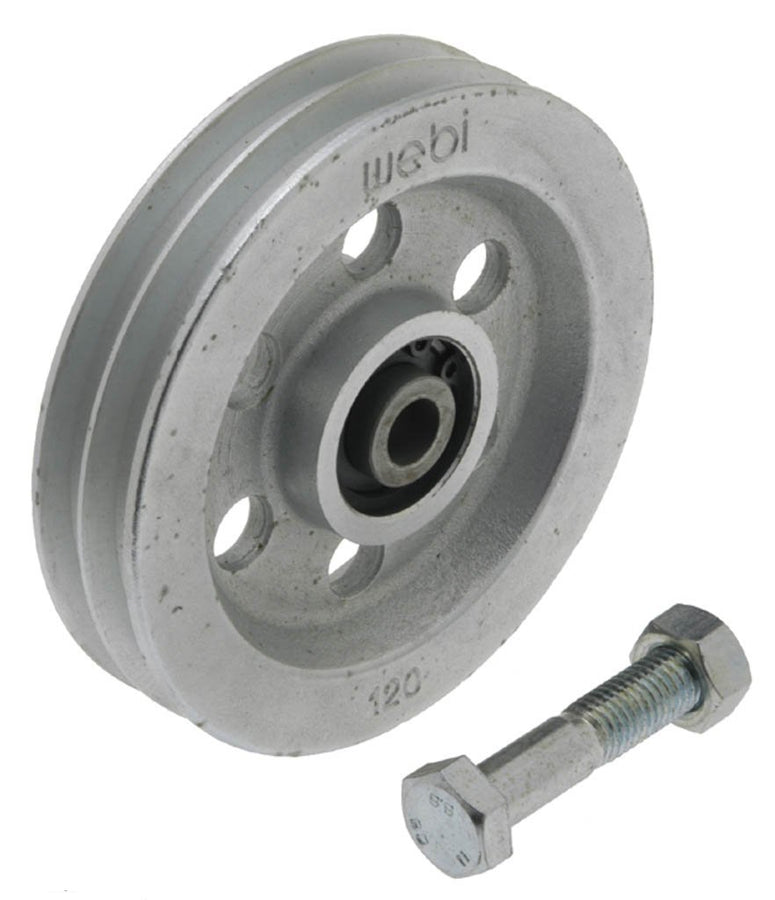

WEBI Galvanised Cast Iron Double Groove Pulley, Type ETT-74D - Capacities 300kg - 800kg

The WEBI Type ETT-74D double groove pulley is a heavy-duty galvanised cast iron sheave designed for reliable rope diversion in winching and lifting applications. Featuring a twin-groove design, it allows smooth guidance of wire rope where dual runs or improved stability are required.

Designed for use with manual and powered winches, this Swiss made ETTER pulley provides strength, corrosion resistance and long service life. Four model types are available from UK stock, with the 800kg model available to pre-order via sales enquiry.

Key Features

  • WEBI Pulley / Sheave with double groove
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Available in 5 capacities from 300 kg to 800 kg
  • To suit 5 mm - 6.5 mm wire rope
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • All pulleys of type ETT-74D are equipped with ball bearings of type 6002-2RS in all diameters.
  • SWISS MADE "ETTER - Webi"
Back to top

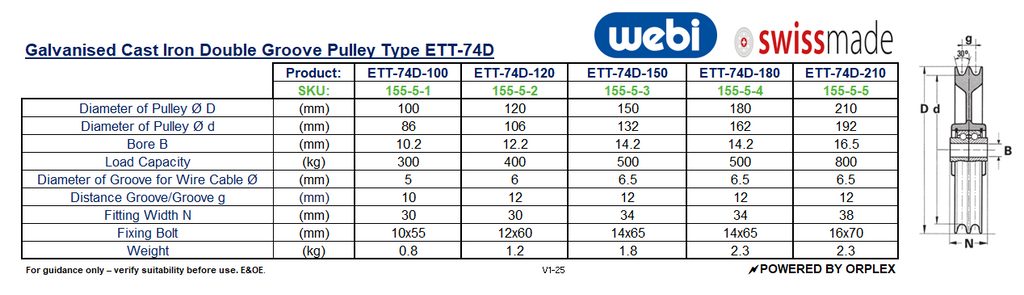

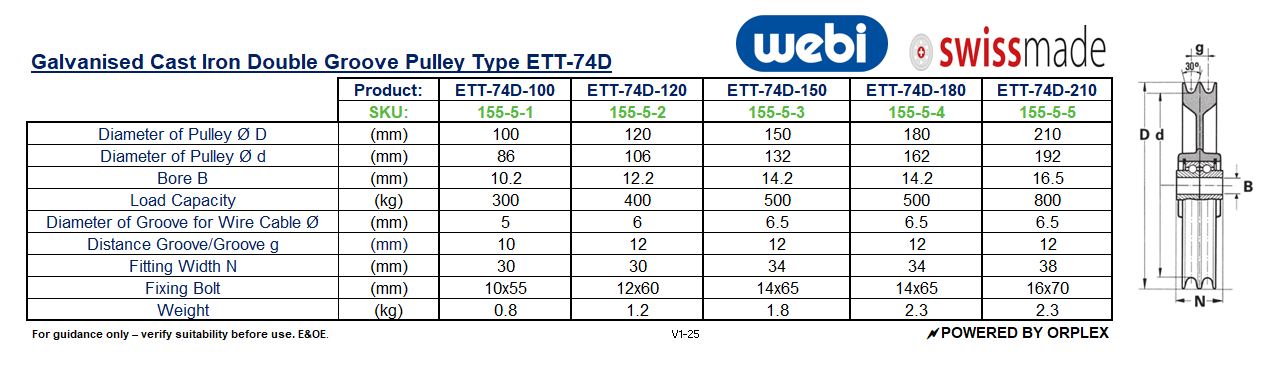

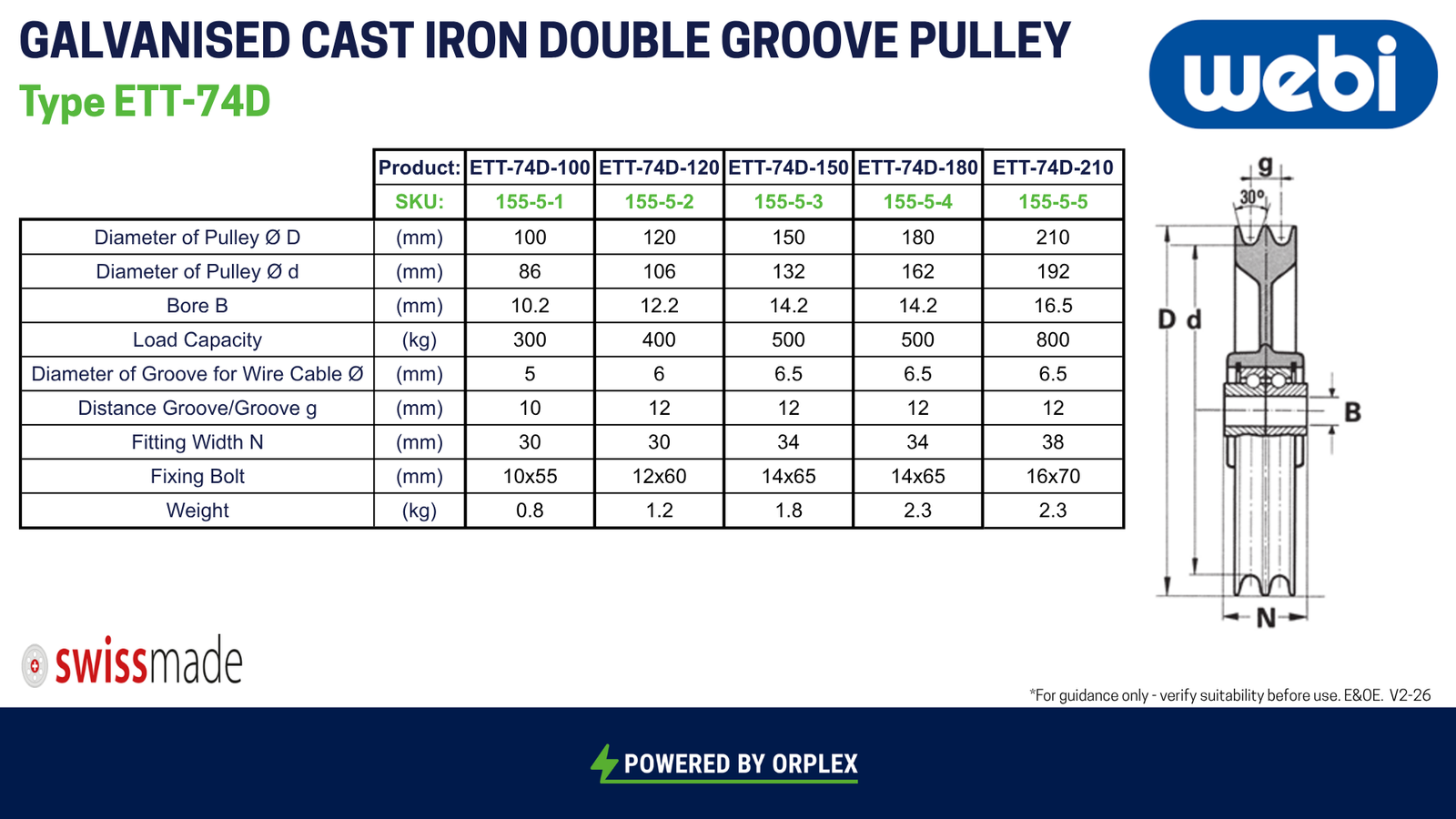

Specification

Specification
