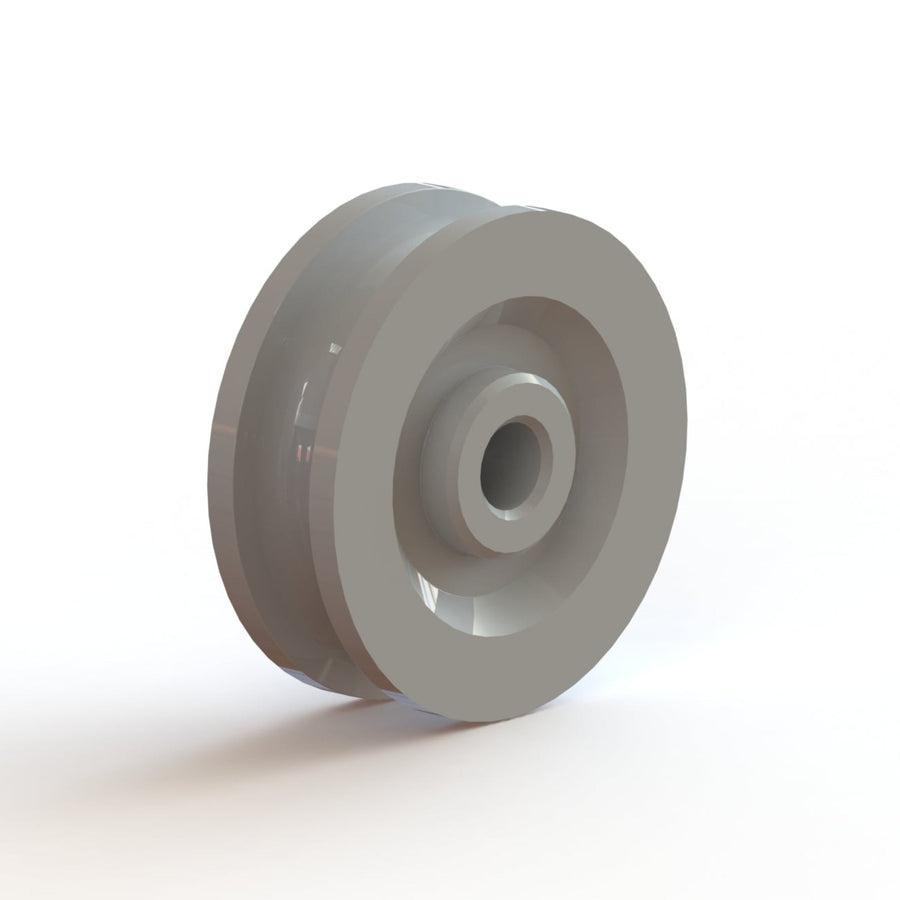

Polymide (PA 6 white) Pulley Type ETT-190P : 20-90kg

SKU 155-9-1
Availability:
24 in stock, ready to be shipped
Availability:
39 in stock, ready to be shipped
Availability:
36 in stock, ready to be shipped
Availability:
24 in stock, ready to be shipped
Availability:
42 in stock, ready to be shipped
Availability:
15 in stock, ready to be shipped
Availability:
23 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Original price £2.40 - Original price £18.00
Original price
£2.40
£2.40 - £18.00
Current price £2.40

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Description

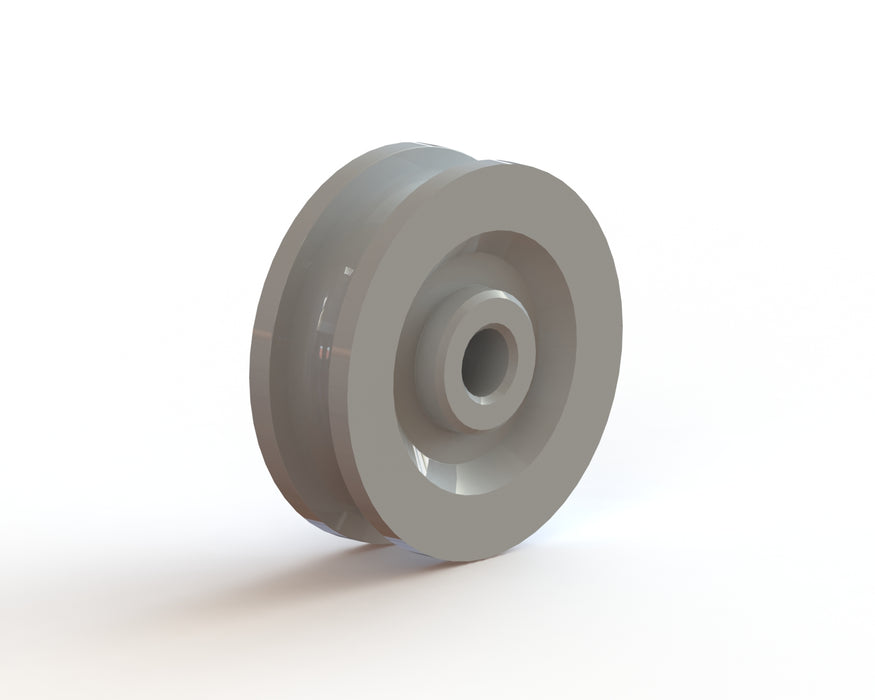

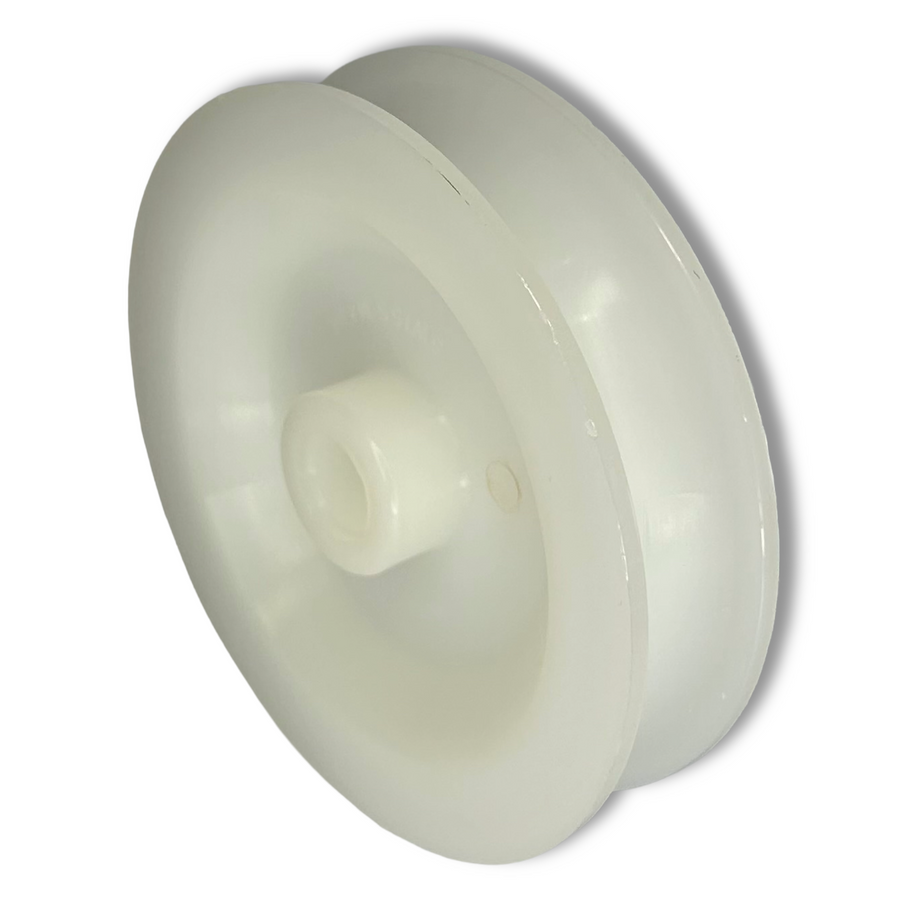

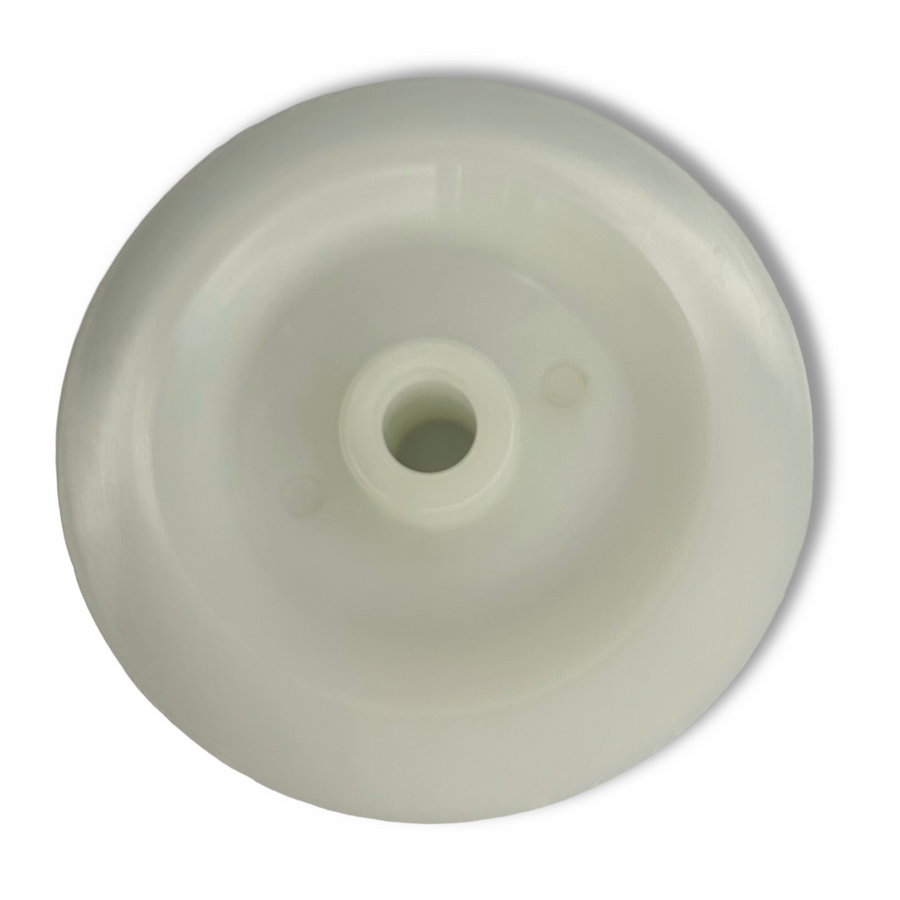

WEBI Pulley, Type ETT-190P- Polymide (PA 6 white) Pulley (ETTER) Ref: 155-9

  • WEBI, Polyamide (PA 6 white)/ Nylon)  pulley - Type ETT-190P
  • The 190P range has capacities from 20kg - to 140kg
  • Eight models, to suit 4 through to 16mm hemp or synthetic rope (see specification PDF for full details)
  • For use with where diversion of rope is required.
  • SWISS MADE "ETTER"
  • All eight model types available from stock
  • Quick ref 155-9

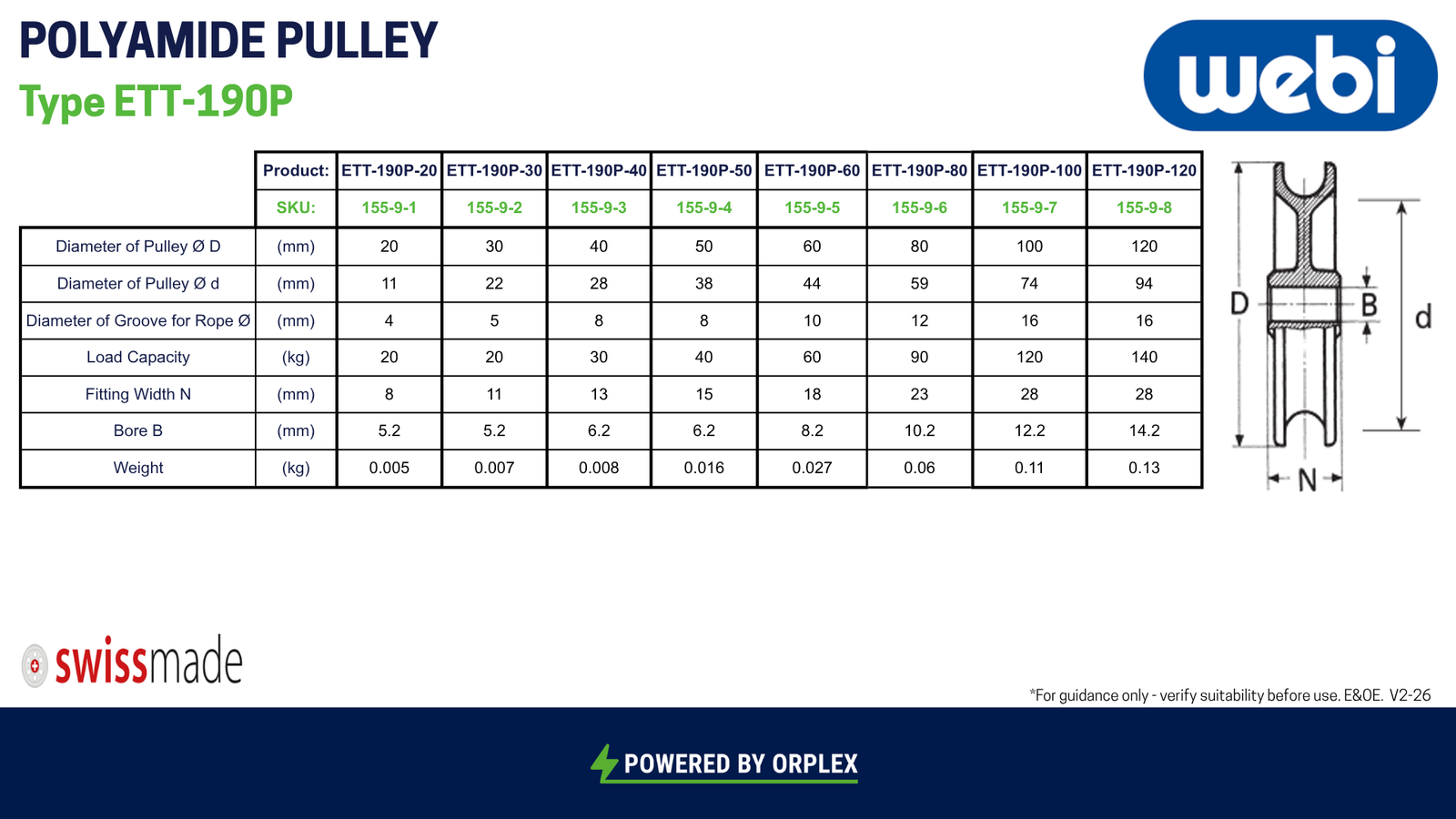

Spec

Model Capacity Pulley Diameter Rope Diameter
155-9-1 20 kg 20 mm 4 mm
155-9-2 20 kg 30 mm 5 mm
155-9-3 30 kg 40 mm 8 mm
155-9-4 40 kg 50 mm 8 mm
155-9-5 60 kg 60 mm 10 mm
155-9-6 90 kg 80 mm 12 mm
155-9-7 120 kg 100 mm 16 mm
155-9-8 140 kg  120 mm 16 mm

    Technical Info

    PulleyPulley Cat 2018

    PulleyEtter 190P Pulley Data Sheet

    Questions & Answers

    Have a Question?

    Ask a Question
    • Hi. I'm trying to replace two old horticultural greenhouse door top runner wheels (the door hangs on them bolted through metal tags). The current ones are 48mm dia, 12 mm wide single groove, 10mm bore no bearings. The track is around 1-2mm piece of angle iron. The key measurement is from the bottom of the V to the centre of bore which is 20mm give or take a mm. Could you send me the measurements of your 155.9.4 when please? (Or anything else that would do the job that is suitable for outside use.)

      Hi

      Thanks for the enquiry, please see link below to dat sheet.

      https://cdn.shopify.com/s/files/1/1563/3349/files/Etter_190P_Pulley_-_ORP_Data_Sheet.pdf?17904939877147274542

      Regards

      Web Team
