Trailer Winch 2T Horizontal Mount with Hook & 8m Webbing
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

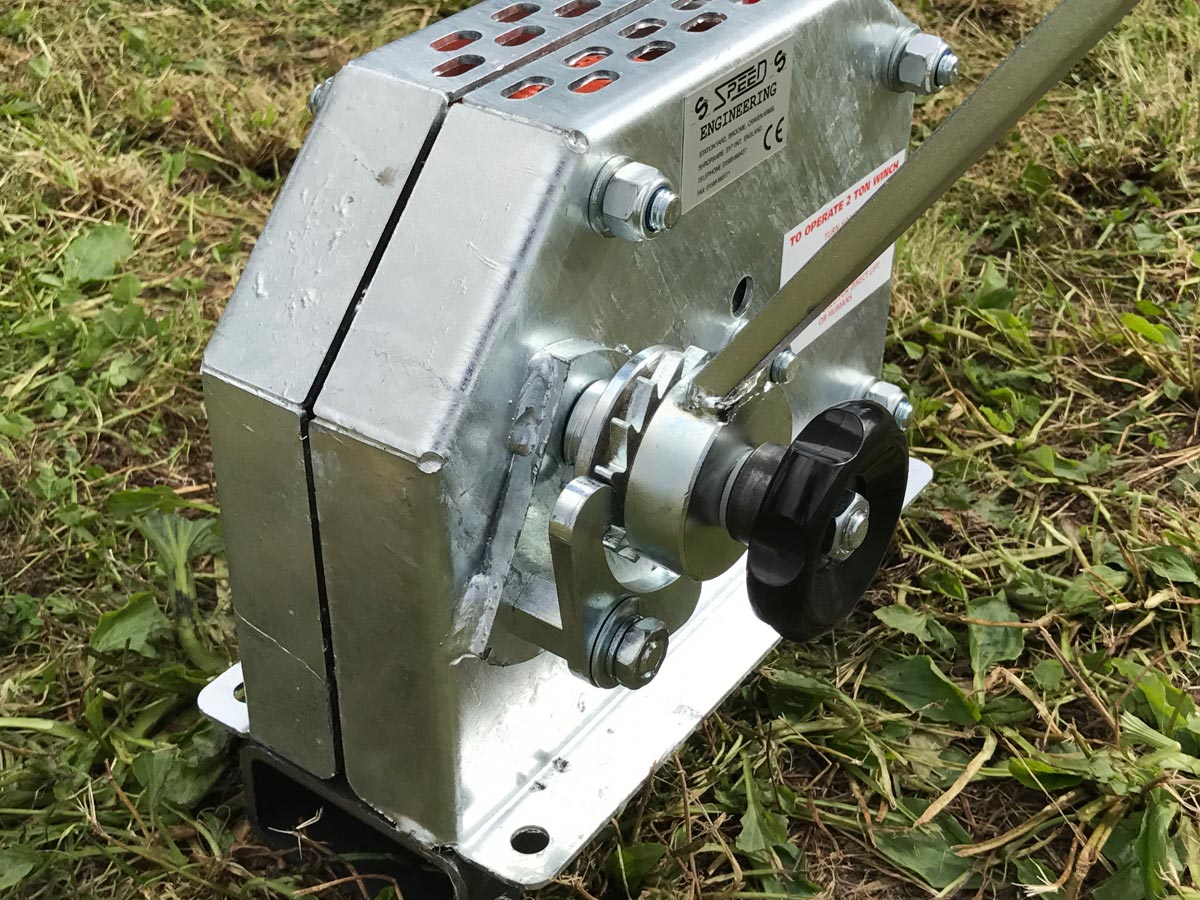

Trailer Winch 2T Horizontal Mount fitted with Hook & 8m Webbing
These UK Built Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.
✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.

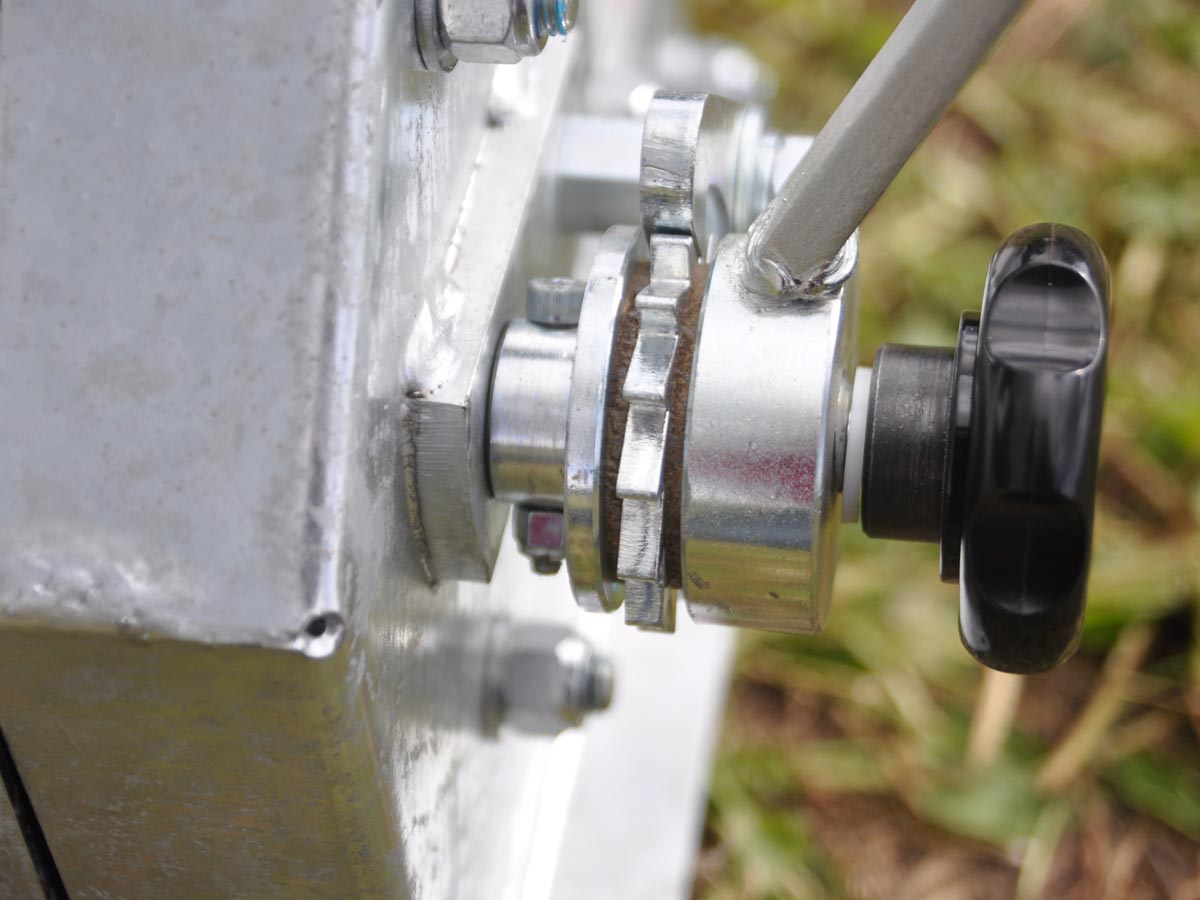

✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.
The SP2TS10 can be fitted to various trailers, eg Ifor Williams ranges CT/TB/GH/TT, Bateson’s Transport, PRG, Brian James.
Manufactured in the UK
Spec

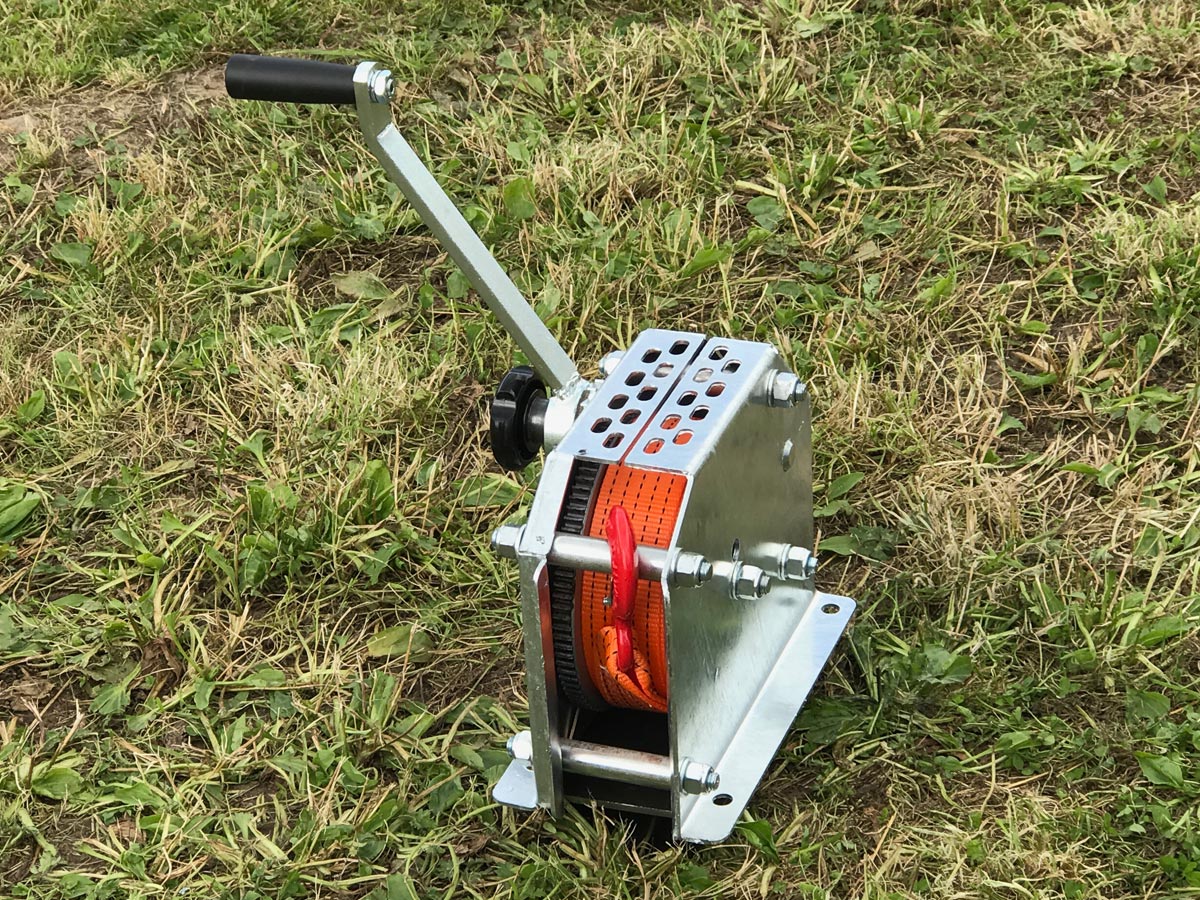

Fitted with a 50 mm wide x 8 metre polyester strap complete with eye hook on the end. Polyester strapping is kinder to the hands of the operator and is positively anchored to the drum for safety.
Mount: Horizontal mounted
Rating: 2000 kg rolling weight up a 30 degree slope
Shipping Weight: 12kg
Technical Area
Datasheet.pdfQuestions & Answers
Have a Question?
-
The rope on my trailer winch is pulling too much on one side of the drum and climbing up, making the handle jerk - how can I fix this?
Thanks for your enquiry.
Possible Solutions 1/ is to reposition the winch so it's pulling in line where it's attached to the vehicle being pulled. 2/ Use a pulley to align the rope before the winch. 3/ Use a sling to centralize the rope on the vehicle so it pulls in line with the winch. The further you pull the vehicle up the trailer the steeper the angle to the winch and this makes it jump worse.
-
Can this winch be used to let something of a trailer in a controlled way?
Yes the winch is braked under load.
