Galvanised Cast Iron Single Pulley Type ETT-74 : 100 to 1000kg
Bespoke Pulleys
If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form
Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk
Galvanised Cast Iron Single Pulley Type ETT-74 : 100-1000kg

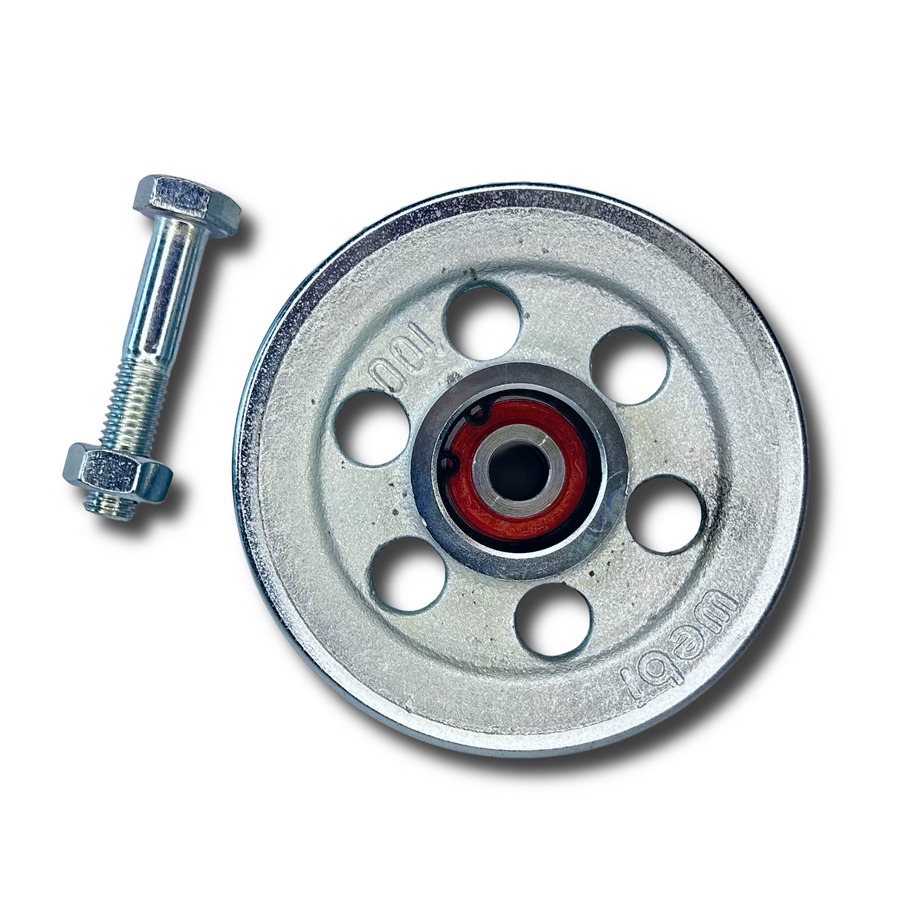

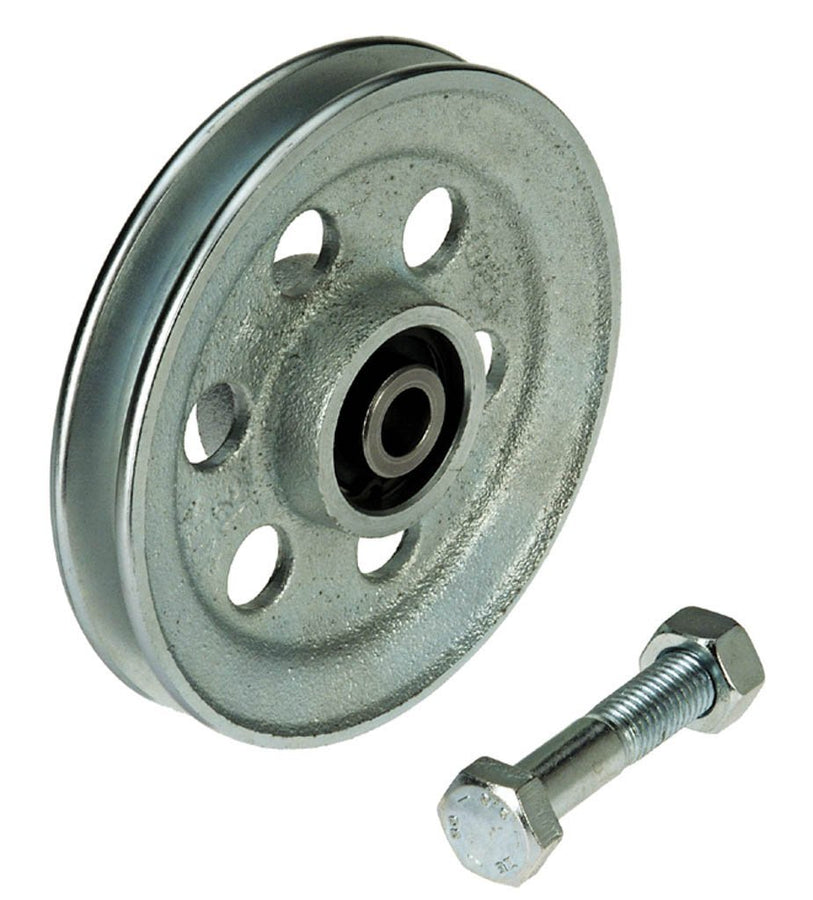

- A range of galvanised cast iron single pulleys / sheaves ETT-74
- Complete with bearing and fixing bolt
- Material finish - galvanised cast iron
- Capacities available range from 100 kg to 1,000 kg
- Pulley diameter ranges from 50mm up to 300mm
- To suit from 3mm up to 12mm wire rope (see specification PDF for full details)
- For use with manual and powered winches
- SWISS MANUFACTURED
Spec
| Model | Capacity | Pulley Diameter | Rope Diameter |
| 155-2-1 | 100kg | 50mm | 2.5mm |
| 155-2-2 | 100kg | 60mm | 3.0mm |
| 155-2-3 | 200 kg | 70 mm | 3.0 mm |
| 155-2-4 | 200 kg | 80 mm | 4.0 mm |
| 155-2-5 | 300 kg | 100 mm | 4.0 mm |
| 155-2-6 | 400 kg | 120 mm | 5.0 mm |
| 155-2-7 | 500 kg | 150 mm | 6.5 mm |
| 155-2-8 | 500 kg | 180 mm | 8.0 mm |
| 155-2-9 | 800 kg | 210 mm | 9.0 mm |
| 155-2-10 | 800 kg | 240 mm | 10.0 mm |
| 155-2-11 | 1000 kg | 300 mm | 12.0 mm |
Technical Info
Pulley Cat 2018Questions & Answers
Have a Question?
-
Hi, Could you be kind enough to send me the specifications of the bearings? Thanks! Sincerely, Per
Hi,
The pulleys of type 0740 are equipped with ball bearings of type 6002-2RS in all diameters.
If you email sales@winchshop.co.uk I can send you over a speciification sheet.
Thanks
