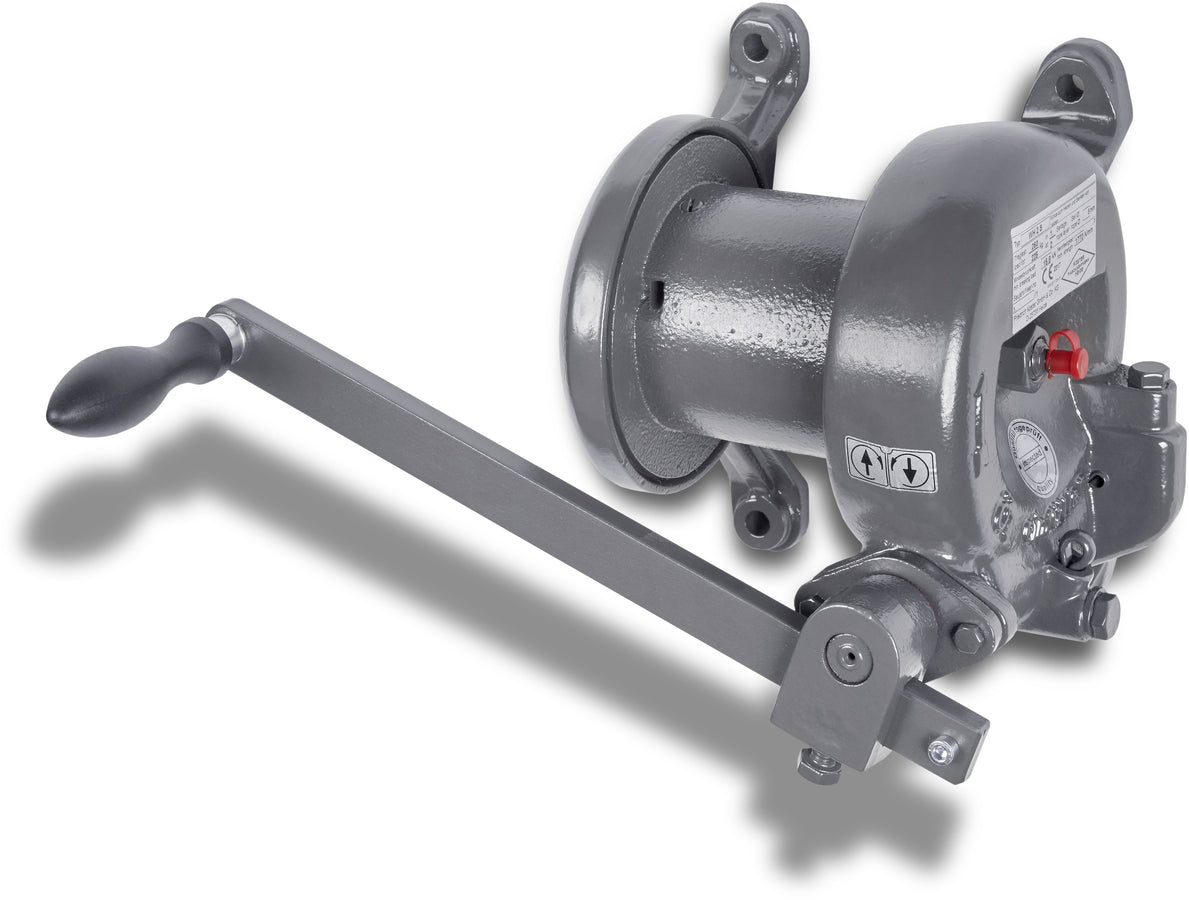

WB Manual Winch (Single Drum, 250kg, 500kg, or 750kg)

by Koster
SKU 284-1-1
In stock
In stock
Out of stock
Original price £575.64 - Original price £1,268.29
Original price
£575.64 - £1,268.29
Current price £575.64

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at

Lifting Capacity 250 kg to 750 kg for wall mounting

  • Cast Iron enclosed construction & Hardened worm shaft provides durability
  • Gearbox enclosed in a bath of oil (this can be changed to grease if using upside down)
  • High control over raising and lowering, due to the worm gearbox
  • RAL 7022 Grey
  • Lifting capacities from 250kg to 750kg
  • Quiet running
  • Self sustaining (physically have to rotate crank handle to raise or lower the load, loads will not release unintentionally
  • Powder coated
  • Adjustable crank radius
  • Hand crank can be removed any time (also under load)
  • Automatic mechanical brake holds load securely in any position
  • Temperature range -10° C up to +50° C • Mechanism group 1Bm (M3) • Low maintenance


    • Grease lubrication offers different mounting positions
    • Grooved drums
    • Multi compartment drums

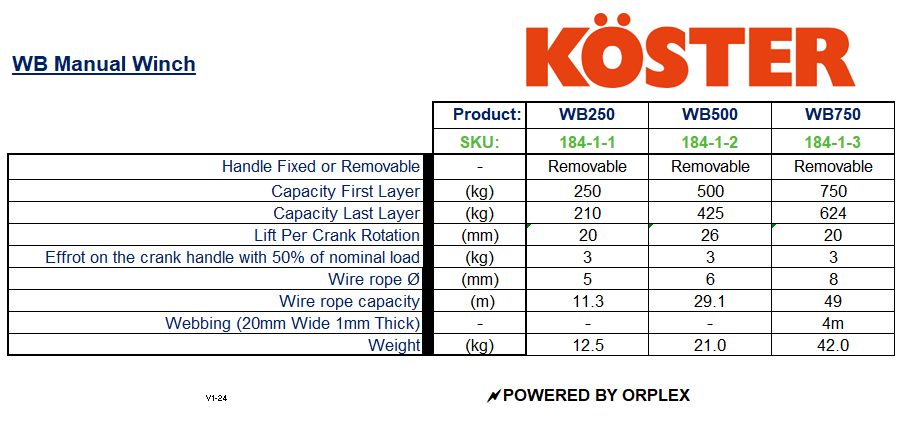

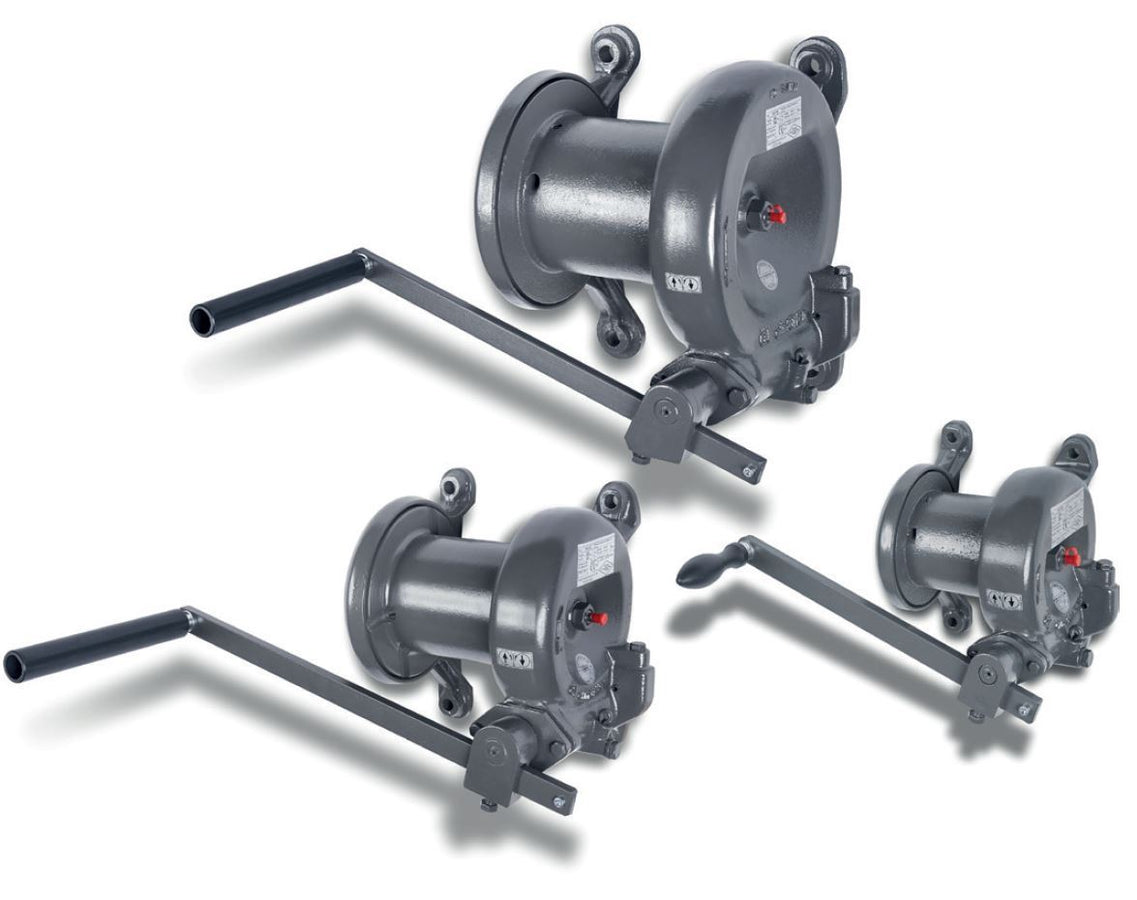

    Wall Column Mounted Manual Cable Drum Winch -Type K-WB – Cast Iron – Worm Gear Winch- 250kg to 750kg Spec table
