Trailer Winch 3T Horizontal Mount with Hook & 8mm 12m Wire Rope

SKU 160-1-4
Availability:
Out of stock
Awaiting Stock
Original price $353.00 - Original price $353.00
Original price
$353.00
$353.00 - $353.00
Current price $353.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

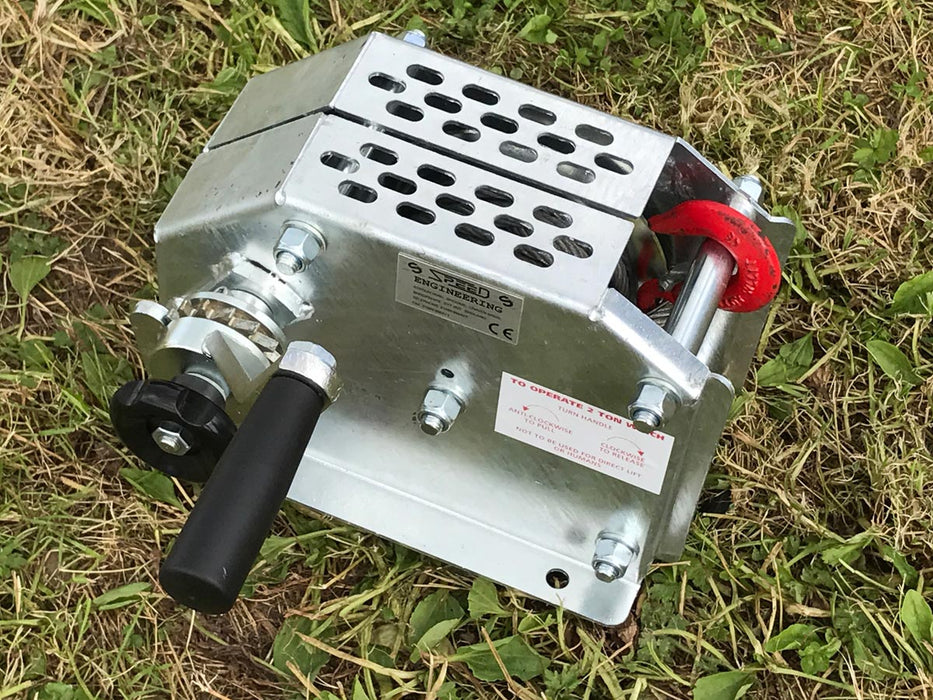

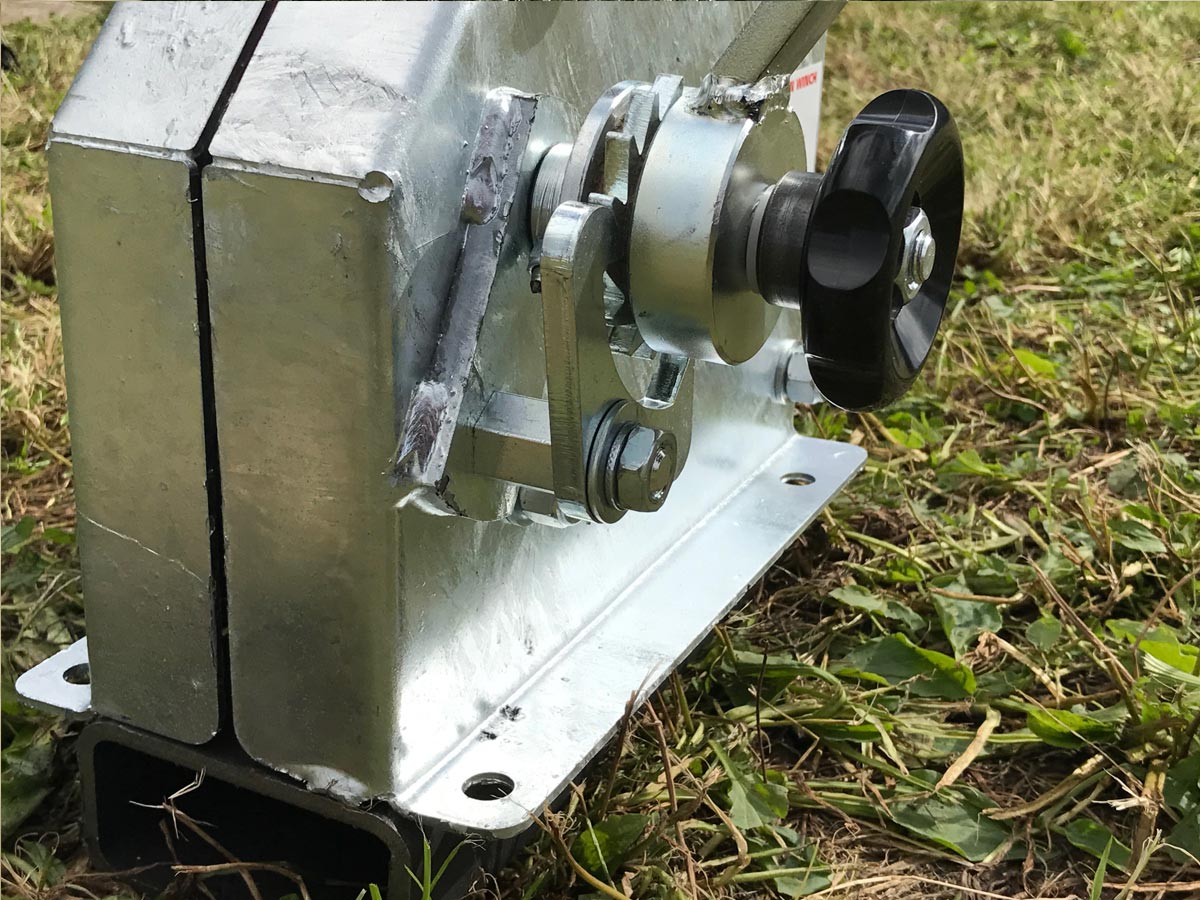

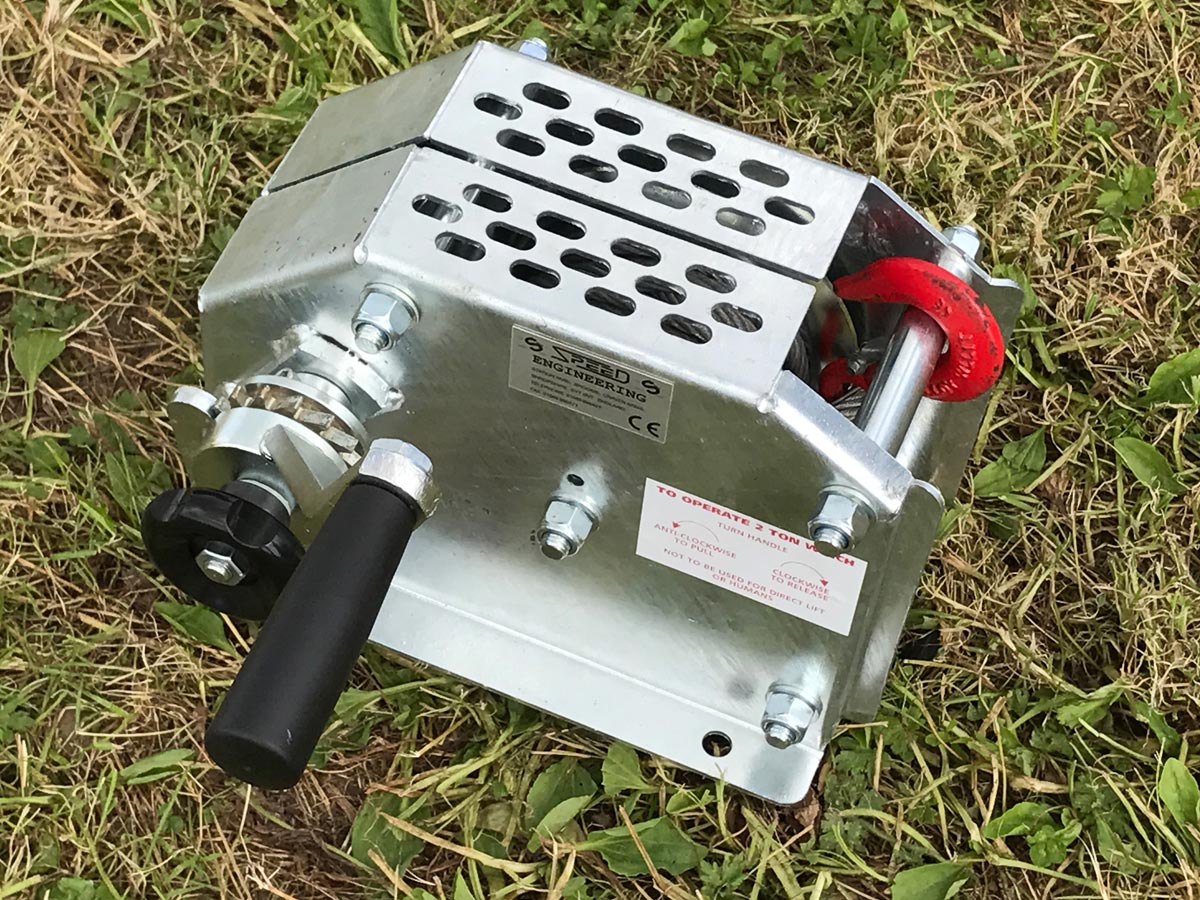

Trailer Winch 3T Horizontal Mount C/W Hook & 8mm 12m Wire Rope

All UK Built Winch Products Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.


✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.

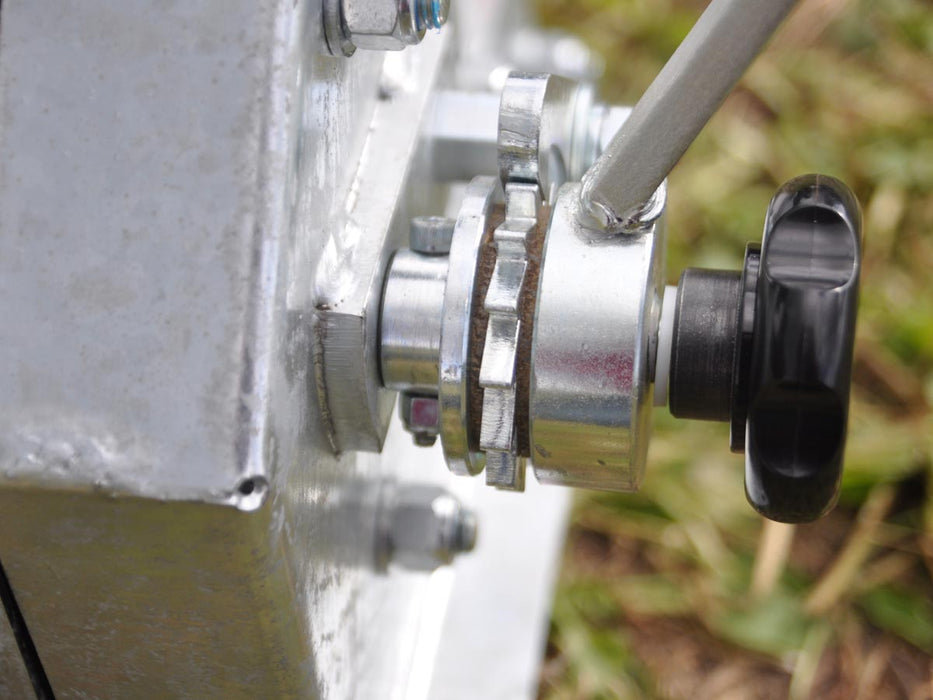

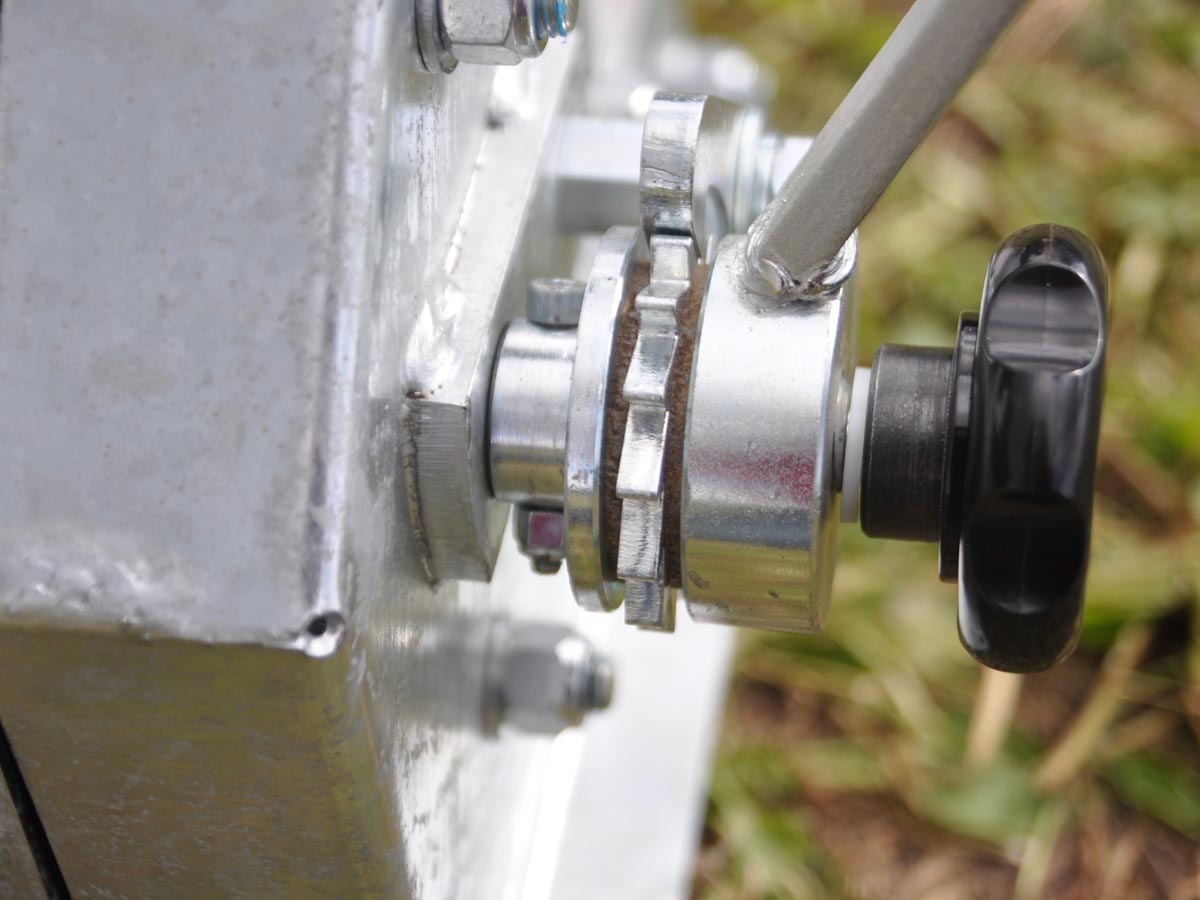

✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.

The SP3TW40 can be fitted to various trailers, eg Ifor Williams ranges CT/TB/GH/TT, Bateson’s Transport, PRG, Brian James.

Manufactured in the UK by Speed Winch

Spec

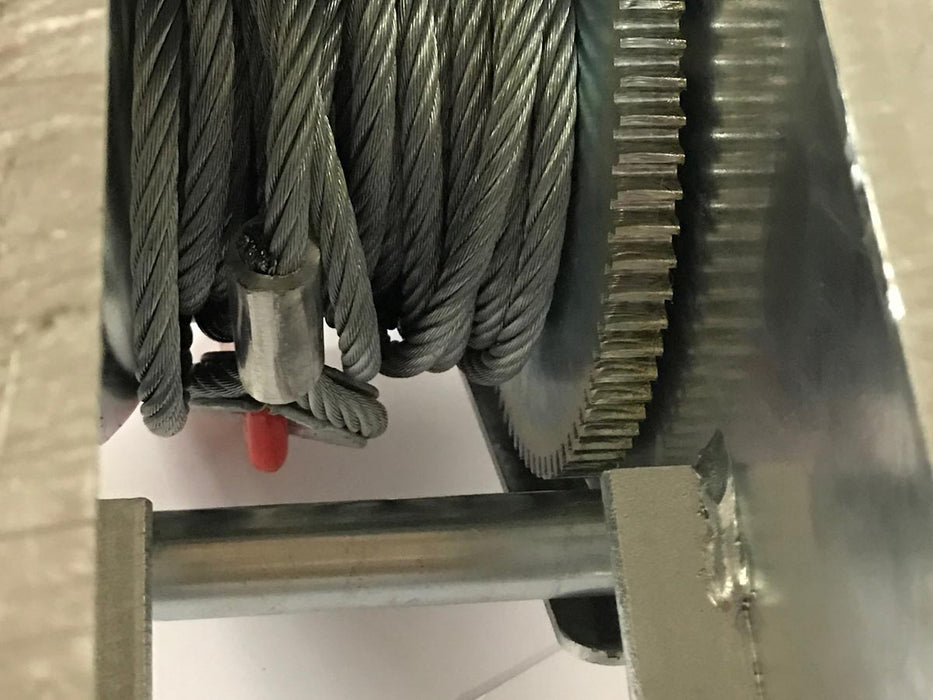

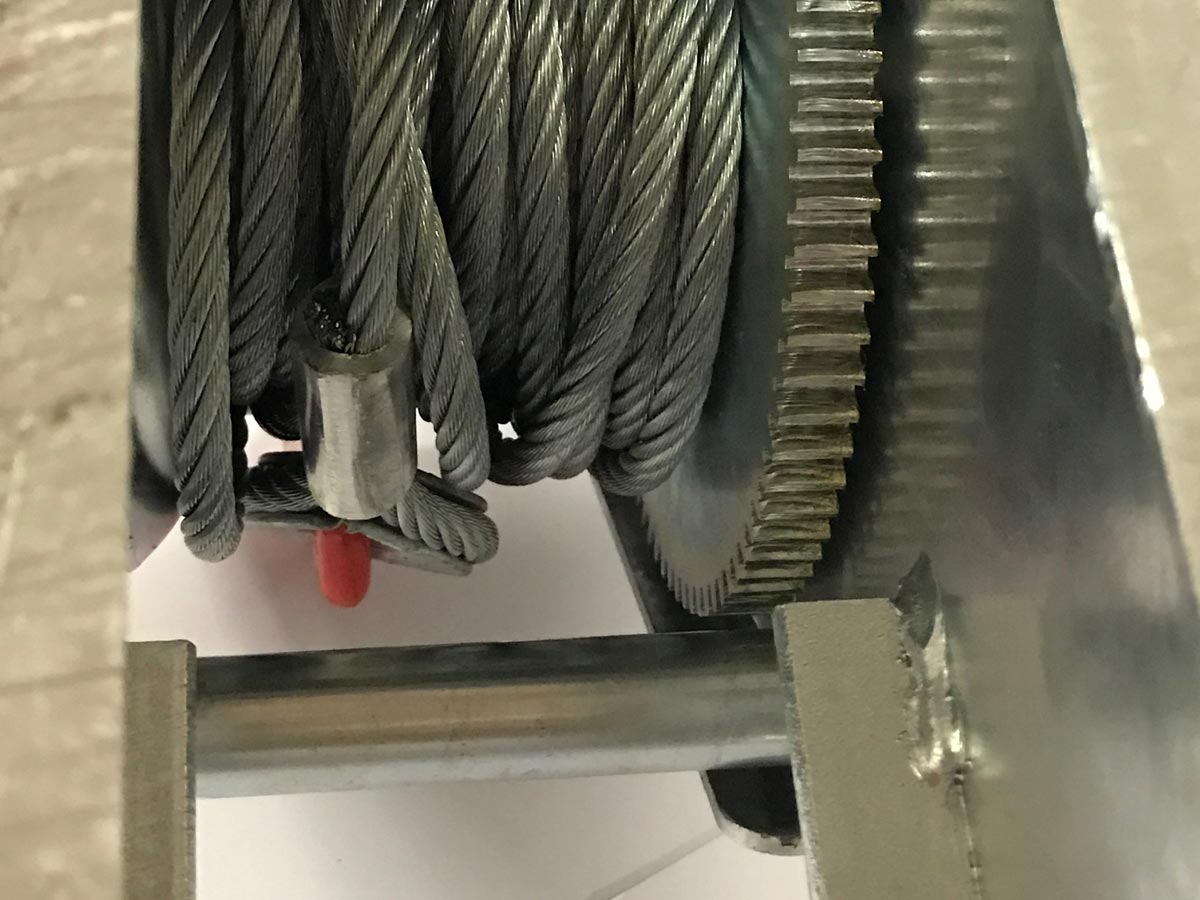

The SP3TW40 comes with an 8 mm diameter x 12 metres long galvanised steel rope with eye hook on the end fitted to the winch. The wire winch can be used to pull at up to 20 degree angle side to side, and even more if using a fair lead. The drum is of a size in diameter that reduces wear and tear on the rope and positive anchorage of the rope to the drum for safety.

SP3TW40 – 3 Ton

Mount: Horizontal mounted
Rating: 3000 kg rolling weight up a 30 degree slope
Shipping Weight: 17kg





Tech Area

Datasheet.pdf

Questions & Answers

Have a Question?

Ask a Question
  • I have an Ifor Williams CT177 car transporter, the trailer previously had a winch and I was looking to add one back on, I have seen this one and wondered if this would be easy to fit. Trailer Winch 3T Vertical Mount with Hook & 8mm 12m Wire Rope SKU :160-1-6 Is there any other parts/fittings that will be needed?

    The winch to fit on the CT177 is the SKU 160-1-4, 3 ton horizontal mounting winch with wire rope which would just bolt onto the plate where the old one had been.

    https://www.winchshop.co.uk/products/trailer-winch-3t-horizontal-mount-with-hook-8mm-12m-wire-rope?_pos=4&_sid=acb22dd17&_ss=r

    If you wanted the 3 ton vertical (SKU 160-1-6) you would need to cut off the beam across the front of the trailer and drill holes in the front of the trailer to mount the winch.
