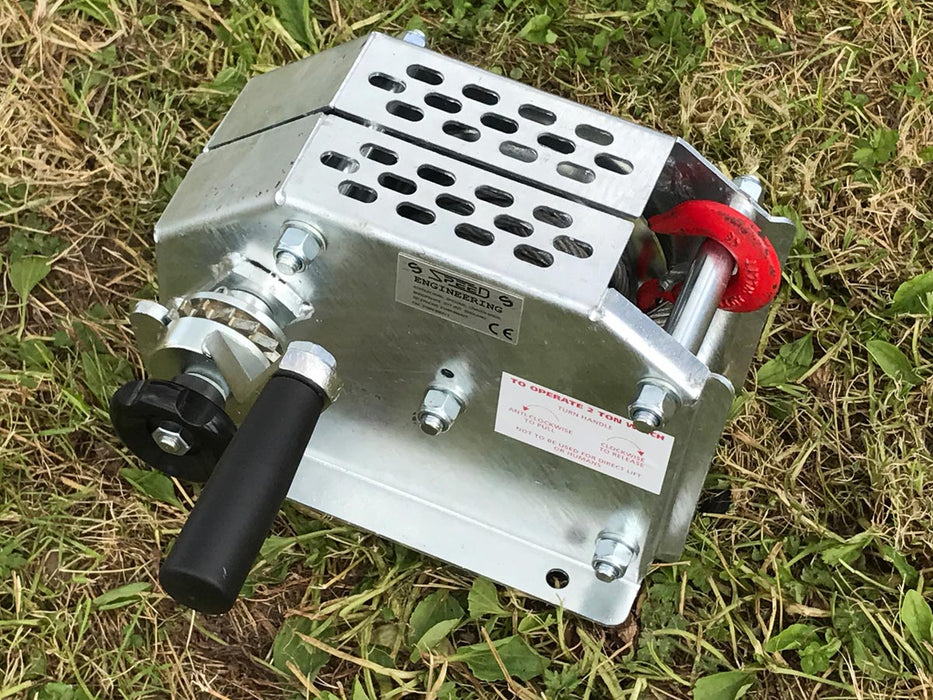

Trailer Winch 2T Horizontal Mount C/W Hook & 8mm 12m Wire Rope Ref: 160-1-2
SKU :160-1-2
Trailer Winch 2T Horizontal Mount C/W Hook & 8mm 12m Wire Rope Ref: 160-1-2
All UK Built Speed Winch trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.
✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.

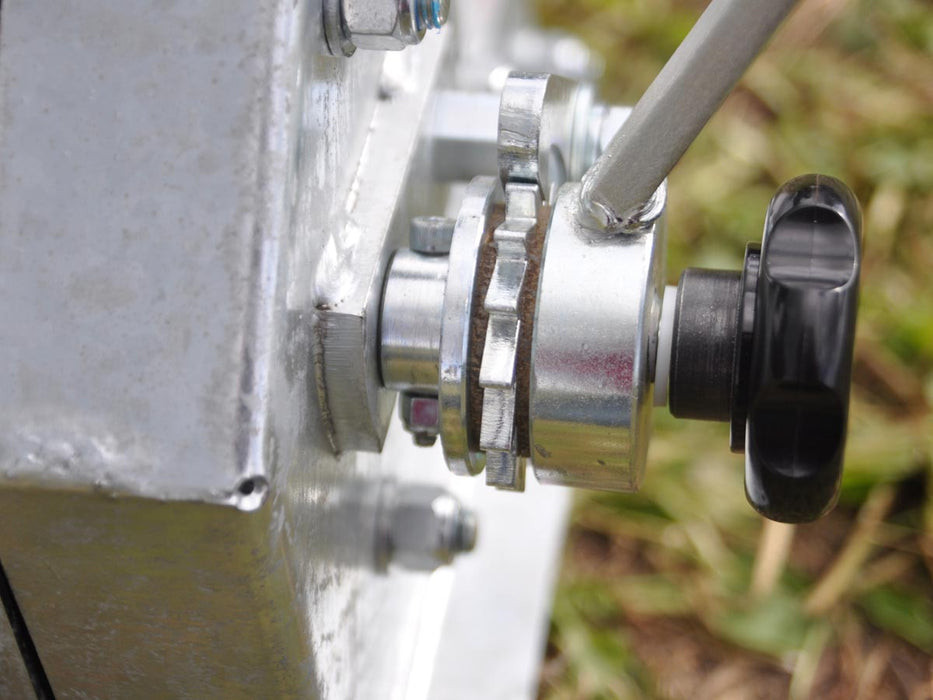

✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.
The SP2TW20 can be fitted to various trailers, eg Ifor Williams ranges CT/TB/GH/TT, Bateson’s Transport, PRG, Brian James.
Manufactured in the UK by Speed Winch
Spec

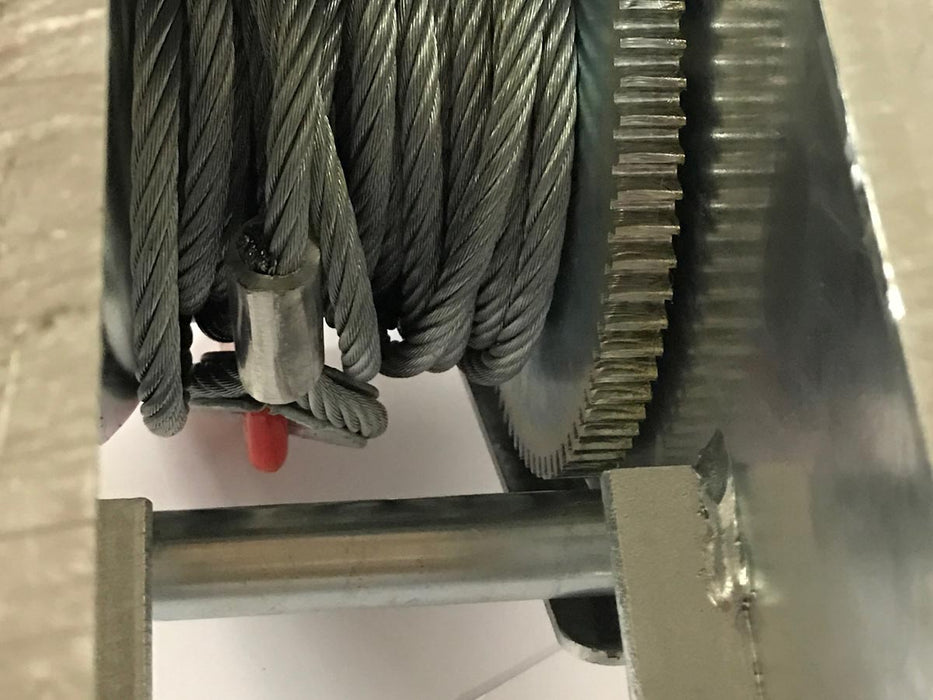

SP2TW20 comes with an 8 mm diameter x 12 metres long galvanised steel rope with eye hook on the end fitted to the winch. The wire winch can be used to pull at up to 20 degree angle side to side, and even more if using a fair lead. The drum is of a size in diameter that reduces wear and tear on the rope and positive anchorage of the rope to the drum for safety.
Mount: Horizontal mounted
Rating: 2000 kg rolling weight up a 30 degree slope
Shipping Weight: 15kg
SP2TW20 – 2 Ton
Datasheet.pdf
