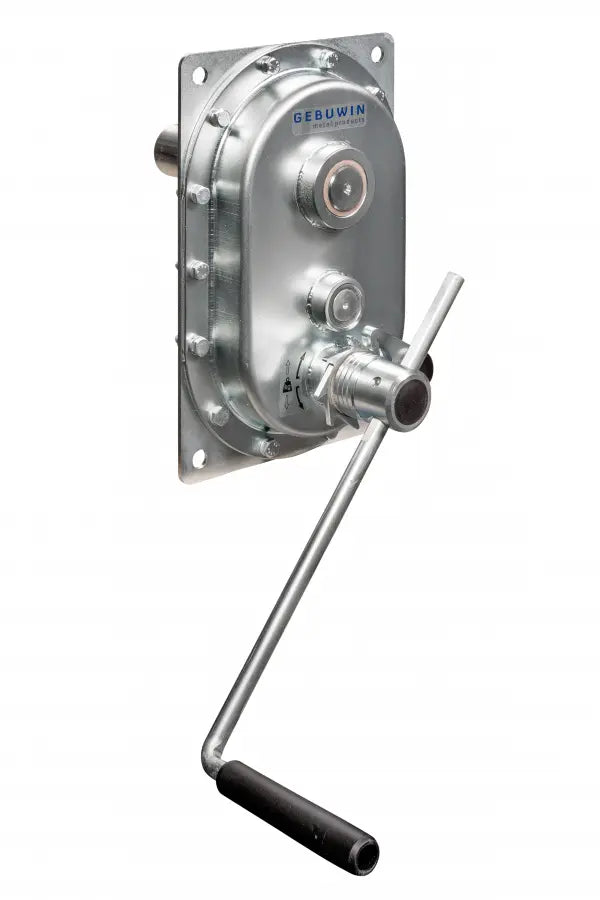

TK1000 Spur Gear Box,550 Nm with crank & load pressure brake

Spur Gear Box with a max torque of 550Nm or 840Nm

by Gebuwin
SKU 156-23-1
£743.53 - £965.80
£809.68
£743.53 - £965.80
£809.68

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

When a hoisting application is engineered with the possibility to attach an input shaft, a spur gearbox is the perfect solution. The spur gear boxes TK1000 and TK1500 have on one side an input shaft that can be fitted into the larger machine and on the other side a crank to operate the gearbox. The TK1001 and TK1501 have an input and output shaft (with no crank or brake).

Please note the lead-time is around four weeks from order for this product.



Spec

  • Robust and solid construction due to a sealed spur gear casing
  • Protection classification IP54
  • Equipped with a load pressure brake
  • All rotating parts run in maintenance free bearings
  • Static safety minimum factor 4
  • Zinc plated finish with a minimum of 6 micron
  • The outward axel is fitted with key slots
  • The inward axel has a crank with a load pressure brake

Options

  • EX = ATEX certified, for zones 2 and 22
  • SS = Stainless steel EN 1.4301

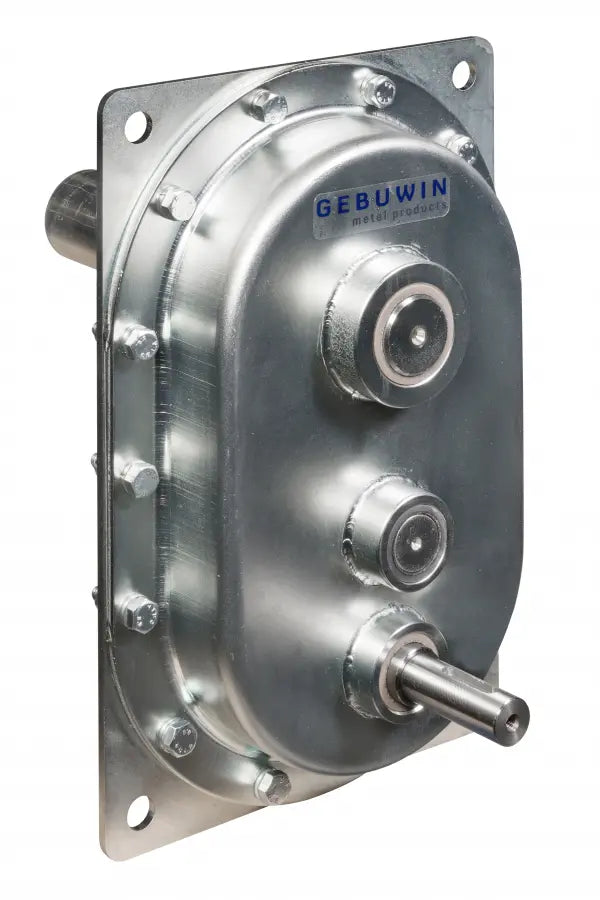

  • Box without crank and load pressure brake (TK1001 – 1501)

Tech Area

Technical specifications TK1000 TK1500 TK1001 TK1501
SKU 156-23-1 156-23-2 156-21-3 156-21-4
Max. output torque (Nm) 550 840 550   840
Crankforce (daN) 11 12 – –
Max input torque (Nm) – –  38 42
Max input speed (rpm) – – 60 60
Transmission ratio  1:17   1:25,7 1:17  1:25,7
In- / output shaft diameter (mm) – /45 – /45 20/45 20/45
Own weight (kg) 16,5  17 16 16,5



Downloads

Cable JacksData sheet
