Pfaff SW-K LAMBDA Console-mounted rope winch (BGVC1) - Dual Lines

Pfaff SW-K LAMBDA Console-mounted rope winch (BGVC1) - Dual Lines

by Pfaff-silberblau
£1,892.50 - £1,892.50
£1,892.50
£1,892.50 - £1,892.50
£1,892.50

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

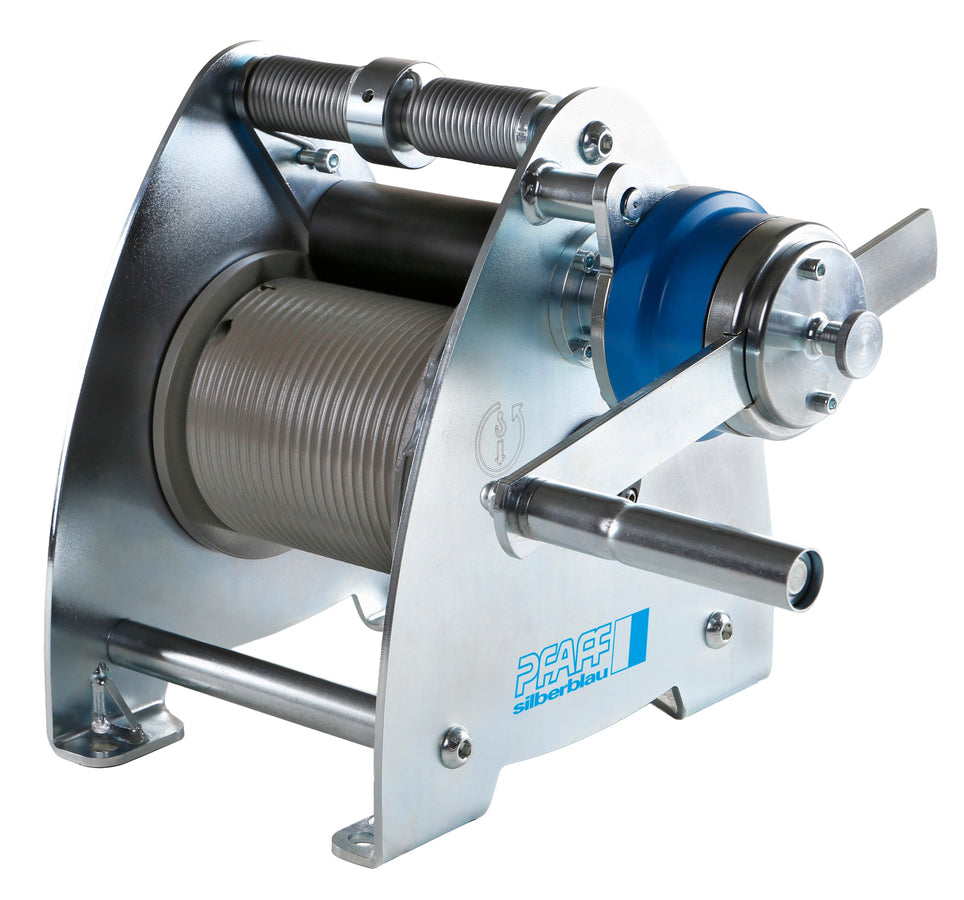

SW-K LAMBDA (300KG)

      The Pfaff SW-K Lambda BGVC1 wire rope winch is designed for precision lifting and load-holding applications. Engineered with a grooved drum for single-layer winding, it offers extended wire rope service life with an 18:1 ratio between drum and rope diameter. The safety spring double brake system ensures automatic load-holding at any position, making it ideal for demanding environments.

      Recommended Wire Rope: DIN 3060 FE-znk 1770 sZ-spa
      Note: All Pfaff winches are supplied without wire rope.

      Key Features

      • Grooved drum for single-layer winding, enhancing wire rope longevity.
      • 18:1 drum-to-rope ratio increases service life.
      • Double safety spring brake system automatically holds the load in any position.
      • Spring-loaded rope pressure drum for improved coiling.
      • Spur gear drive ensures efficient load handling
      • Gear rated to twice the nominal load for added durability.

      Optional Accessories

      • Drum extension for increased wire rope
        capacity.
      • Special grooved drum for multi-layer wire rope
        winding.
      • Wire rope (sold separately)

      Safety Guidelines:

      • Operation, installation, and maintenance must be performed by qualified personnel.

      • Regular inspections are mandatory:

      • Daily checks: Brake function, rope condition, load attachment, and support structure.

      • Annual UVV inspection by a certified expert.

      • Comprehensive inspection at least every 4 years or after modifications.

      Prohibited Actions:

      • Never leave a load hanging unsecured.

      • Do not allow the rope to swing or drop freely.

      • Avoid touching moving parts

      Rope Guidelines:

      • Must be wound in a single layer on the grooved drum.

      • Minimum 3 full windings must remain on the drum when fully extended.

      • Regularly inspect according to DIN 15020 standards.

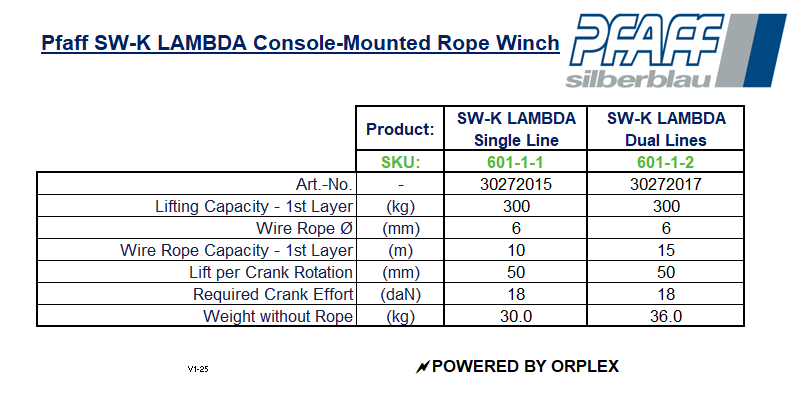

          Specification

          Specification

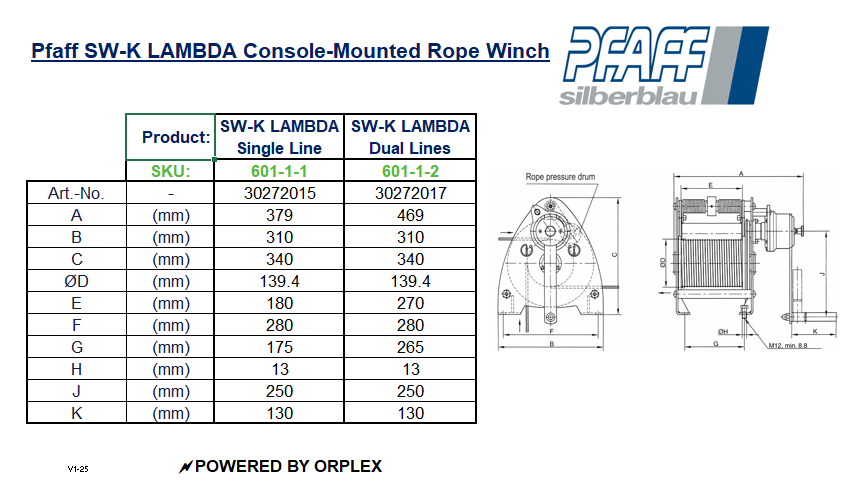

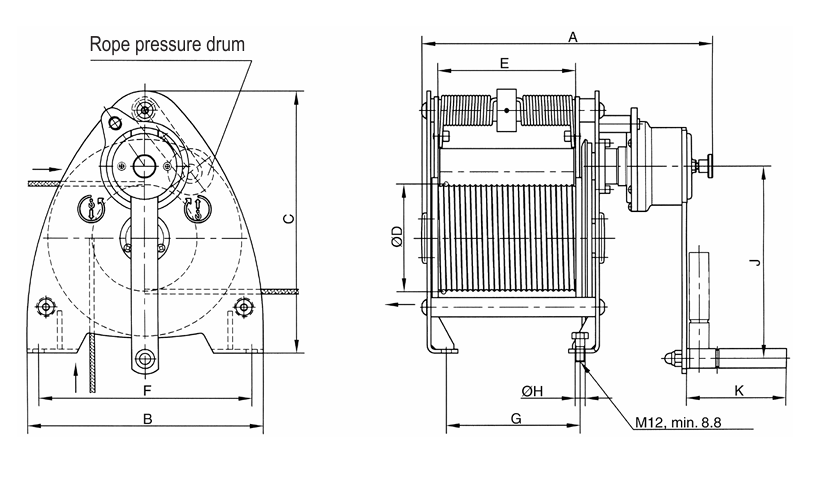

          Dimensions
