Steel Wire Rope Pulley with Cast Iron Fixed Roller (Model No. 164)

by ORPTECH
SKU 185-164-50
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Sold out
Original price £278.40 - Original price £400.80
Original price
£278.40
£278.40 - £400.80
Current price £278.40

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 09 May, 2026.

Description

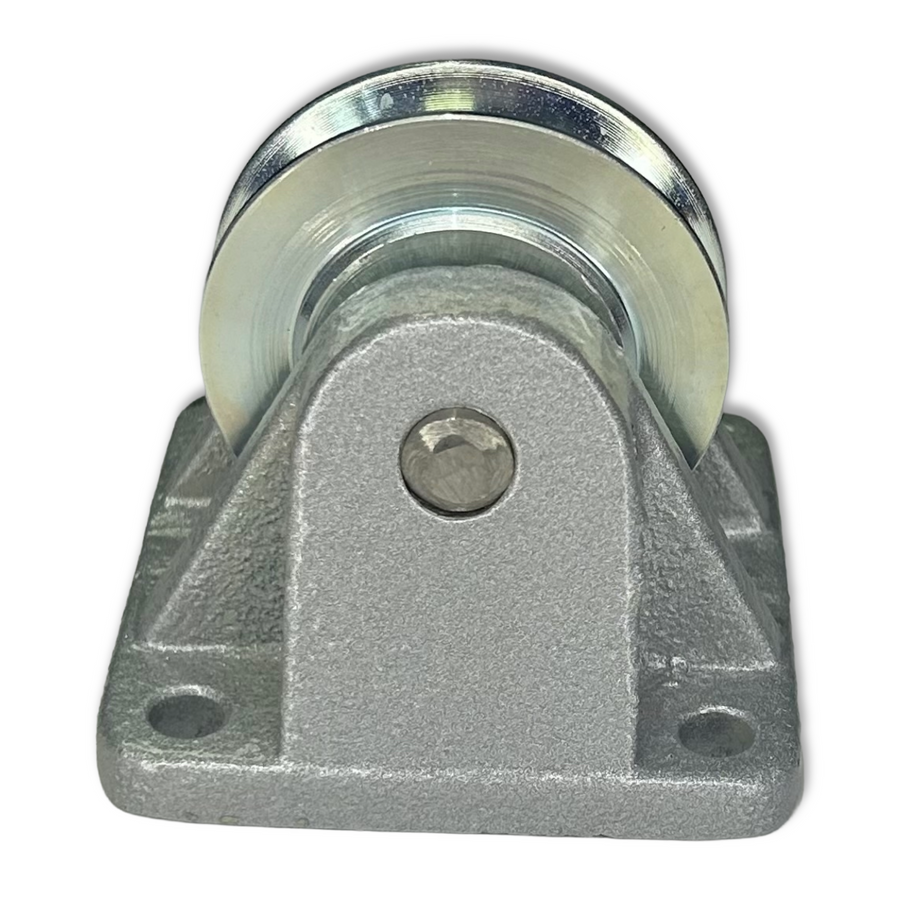

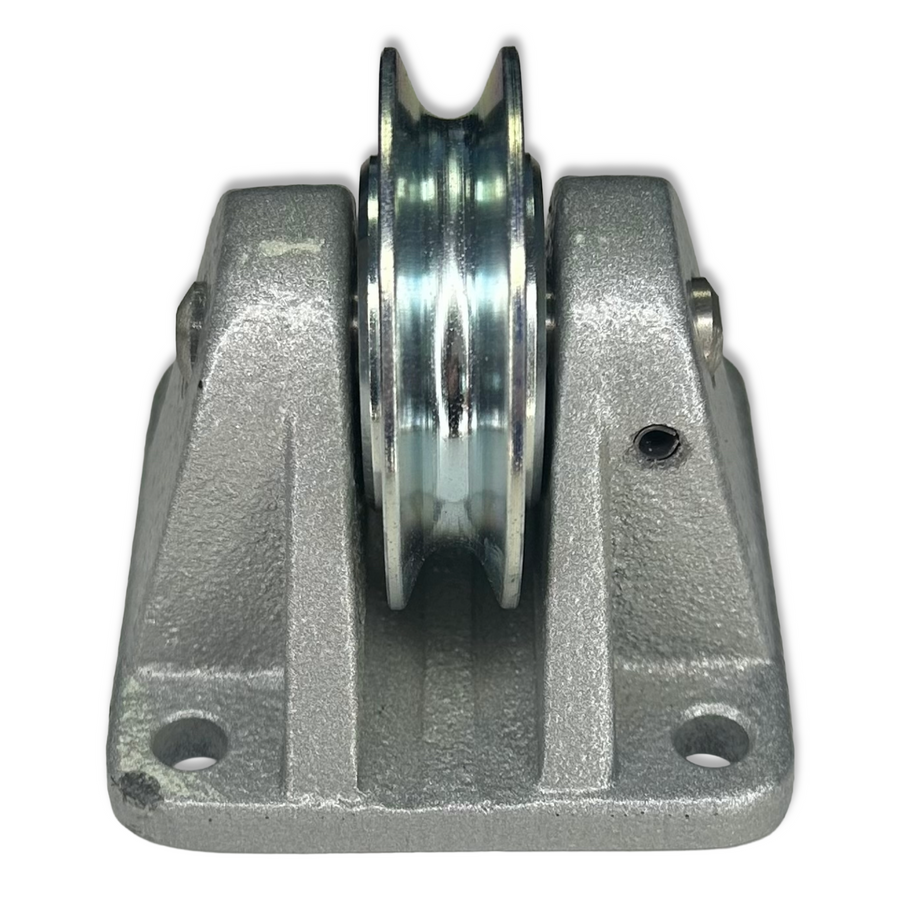

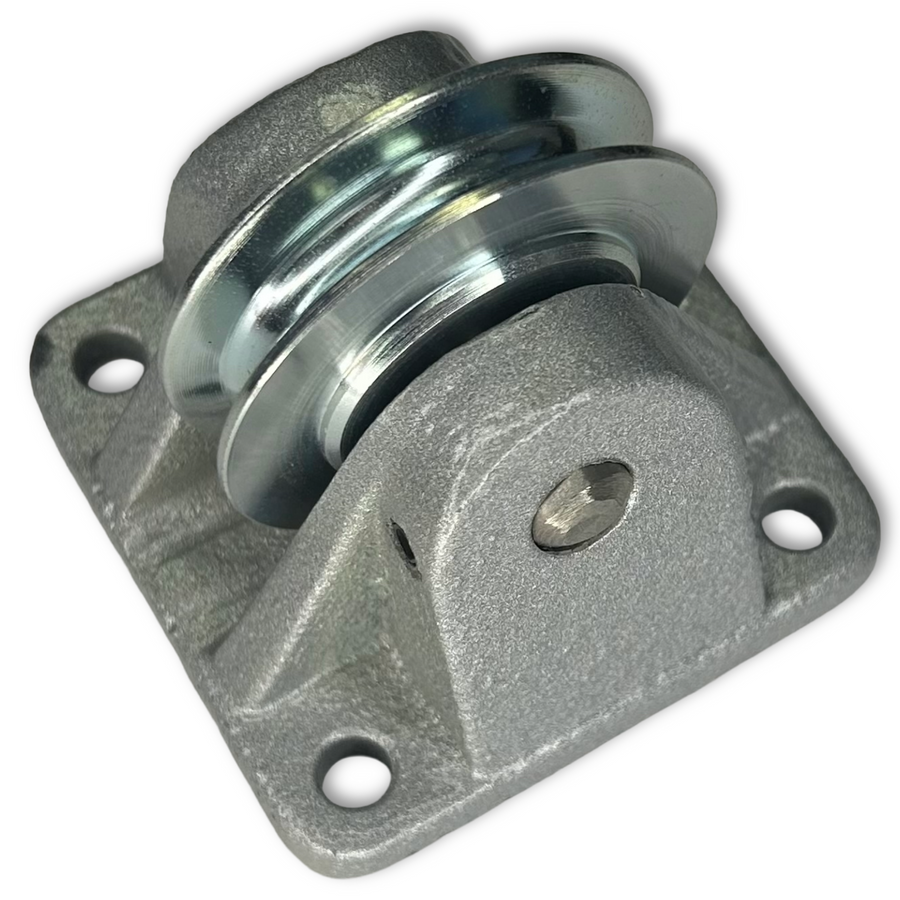

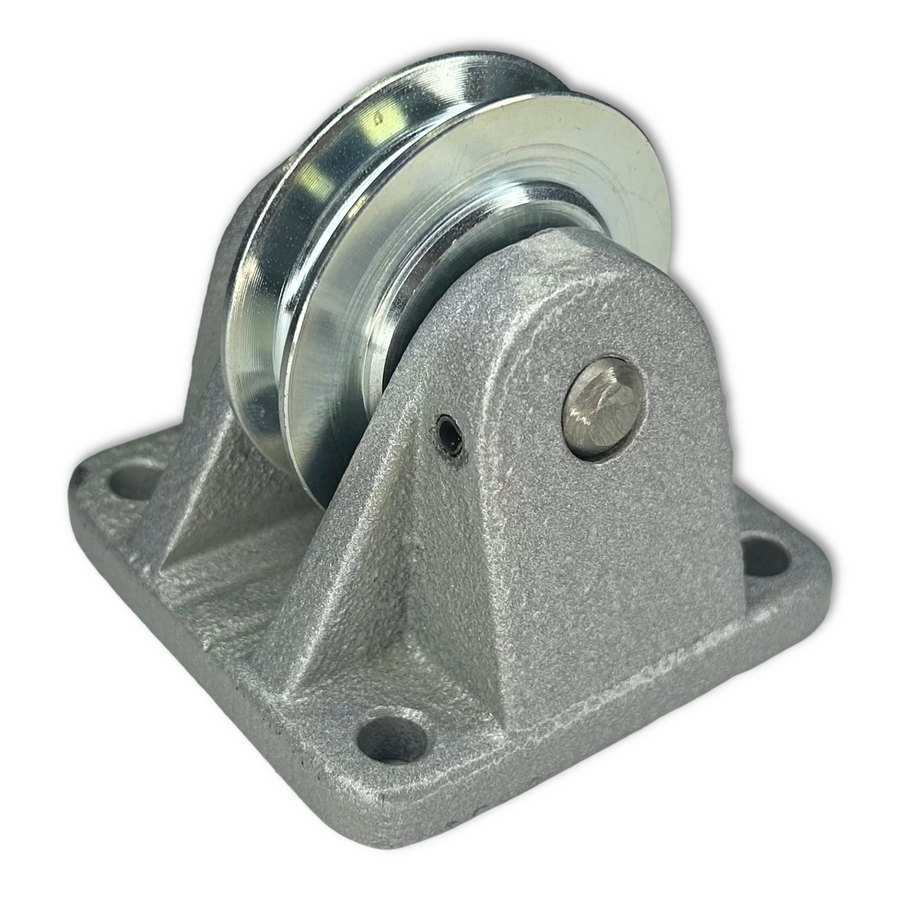

The ORPTECH Steel Wire Rope Pulley with Bracket (Model No. 164) is a robust and dependable fixed roller designed for wire rope guidance in lifting, hoisting, and industrial applications.

Built for durability, this unit features a steel sheave combined with a cast iron roller block bracket, providing excellent strength and stability in demanding environments. It is fitted with steel sheaves (Model No. 163), designed for consistent performance and long service life.

The sheaves are equipped with maintenance-free plain bearings, ensuring smooth operation with minimal servicing requirements. For applications requiring enhanced efficiency and reduced friction, sealed groove ball bearing versions are available on request, please contact our sales team for a bespoke quotation.

Engineered for reliability, the Model No. 164 pulley is ideal for use in a wide range of mechanical handling and wire rope systems, where consistent performance and durability are essential.

Key Features

  • Fixed roller pulley with heavy-duty bracket
  • Cast iron roller block for added strength and durability
  • Fitted with steel sheaves (Model No. 163)
  • Maintenance-free plain bearing for low maintenance operation
  • Optional sealed groove ball bearing upgrade available
  • Suitable for wire rope guidance, lifting, and hoisting systems
  • Designed for industrial and mechanical applications

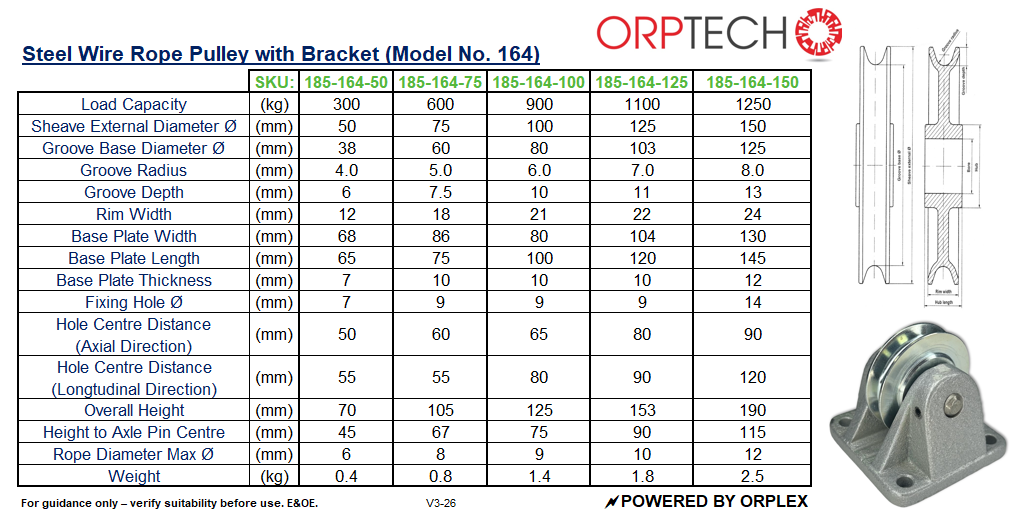

Specification

Specification
