Steel Wire Rope Pulley with Fixed Bracket Rollers (Model No. 174)

by ORPTECH
SKU 185-174-50
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Sold out
Original price £136.80 - Original price £220.80
Original price
£136.80
£136.80 - £220.80
Current price £136.80

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 09 May, 2026.

Description

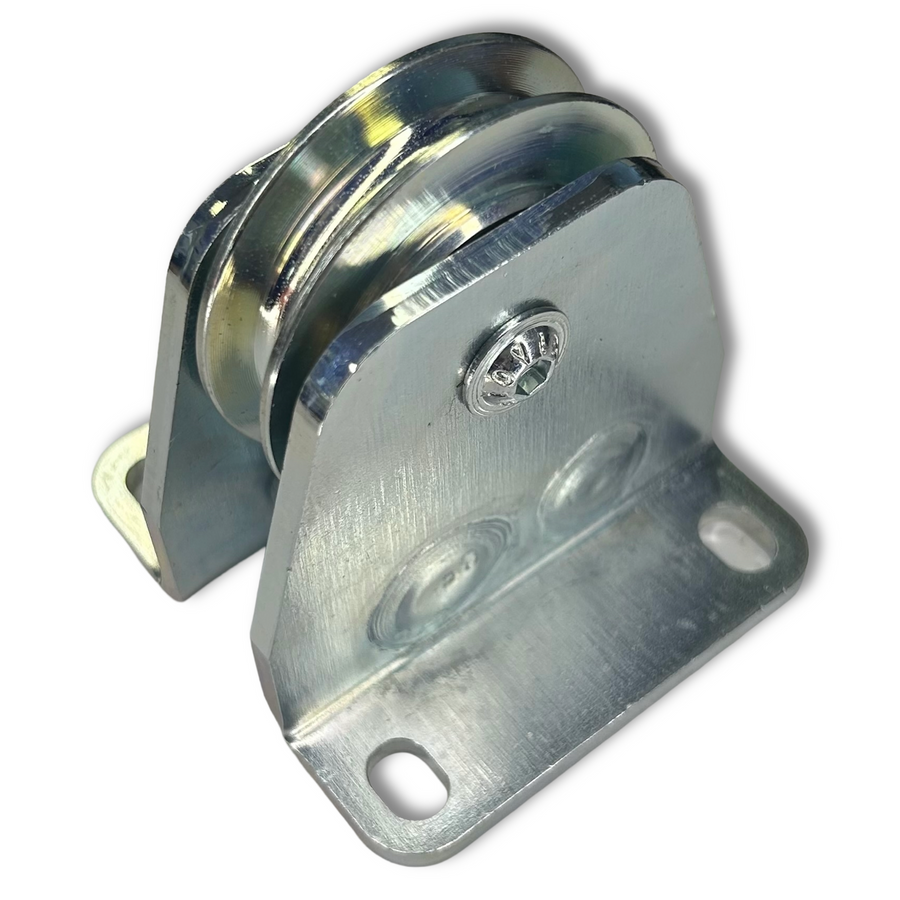

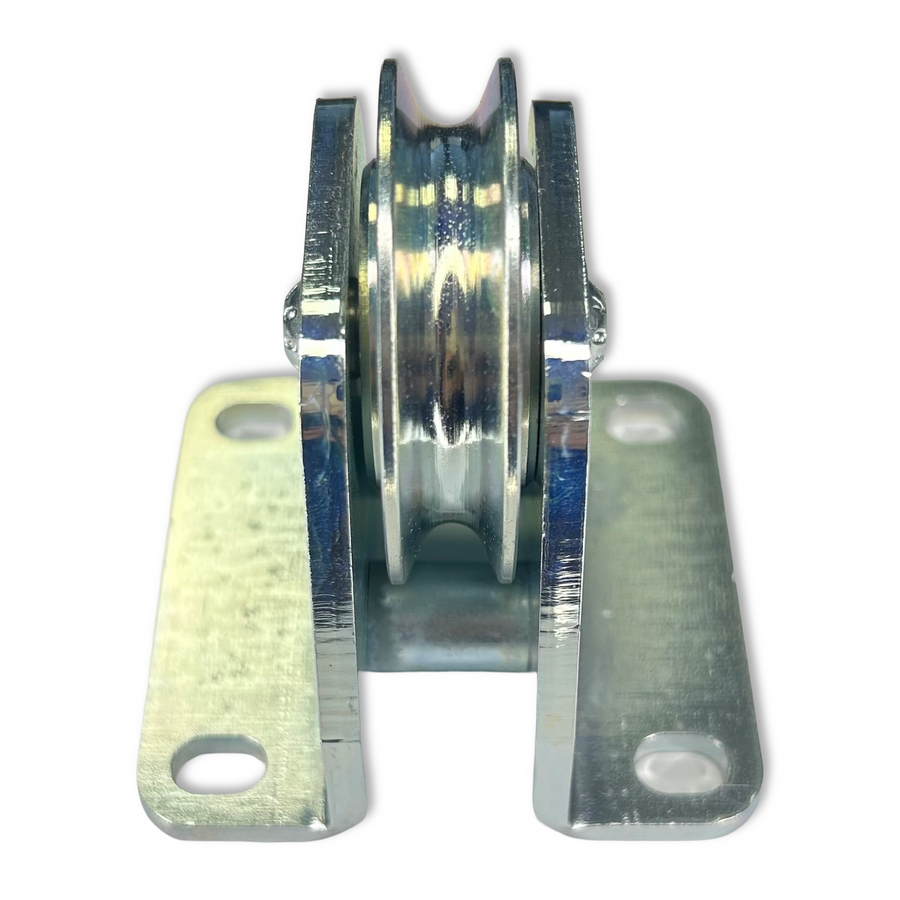

The ORPTECH Steel Wire Rope Pulley with Bracket (Model No. 174) is a durable fixed roller solution designed for reliable rope guidance.

Manufactured with a robust steel bracket and roller block construction, this pulley is built to withstand demanding environments. It is fitted with galvanised steel sheaves (Model No. 163), offering excellent corrosion resistance and long service life in both indoor and outdoor conditions.

The sheaves are equipped with maintenance-free plain bearings (DU bush), ensuring smooth operation with minimal upkeep.

Designed for precision and versatility, the Model 174 pulley is suitable for a wide range of lifting, guiding, and mechanical handling systems.

For models with a diameter of 200mm and above, please contact our sales team directly for a personalised quote.

Key Features

  • Fixed roller pulley with steel bracket
  • Fitted with galvanised steel sheaves (Model No. 163)
  • Maintenance-free plain bearing (DU bush) for low maintenance
  • Optional sealed groove ball bearing version available - contact our sales team for more info
  • Heavy-duty steel construction for durability
  • Suitable for industrial and mechanical systems

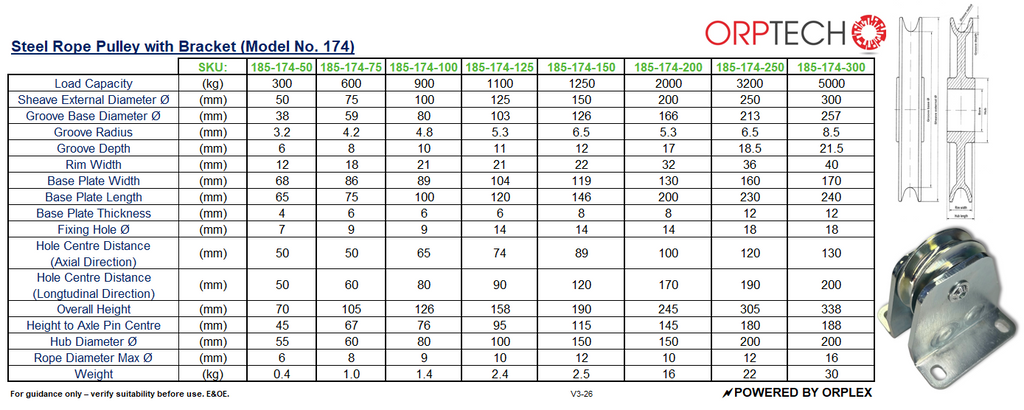

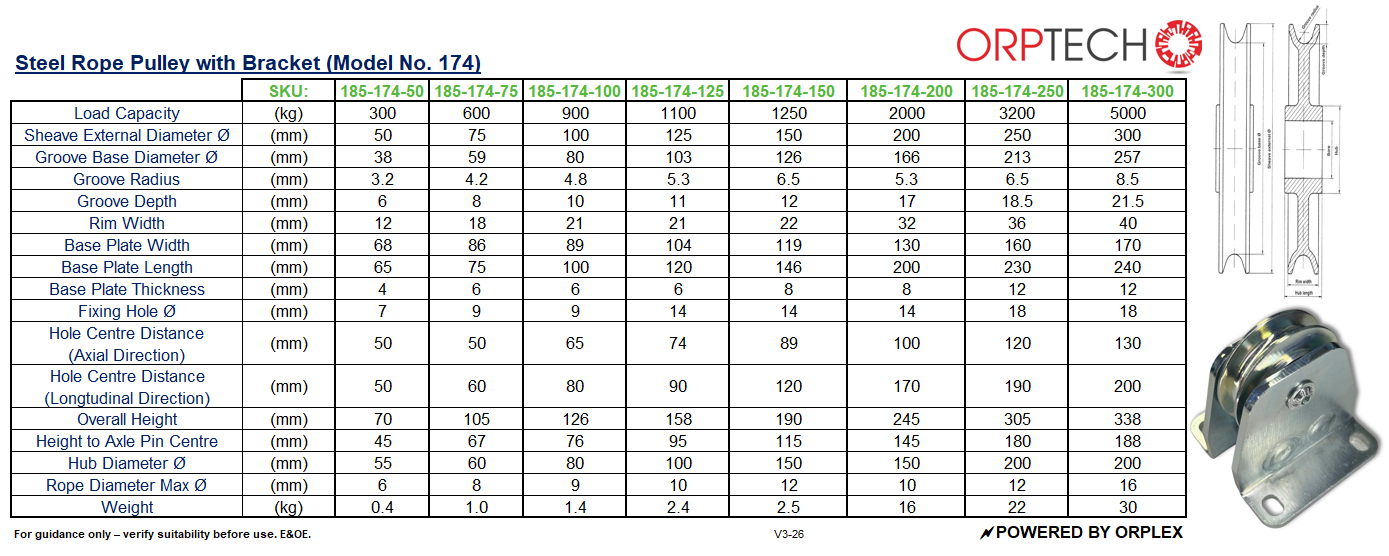

Specification

Specification
