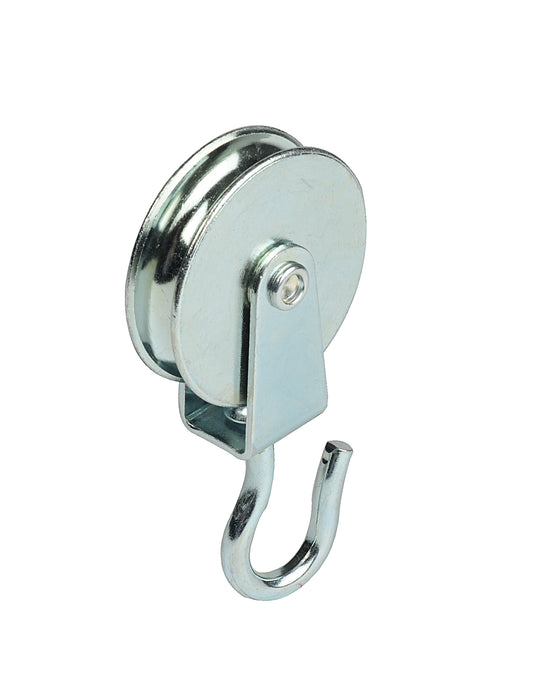

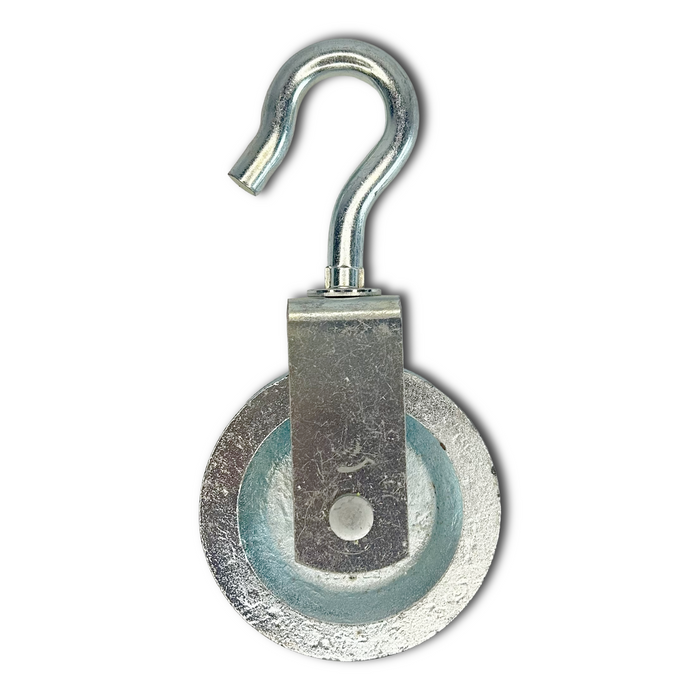

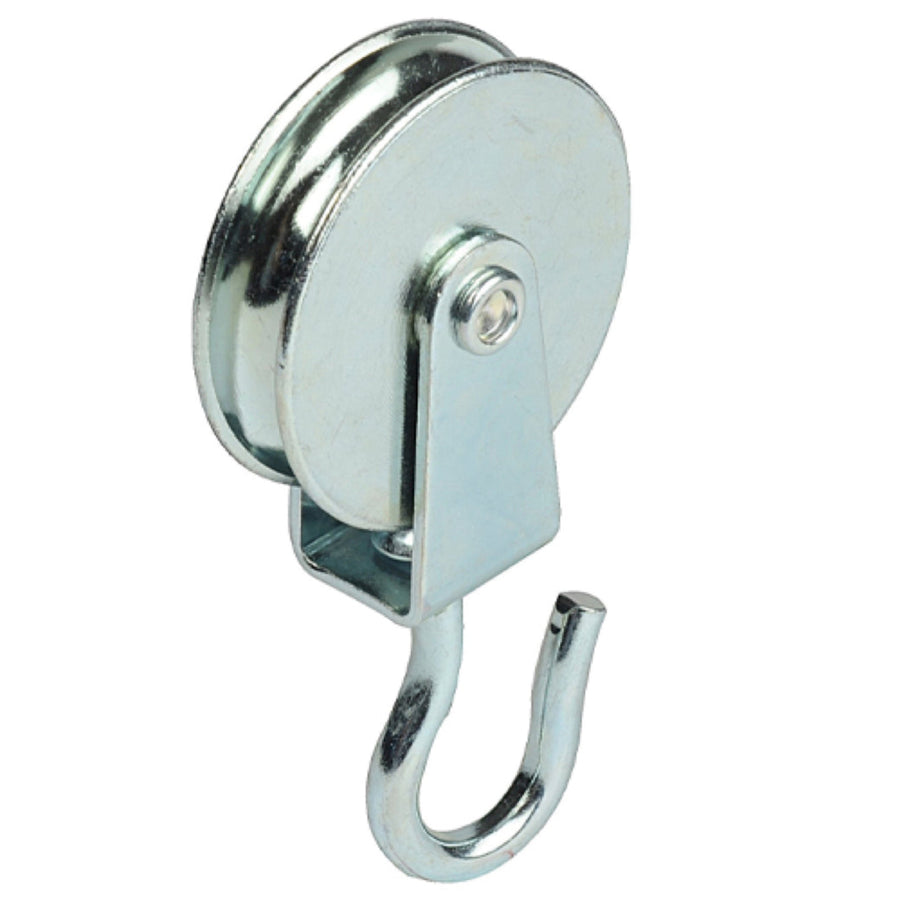

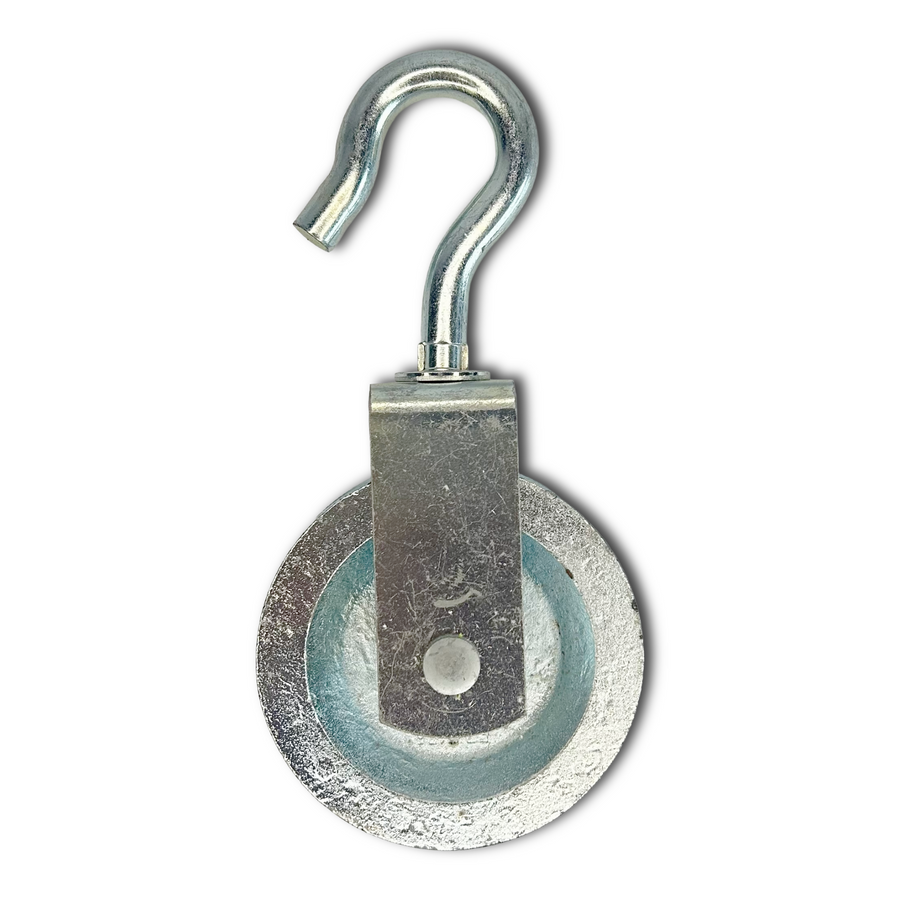

Steel or Galvanised Cast Iron Pulley with Rotating Hook for Fibre Rope Type ETT-198 : 15kg to 70kg

SKU 155-20-1
Availability:
9 in stock, ready to be shipped
Availability:
11 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
9 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Original price $14.00 - Original price $53.00
Original price
$14.00
$14.00 - $53.00
Current price $14.00
SELECTED:: 15 kg - Pulley Ø30mm - Max rope Ø5mm

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Steel or Galvanised Cast Iron Pulley with Rotating Hook Type ETT-198 : 15kg to 70kg

  • Steel or galvanised cast iron single pulley / sheave with rotating hook
  • Plain bearing
  • Material finish - steel for pulley diameter sizes 30, 40, 50 and 60mm, galvanised cast iron for diameter sizes 80 and 100mm
  • Capacities available from 15kg through to 70kg
  • To suit 5mm through to 16mm rope (see specification PDF for full details)
  • For use with hemp and synthetic fibre ropes
  • SWISS MANUFACTURED

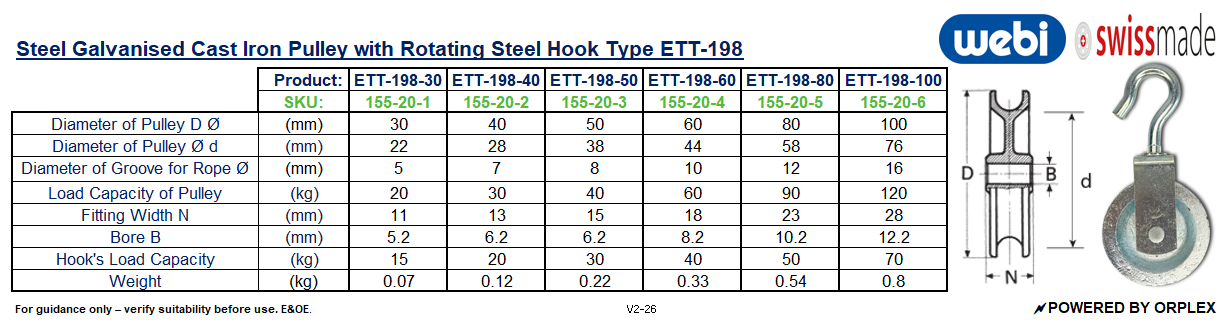

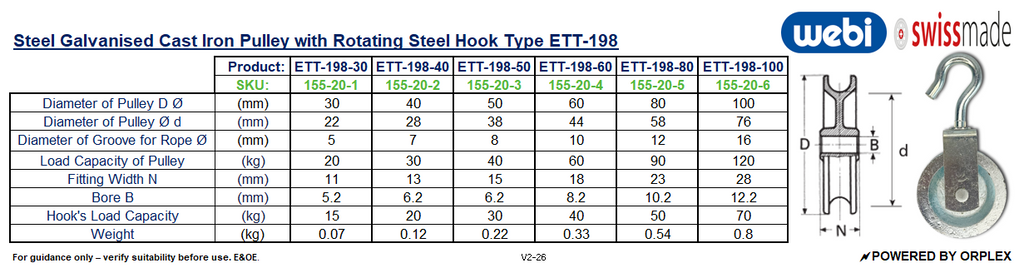

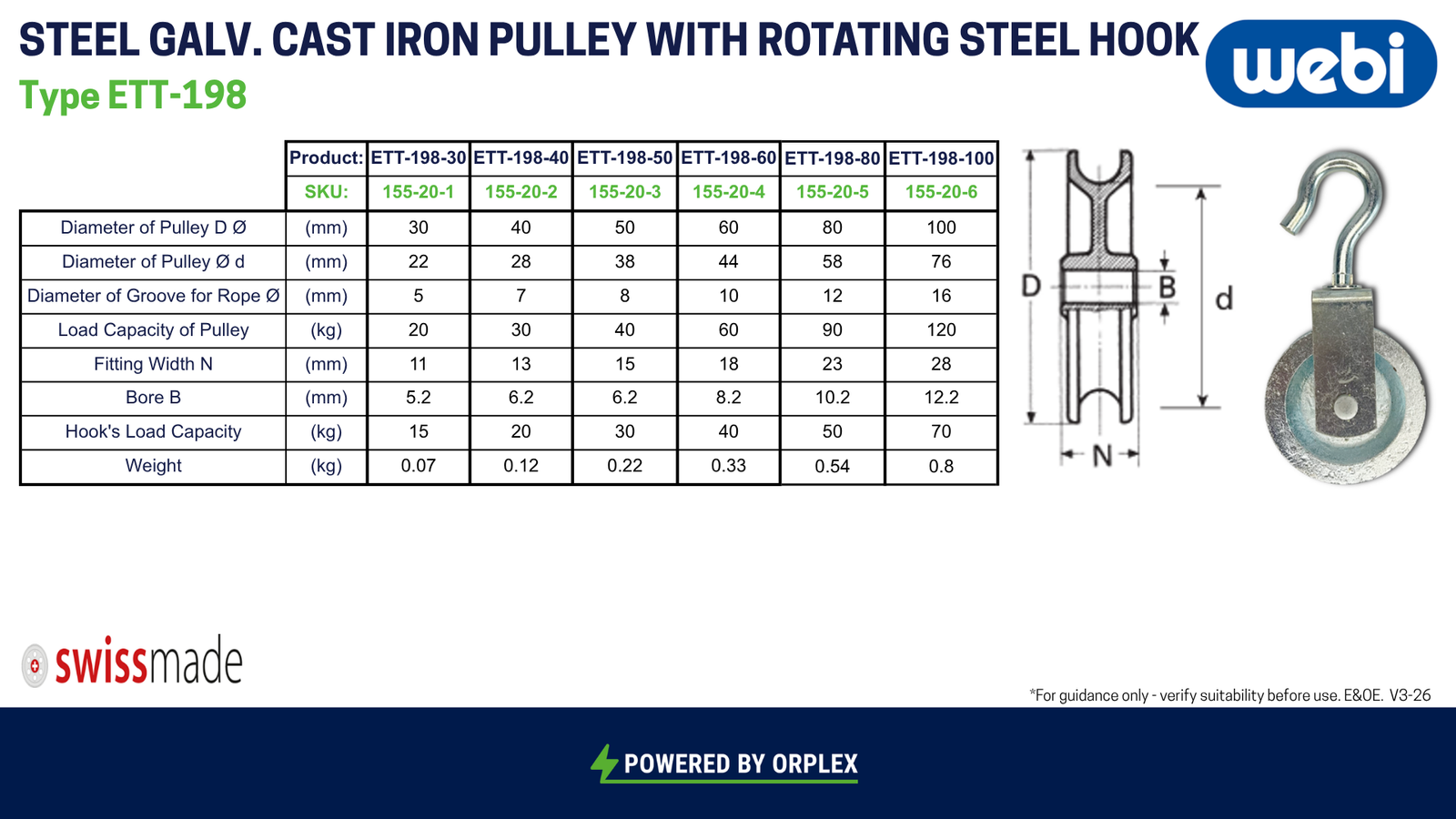

Spec

Model Max Capacity Pulley Diameter Max Rope Diameter
155-20-1 15 kg 30 mm 5 mm
155-20-2 20 kg 40 mm 7 mm
155-20-3 30 kg 50 mm 8 mm
155-20-4 40 kg 60 mm 10 mm
155-20-5 50 kg 80 mm 12 mm
155-20-6 70 kg 100 mm 16 mm

    Technical Info

    PulleyPulley Cat 2018

    PulleyEtter 198 Pulley Data Sheet
