Stainless Steel Load Rated Screw Collar Pin Dee Shackle

Stainless Steel Load Rated Screw Collar Pin Dee Shackle

by GT
SKU 286-1204-1
Availability:
5 in stock, ready to be shipped
Availability:
7 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Save 16% Save 12%
£9.54
£9.54 - £135.16
£9.54
£8.40
£8.40 - £114.00
£8.40

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

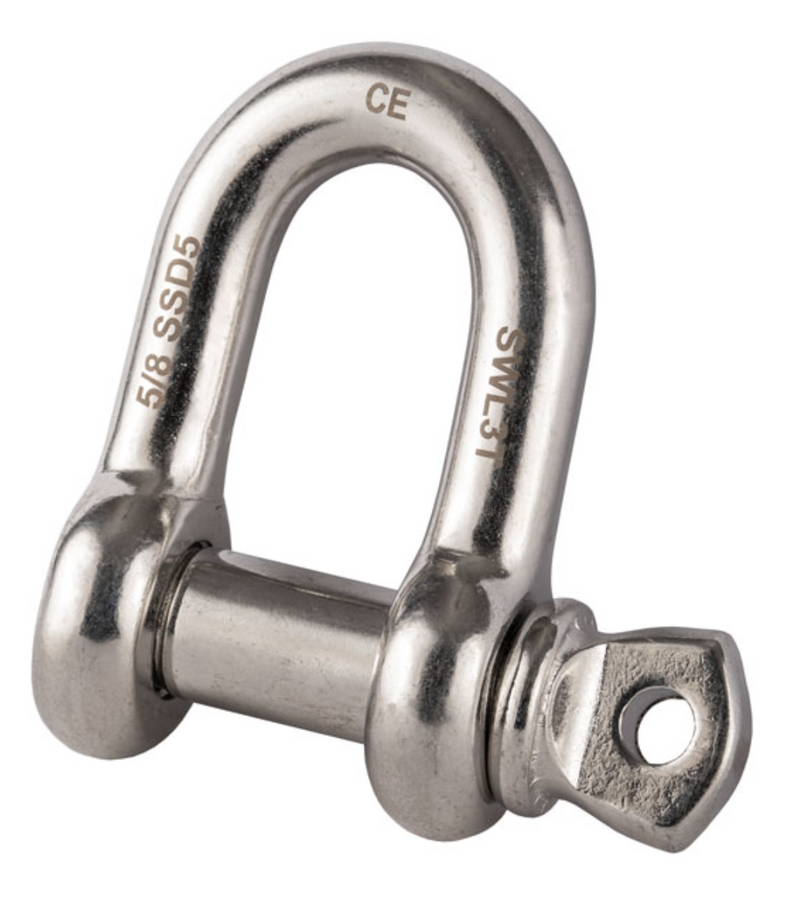

Stainless Steel Load Rated Screw Collar Pin Dee Shackle

  • AISI 316 stainless steel.
  • Polished finish.
  • Marked with CE, W.L.L, size and traceability code.
  • Certification available

      Spec

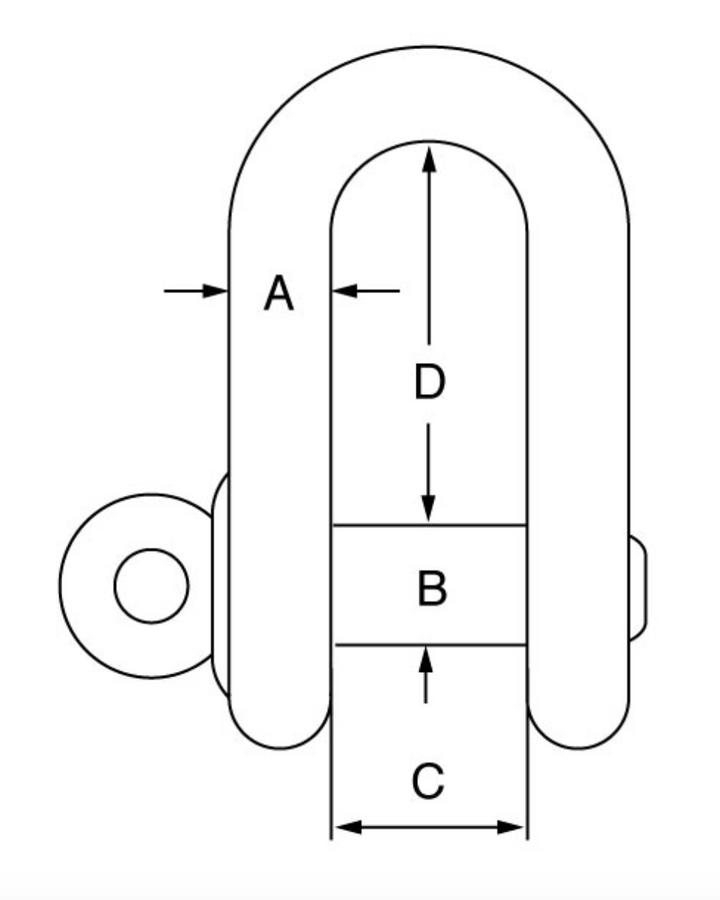

      SKU W.L.L. A B C D Weight
      t inch inch mm mm kgs
      286-1204-1 0.33 3/16 1/4 9.7 18 0.02
      286-1204-2 0.5 1/4 5/16 11.9 22.4 0.04
      286-1204-3 0.75 5/16 3/8 13.5 26.2 0.07
      286-1204-4 1.0 3/8 7/16 16.8 31.8 0.13
      286-1204-5 2.0 1/2 5/8 20.6 41.4 0.28
      286-1204-6 3.0 5/8 3/4 26.9 50.8 0.55
      286-1204-7 4.0 3/4 7/8 31.8 60.5 0.93
      286-1204-8 5.0 7/8 1 36.6 71.4 1.38
      286-1204-9 6.0 1 1 1/8 42.9 81 1.99





      Downloads

        Duct rod data sheetProduct data sheet
