Single Swing Side Pulley Sheave 100mm Diameter (Snatch Block for 12mm Rope)

SKU 167-14-2
Availability:
Only 1 left!
Original price $119.00 - Original price $119.00
Original price
$119.00
$119.00 - $119.00
Current price $119.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

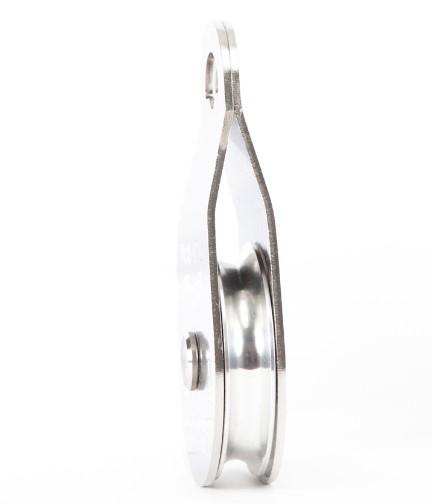

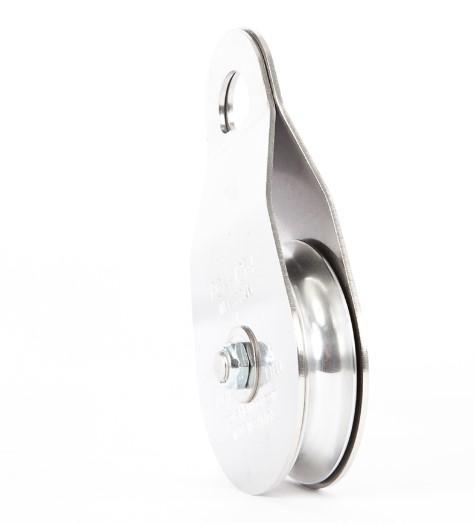

Single Swing Side Pulley Sheave 100mm

This stainless steel swing side snatch block features a lightweight 100 mm diameter deep groove aluminum sheave, with stainless steel plates that swing open to install rope.

Sintered bronze bushing on stainless steel shaft provides 98% efficiency.

It is useful to deviate the winching direction or for doubling the pulling force when the load is in place.

Use the steel locking carabiners to anchor to a polyester sling.

Ideal rope diameter: 12 mm.

SPECIFICATIONS

Minimum Breaking Load (metric) : 90 kN (9185 kg)
Working Load Limit (metric) : N/A
Material : Sides: Stainless steel. Sheave: Aluminum

WEIGHT & DIMENSIONS

Weight (metric) : 1,24 kg
Diameter (metric) : 100 mm
Length (metric) : 27 cm
Width (metric) : 14 cm
Height (metric) : 14 cm

ROPE

Minimum diameter (metric) : 6 mm
Maximum diameter (metric) : 12 mm

ADDITIONAL INFORMATION

Additional Information : Not designed for steel cable.
Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
