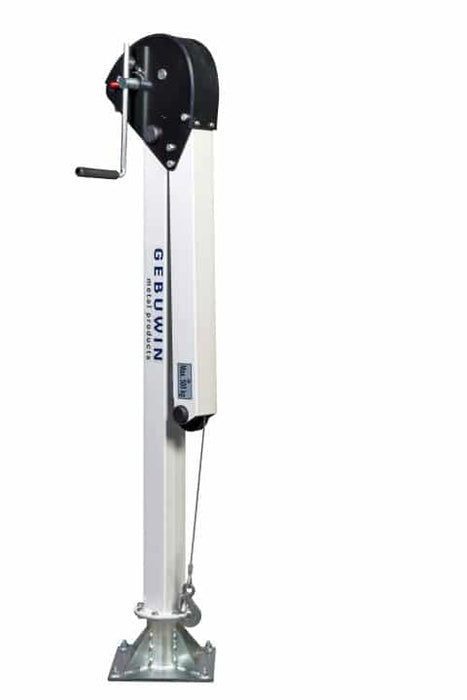

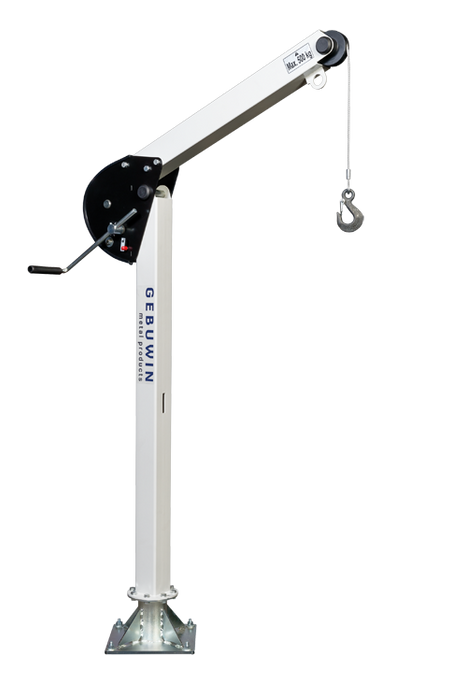

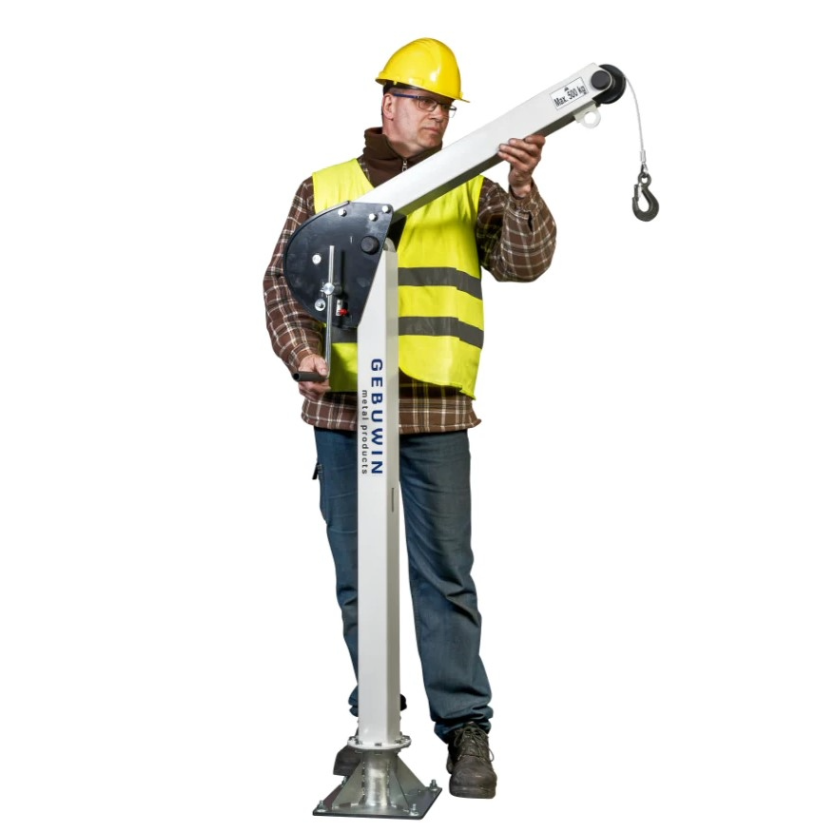

SD500 GR - 500kg Swivel Hoisting Davit (Built in winch with 13m Cable)

by Gebuwin
SKU 156-22-4
Availability:
Out of stock
Availability:
In stock
Original price £1,816.92 - Original price £2,224.80
Original price
£2,224.80
£1,816.92 - £2,224.80
Current price £2,224.80

Gebuwin - Swivel Hoisting Davit - Additions

Palletised Deliver Service

These goods will be delivered by our dedicated Palletised carrier service.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Description

500kg Swivel Hoisting Davit with Painted Finish

The SD500 GR swivel hoisting davit lifts up to 500kg with a standard GR painted finish in RAL 7035 grey, the value option for general lifting on location. The built-in winch and 13m cable make it compact, portable and low maintenance.

Key Features

  • Capacity 500kg on the first layer and 268kg on the top layer

  • Standard GR painted finish, 60 to 80 micron in one layer to DIN/ISO 12944, C1M, RAL 7035 grey

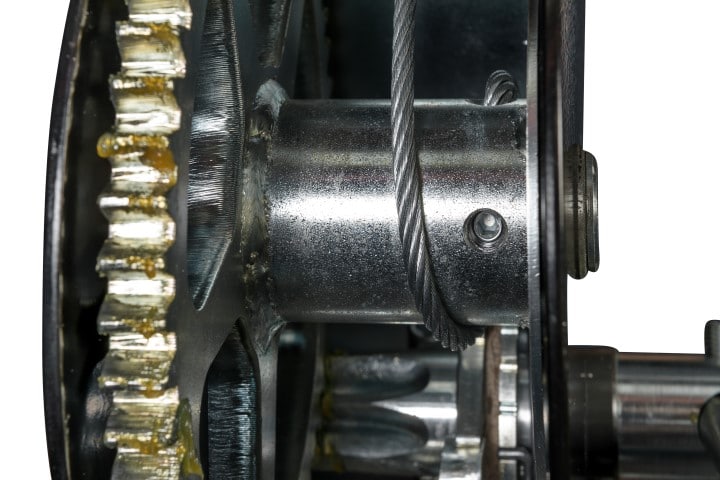

  • Built-in winch supplied with 13m wire rope (5mm diameter) and hook

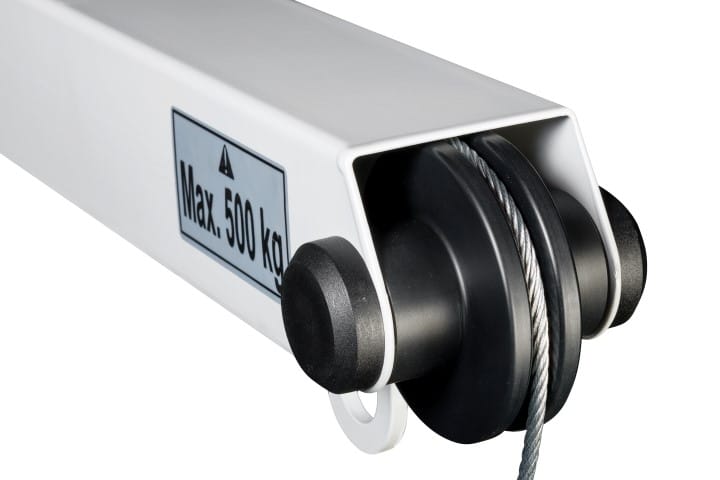

  • Reach arm of 60cm and lifting speed of 1.2 m/min

  • 360 degree rotation on ball bearings

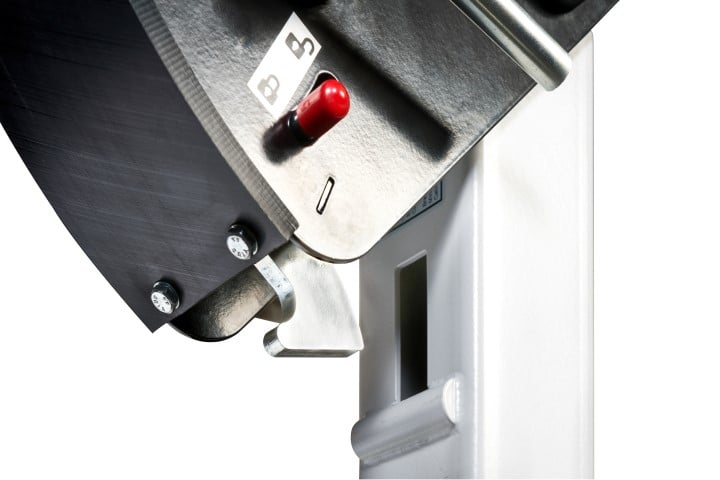

  • Load pressure brake with double ratchet system holds the load in any position

  • Ready to use in 5 seconds, maintenance free and compliant with EN13157

  • Weight of swivel davit 30kg

Options and Related Products

Select the davit only (SKU 156-22-2) or the davit with zinc socket base (SKU 156-22-4). See other capacities and finishes in our hoisting davits range.

SKU 156-22-2 is for the Swivel Davit Only

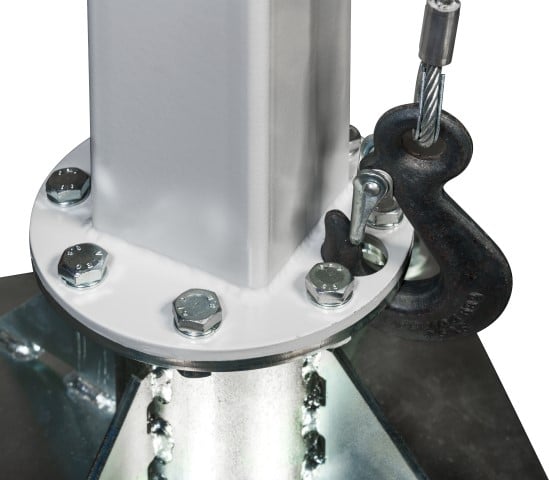

SKU 156-22-4 is for the Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Reach arm

60cm

Options

ATEX certified

Capacity 1st layer

500 kg

Capacity top layer

268 kg

Lifting speed

1.2 m/min (4 ft/min)

Rope diameter-Ø

5 mm

Rope storage top layer

13 meter

Lift per crank rotation

20 mm

Crank effort at full load

10 daN

Weight Swivel davit

30 kg

Weight floor-socket

8,9 kg

Type name

SD500

Downloads

Duct rod data sheetProduct data sheet
