SD250 GR - 250kg Swivel Hoisting Davit (Built in winch with 13m Cable)

by Gebuwin
SKU 156-22-10
Availability:
In stock
Availability:
In stock
Original price £1,779.84 - Original price £2,200.08
Original price
£1,779.84
£1,779.84 - £2,200.08
Current price £1,779.84

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

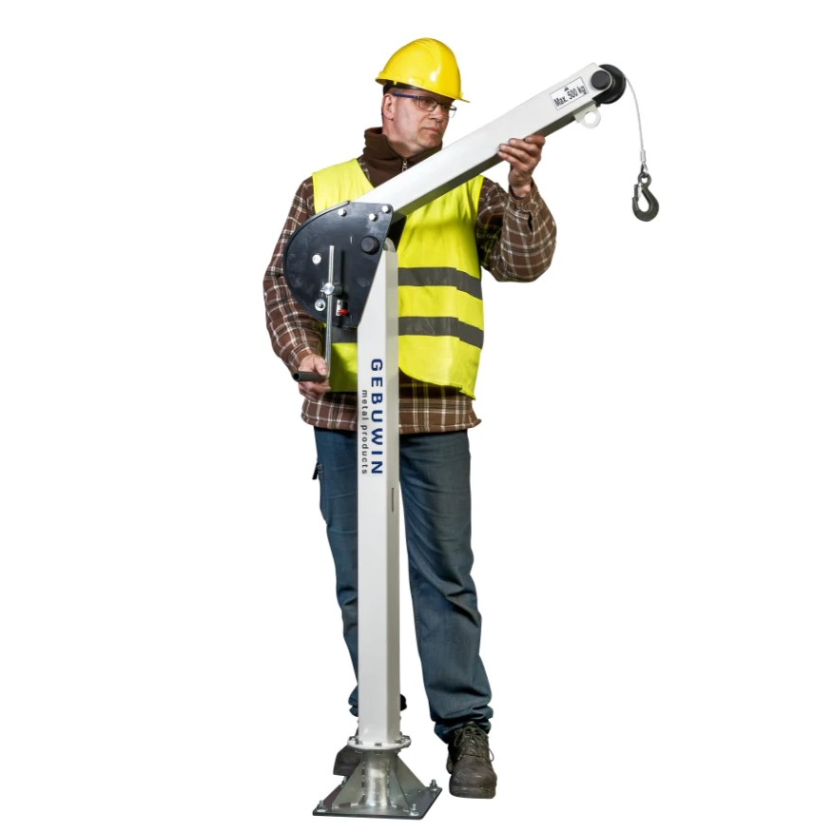

Swivel Hoisting Davit 250kg (SD250 GR)

The SD250 GR is a 250kg swivel hoisting davit with a built-in winch and a 13 metre, 5mm wire rope with hook, ready to lift or lower heavier loads on location in seconds. The standard painted GR finish suits general indoor and low corrosivity sites.

Painted Finish for General Lifting

  • Standard painted GR finish, 60 to 80 micron in one layer, to DIN ISO 12944 C1M, RAL 7035 grey

  • Built-in winch with load pressure brake and double ratchet for a safe stable hold in any position

  • Folds and rotates a full 360 degrees on ball bearings for easy positioning

  • Adjustable crank with ergonomic grip so lifting speed can be set to the job

SD250 GR Specifications

  • Capacity: 250kg on first and top layer

  • Cable: 13 metre 5mm wire rope with hook

  • Crank effort at full load: 10 daN, lift 20mm per crank rotation

  • Davit weight: 30kg, maintenance free, compliant with EN13157, ATEX certified option

See the full swivel hoisting davit range for the 125kg models and corrosion resistant zinc and stainless finishes.

SKU 156-22-10 is for the SD250 GR Swivel Davit Only

SKU 156-22-12 is for the SD250 GR Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Tech Spec

Options

ATEX certified

Capacity 1st layer

250 kg

Capacity top layer

250 kg

Rope diameter-Ø

5 mm

Rope storage top layer

13 meter

Lift per crank rotation

20 mm

Crank effort at full load

10 daN

Weight Swivel davit

30 kg

Weight floor-socket

8,9

Type name

SD250

Tech Area

Duct rod data sheetProduct data sheet
