SD125 EV - 125kg Zinc Swivel Hoisting Davit (Built in winch with 9m Cable)

by Gebuwin
SKU 156-22-7
Availability:
In stock
Availability:
In stock
Original price £1,730.40 - Original price £2,138.28
Original price
£1,730.40
£1,730.40 - £2,138.28
Current price £1,730.40

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Swivel Hoisting Davit 125kg (SD125 EV Zinc)

The SD125 EV is a 125kg swivel hoisting davit with a built-in winch and a 9 metre, 5mm wire rope with hook. Its zinc EV finish adds corrosion resistance for fresh water and damp working sites.

Zinc Finish for Fresh Water Use

  • Zinc painted EV finish rated by the maker for use near fresh water

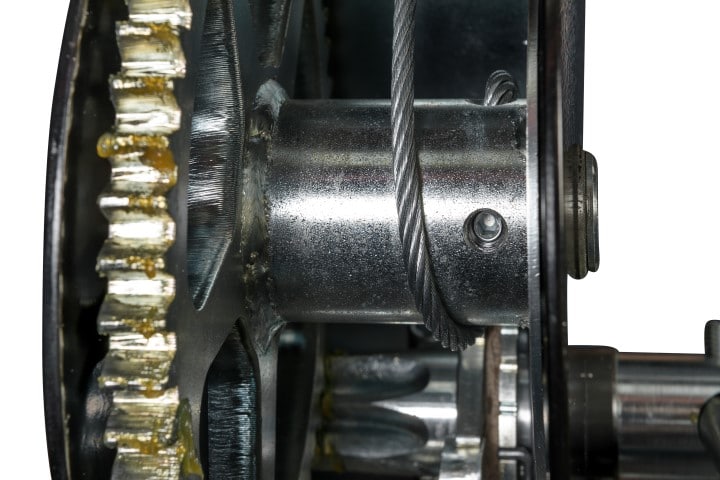

  • Built-in winch with load pressure brake and double ratchet for a safe stable hold in any position

  • Folds and rotates a full 360 degrees on ball bearings for easy positioning

  • Adjustable crank with ergonomic grip so lifting speed can be set to the job

SD125 EV Specifications

  • Capacity: 125kg on first and top layer

  • Cable: 9 metre 5mm wire rope with hook

  • Lifting speed: 1.2m per minute, reach arm 60cm, 80cm and 100cm

  • Davit weight: 30kg, maintenance free, compliant with EN13157, ATEX certified option

Browse the full swivel hoisting davit range for standard painted and stainless steel finishes.

SKU 156-22-7 is for the Zinc SD125 EV Swivel Davit Only

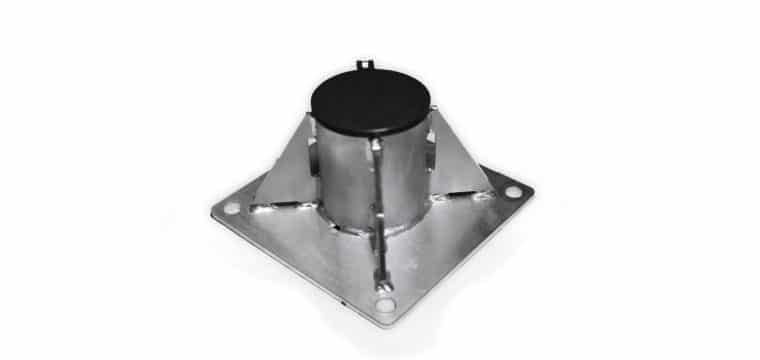

SKU 156-22-9 is for the Zinc SD125 EV Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Reach arm

60cm, 80cm, 100cm

Use near Salt or Fresh Water

Fresh Water

Options

ATEX certified

Capacity 1st layer

125 kg

Capacity top layer

125 kg

Lifting speed

1.2m/min (4 ft/min)

Rope diameter-Ø

5 mm

Rope storage top layer

13 meter

Lift per crank rotation

20 mm

Crank effort at full load

6 daN

Weight Swivel davit

30 kg

Weight floor-socket

8,9 kg

Type name

SD125 EV
