SD125 - 125kg Swivel Hoisting Davit (Built in winch with 9m Cable)

SD125 - 125kg Swivel Hoisting Davit (Built in winch with 9m Cable)

by Gebuwin
SKU 156-22-6
Availability:
In stock
Availability:
In stock
£1,560.00 - £1,956.00
£1,560.00
£1,560.00 - £1,956.00
£1,560.00

Gebuwin - Swivel Hoisting Davit - Additions

Palletised Deliver Service

These goods will be delivered by our dedicated Palletised carrier service.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

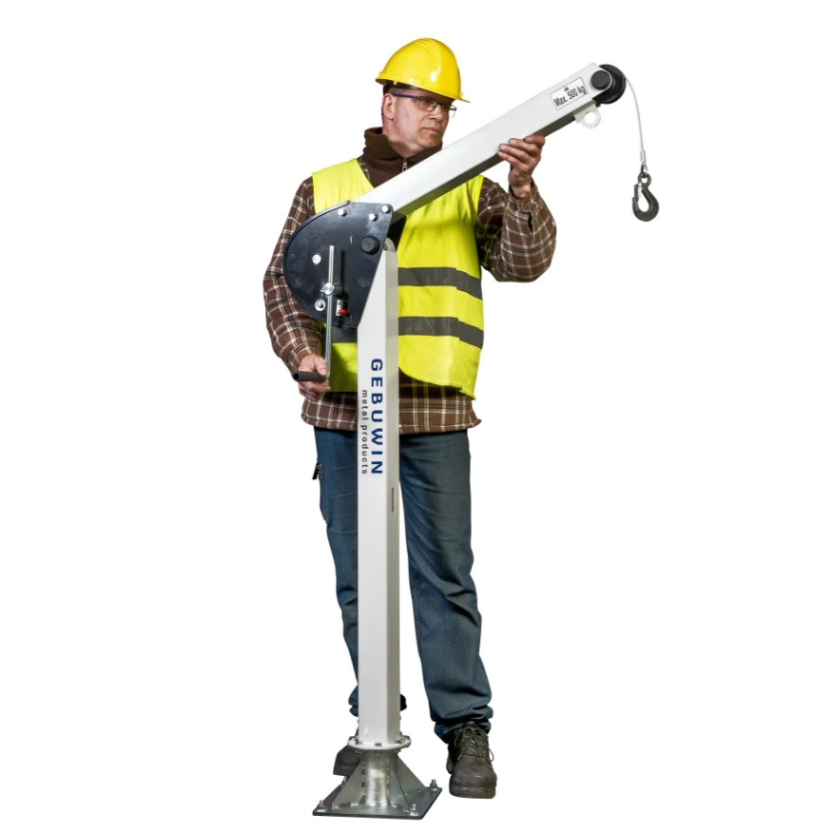

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way
  • Robust and safe lifting davit crane in compliance with EN13157
  • Ready to use in 5 seconds
  • Integrated winch and cable in an ergonomic modern design
  • Easy to transport
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Possible to rotate 360° due to the use of ball bearings
  • Adjustable crank, with ergonomic grip
  • Maintenance free
  • The davit includes a 9 metre length wire rope (5mm diameter) with hook
  • Paint thickness on standard painted model is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
  • For enhanced corrosion resistant models with either a zinc or stainless steel finish, please contact our sales team sales@winchshop.co.uk

SKU 156-22-6 is for the Swivel Davit Only

SKU 156-22-8 is for the Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Options

ATEX certified
Capacity 1st layer

125 kg
Capacity top layer

125 kg
Rope diameter-Ø

5 mm
Rope storage top layer

13 meter
Lift per crank rotation

20 mm
Crank effort at full load

10 daN
Weight Swivel davit

30 kg
Weight floor-socket

8,9
Type name

SD125



Downloads

Duct rod data sheetProduct data sheet


Video

Description

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way
  • Robust and safe lifting davit crane in compliance with EN13157
  • Ready to use in 5 seconds
  • Integrated winch and cable in an ergonomic modern design
  • Easy to transport
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Possible to rotate 360° due to the use of ball bearings
  • Adjustable crank, with ergonomic grip
  • Maintenance free
  • The davit includes a 9 metre length wire rope (5mm diameter) with hook
  • Paint thickness on standard painted model is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
  • For enhanced corrosion resistant models with either a zinc or stainless steel finish, please contact our sales team sales@winchshop.co.uk

SKU 156-22-6 is for the Swivel Davit Only

SKU 156-22-8 is for the Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Options

ATEX certified
Capacity 1st layer

125 kg
Capacity top layer

125 kg
Rope diameter-Ø

5 mm
Rope storage top layer

13 meter
Lift per crank rotation

20 mm
Crank effort at full load

10 daN
Weight Swivel davit

30 kg
Weight floor-socket

8,9
Type name

SD125



Downloads

Duct rod data sheetProduct data sheet


Video
