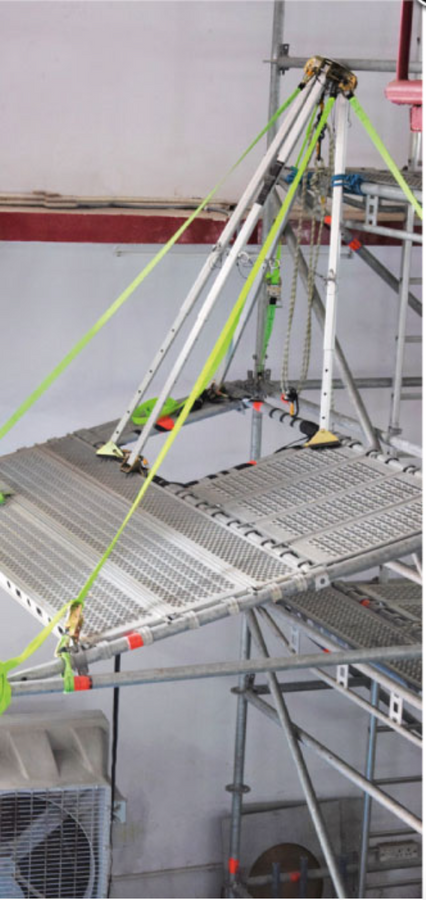

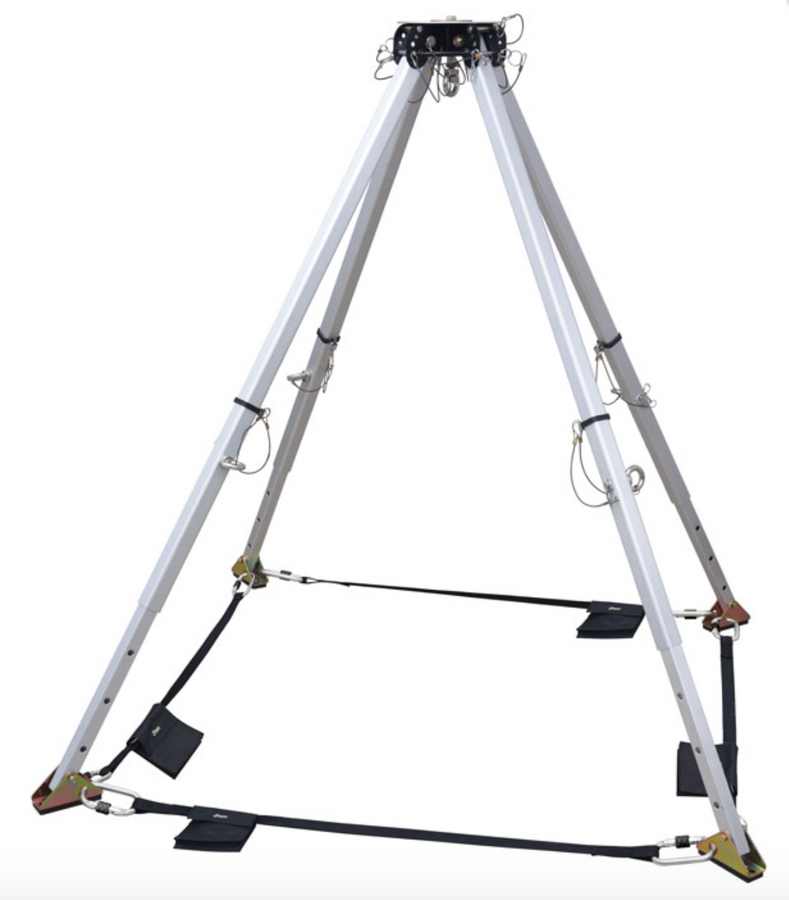

QuadPod for cliff top or mountain rescue and confined space rescue.
- Quadpod is a new lightweight, versatile and durable system that gives the user the possibility to safely perform the rescue the under minimum time.
- Thanks to it’s 4 multi-positioning telescopic legs (1.21m to 1.75m), Quadpod is an excellent tool for inclined planes rescue (such as cliff top or mountains) and confined space rescue.
- It can be used with 2, 3 or 4 legs with the help of proper rigging webbings (included).
- Can be used by 2 people at the same time.
-
Adjustable height: 1.15 mtr to 2.15 mtr.
-
Tripod Footprint: 1.08 mtr to 1.62 mtr.
-
Footprint Between Tripods: 1.8 mtr to 4.2 mtr.
-
Max Load Capacity: 500 KG under head / 250 KG on leg.
-
Breaking Strength: 23 kN.
-
Resistance: 13 kN.
-
Conformity: BS EN 795 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808.
-
Material:
