Pfaff ZWW-L 600kg Rack & Pinion Jack – 400mm Lift

SKU 601-27-2
Availability:
Out of stock
Sold out
Original price £490.02 - Original price £490.02
Original price
£490.02
£490.02 - £490.02
Current price £490.02

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

🚚 Order within the next 2 hours, 15 minutes for delivery by 08 Dec, 2025.

Description

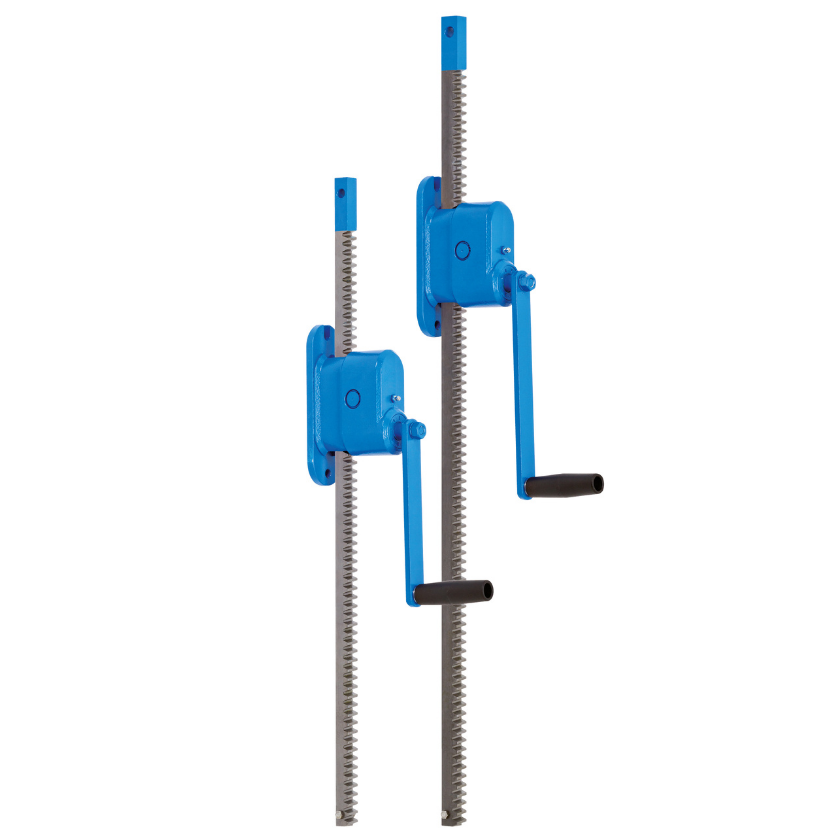

Pfaff ZWW-L 600/400 Rack & Pinion Jack – 600kg Capacity, 400mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

  • Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
  • Solid steel rack with additional bore hole for fastening of the load.
  • Low wear owing to hardened gearing parts and precisely machined teething.
  • Up to 1200 kg lifting load for pushing or pulling loads are equal.
  • At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
  • Rigid wall mounting.

Optional

  • Different rack length on request.
  • Crank with folding handle for ZWW-L.
  • ZWW-L with capacities of 600kg and 1200kg are also available in explosion-proof design.

Atex Version Available

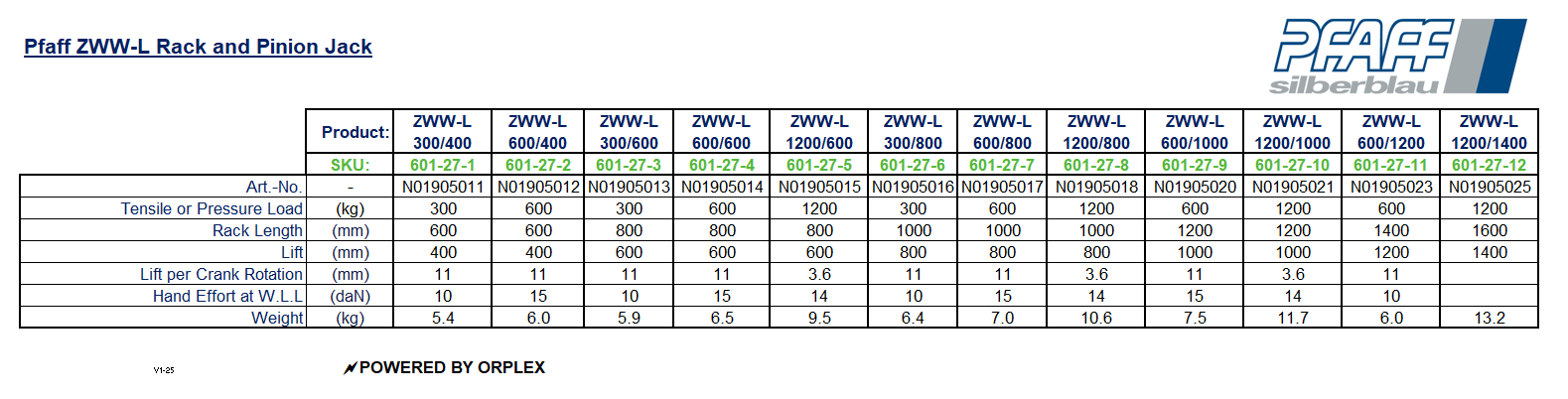

Specification

Specification

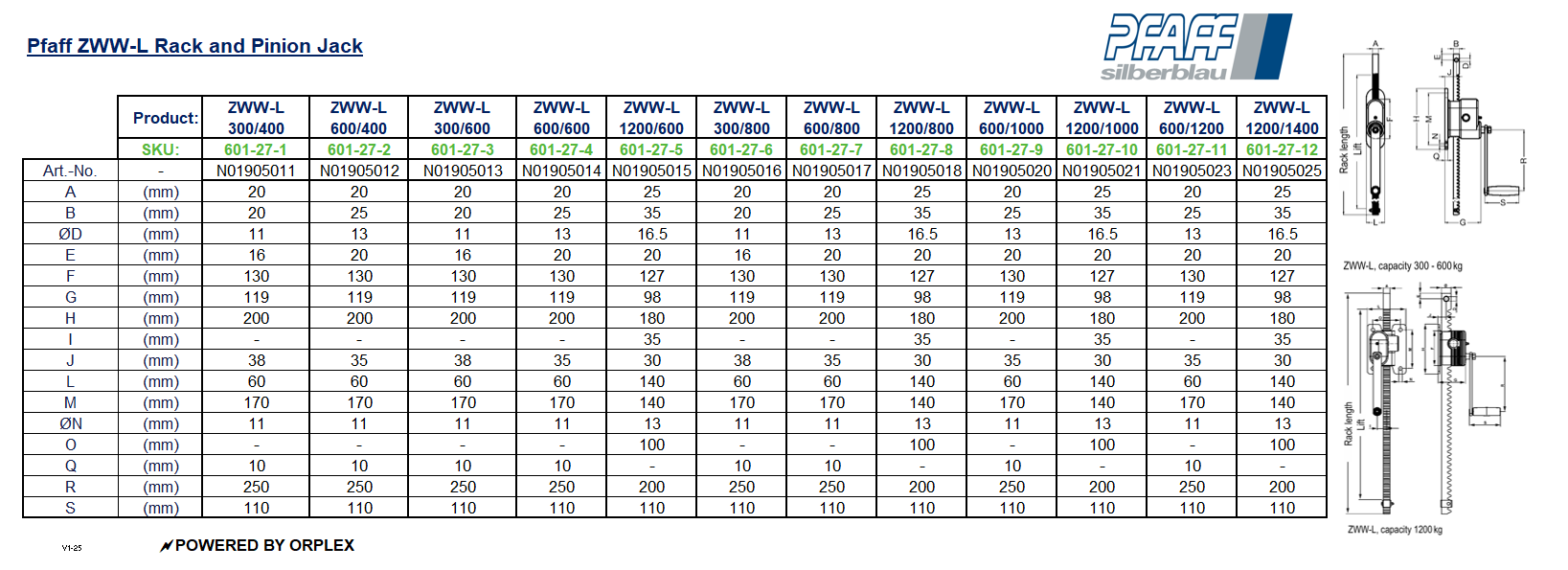

Dimensions
