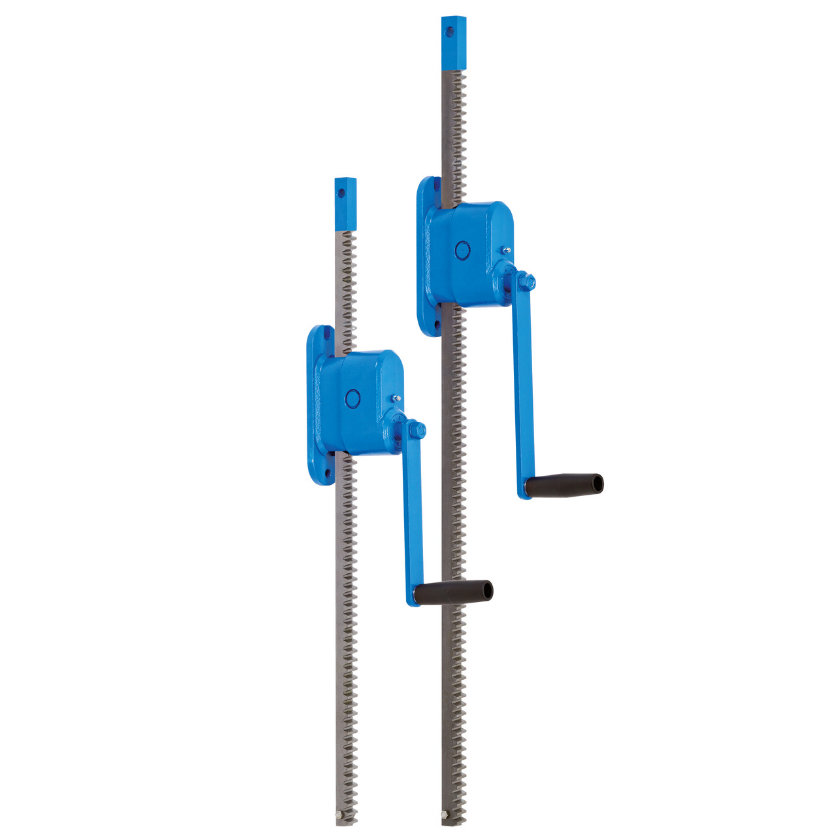

Pfaff ZWW-L 600/1200 Rack & Pinion Jack – 600kg Capacity, 1200mm Lift
Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.
Features
- Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
- Solid steel rack with additional bore hole for fastening of the load.
- Low wear owing to hardened gearing parts and precisely machined teething.
- Up to 1200 kg lifting load for pushing or pulling loads are equal.
- At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
- Rigid wall mounting.
Optional
- Different rack length on request.
- Crank with folding handle for ZWW-L.
- ZWW-L with capacities of 600kg and 1200kg are also available in explosion-proof design.
![]()
Atex Version Available
