Pfaff ZWW-L 1200kg Rack & Pinion Jack

Pfaff ZWW-L 1200kg Rack & Pinion Jack – 600mm Lift

by Pfaff-silberblau
£734.21 - £734.21
£734.21
£734.21 - £734.21
£734.21

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

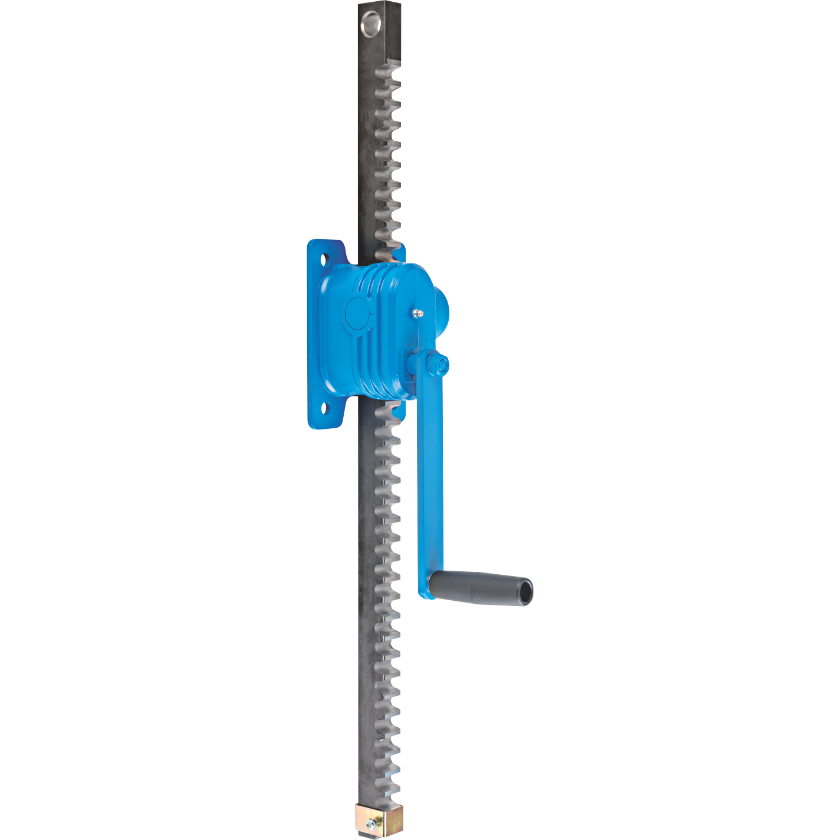

Pfaff ZWW-L 1200/600 Rack & Pinion Jack – 1200kg Capacity, 600mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

  • Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
  • Solid steel rack with additional bore hole for fastening of the load.
  • Low wear owing to hardened gearing parts and precisely machined teething.
  • Up to 1200 kg lifting load for pushing or pulling loads are equal.
  • At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
  • Rigid wall mounting.

Optional

  • Different rack length on request.
  • Crank with folding handle for ZWW-L.
  • ZWW-L with capacities of 600kg and 1200kg are also available in explosion-proof design.

Atex Version Available
